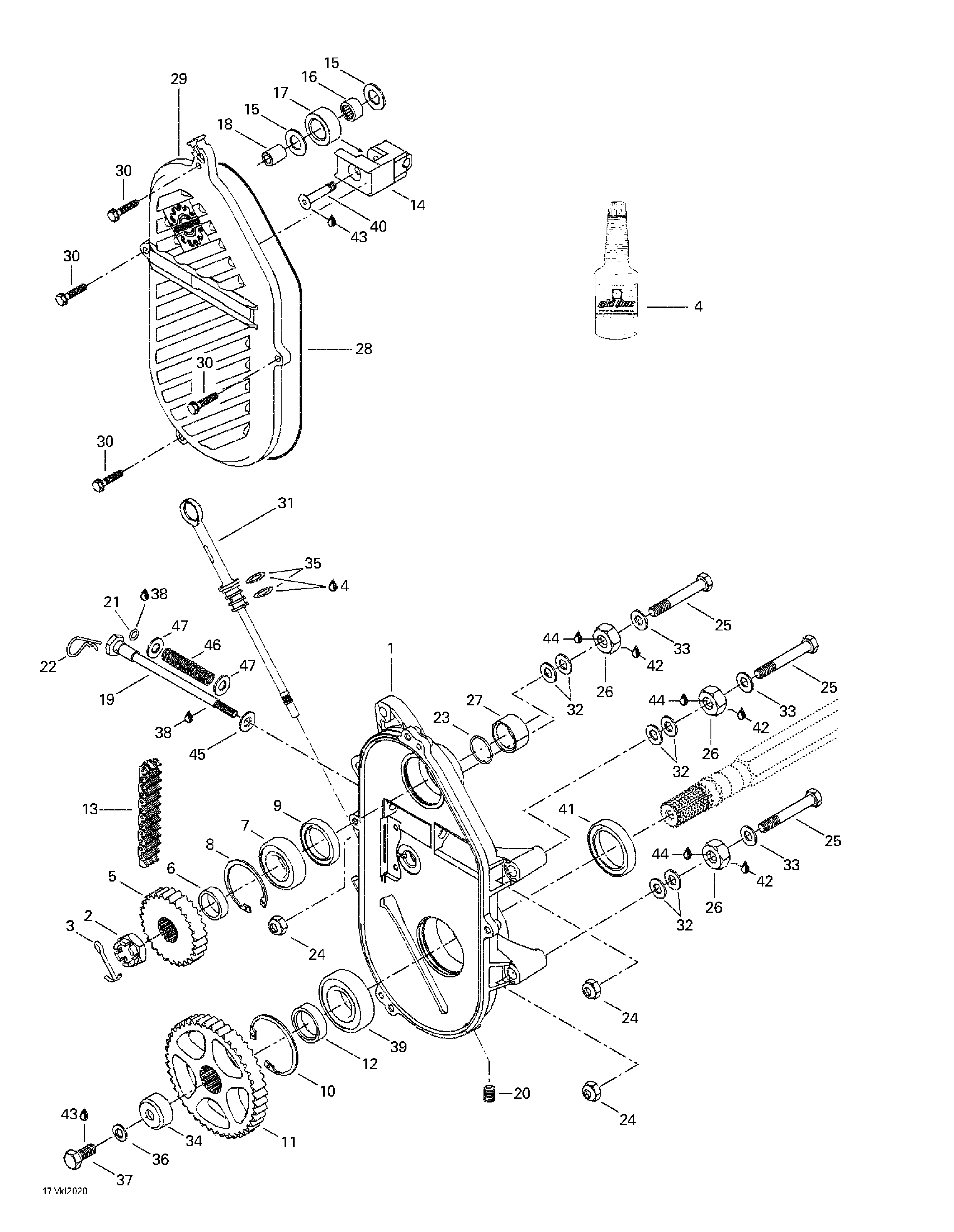

05- Chaincase для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1504151938 ChaincaseChaincase
-
2250000012 Castellated Nut M20Castellated Nut M20
-
3371006300 Cotter PinCotter Pin
-
4413803300 Synthetic Chaincase Oil. (12 x 355 ml)Synthetic Chaincase Oil. (12 x 355 ml)
-
5504151913 21 Teeth Sprocket (Large)21 Teeth Sprocket (Large)
-
6504093400 ShimShim
-
7405404400 Ball Bearing 6205Ball Bearing 6205
-
8371901700 Retaining RingRetaining Ring
-
9415049300 SealSeal
-
10415064300 CirclipCirclip
-
11504148500 43 Teeth Sprocket Large43 Teeth Sprocket Large
-
12501021800 Inner ShimInner Shim
-
13504151910 Drive Chain Large, (74 Links)Drive Chain Large, (74 Links)
-
14504151940 Chain TensionerChain Tensioner
-
15504080300 WasherWasher
-
16405403000 Needle BearingNeedle Bearing
-
17414531300 RollerRoller
-
18504080200 BushingBushing
-
19504151946 Adjusting ScrewAdjusting Screw
-
20504151921 Plug 1/8-27Plug 1/8-27
-
21504151954 O-RingO-Ring
-
22414575600 Hair PinHair Pin
-
23414876700 O-RingO-Ring
-
24233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
25207107544 Hex. Screw M10 x 75Hex. Screw M10 x 75
-
26504083800 SpacerSpacer
-
27507031500 SpacerSpacer
-
28415046400 O-RingO-Ring
-
29080044000 Chaincase CoverChaincase Cover
-
30210263080 Taptite Hex. Screw M6 x 30Taptite Hex. Screw M6 x 30
-
31504151703 Filler CapFiller Cap
-
32504073700 WasherWasher
-
33503183800 Flat Washer 10 mmFlat Washer 10 mm
-
34501022400 CapCap
-
35414969400 O-RingO-Ring
-
36234100602 Lock Washer 10 mmLock Washer 10 mm
-
37207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
38219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
39405408500 Ball BearingBall Bearing
-
40732601144 ScrewScrew
-
41504151918 Oil SealOil Seal
-
42293800023 Loctite 767 Antiseize Lubricant, 454 gLoctite 767 Antiseize Lubricant, 454 g
-
43293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45503189148 WasherWasher
-
46504151945 SpringSpring
-
47503125900 Hardened WasherHardened Washer
