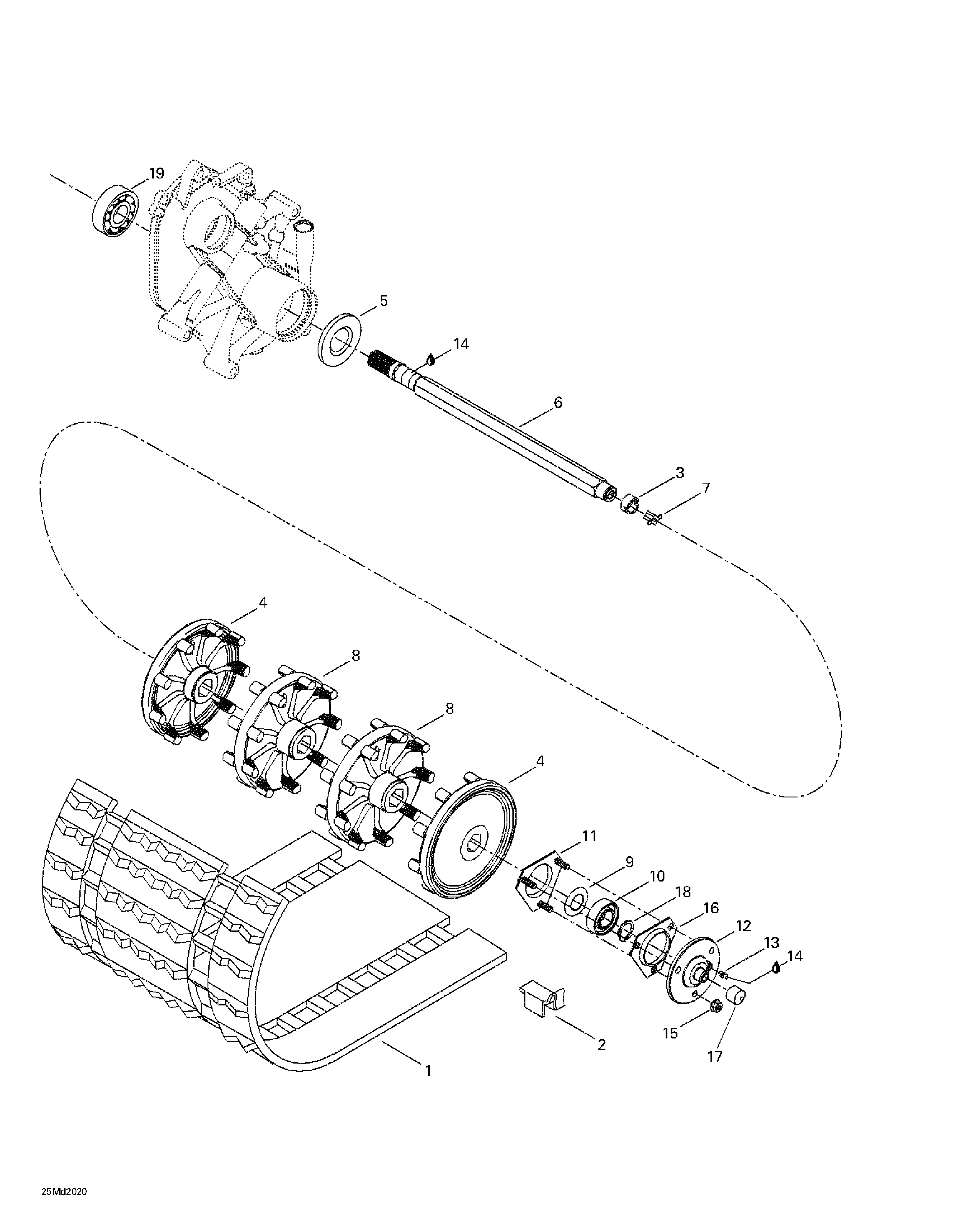

05- Drive Axle And Track для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1504151815 Track Ass'y. Includes 1 - 2.Track Ass'y. Includes 1 - 2.
-
2500003400 Guide CleatGuide Cleat
-
3572097500 AdaptorAdaptor
-
4504151834 Half Sprocket 9-TeethHalf Sprocket 9-Teeth
-
5504151918 Oil SealOil Seal
-
6504151792 Drive AxleDrive Axle
-
7572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
8504151803 Sprocket 9-TeethSprocket 9-Teeth
-
9501017400 Ball Bearing ProtectorBall Bearing Protector
-
10405408600 Ball BearingBall Bearing
-
11504151860 Bearing HousingBearing Housing
-
12504151836 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
13408200700 Grease FittingGrease Fitting
-
14219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
15233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
16501025000 FlangeFlange
-
17504151825 CapCap
-
18371910200 CirclipCirclip
-
19405408500 Ball BearingBall Bearing
