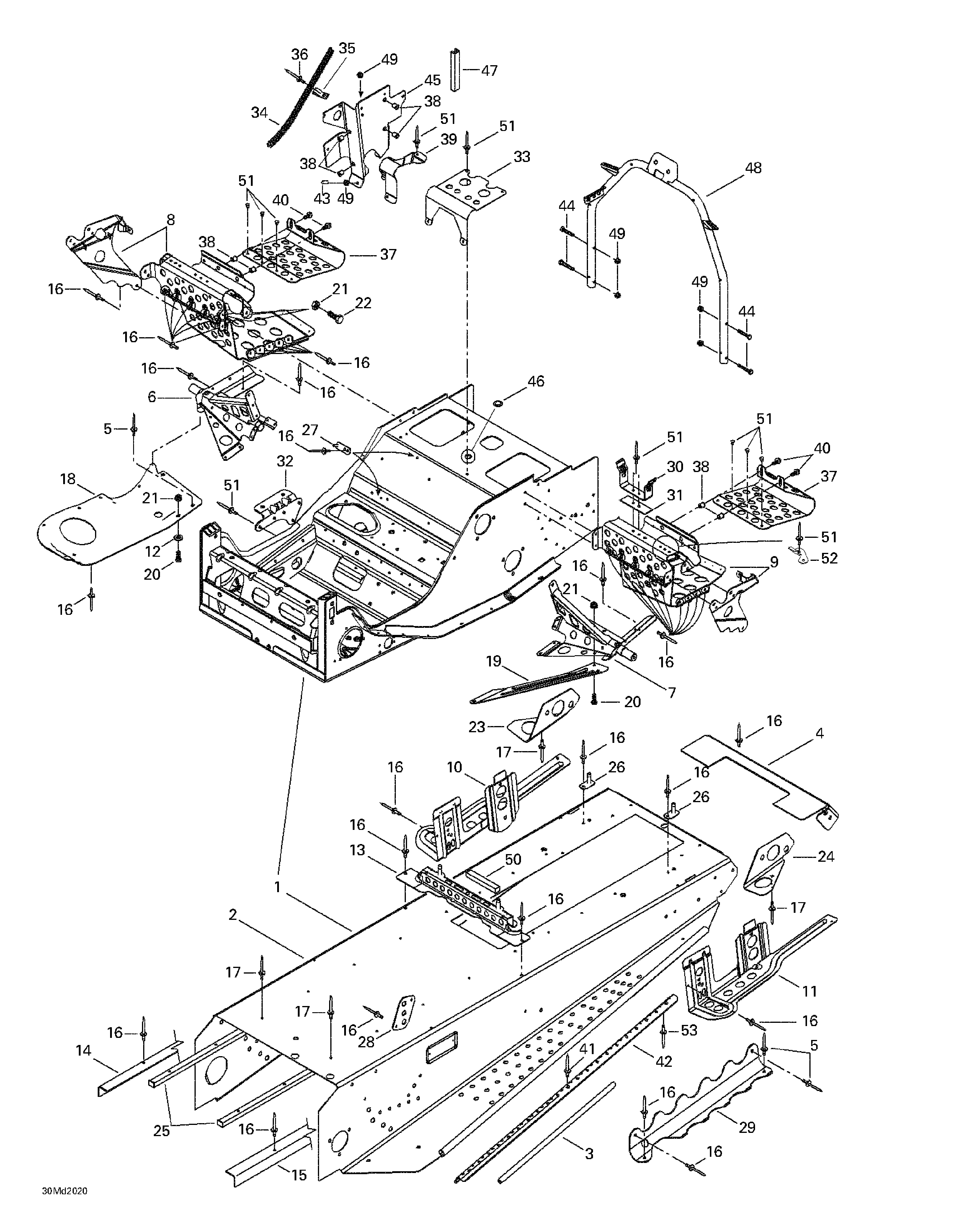

09- Frame And Accessories для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1518322124 Frame Ass'y. Includes 1 - 29. (Radiator and Radiator Protector Included)Frame Ass'y. Includes 1 - 29. (Radiator and Radiator Protector Included)
-
3518322053 Footrest ReinforcementFootrest Reinforcement
-
4518321620 Rear CapRear Cap
-
5390402300 Rivet 3/16Rivet 3/16
-
6518322037 R.H. Footrest SupportR.H. Footrest Support
-
7518322040 L.H. Footrest SupportL.H. Footrest Support
-
8518322058 R.H. Footrest Ass'yR.H. Footrest Ass'y
-
9518322062 L.H. Footrest Ass'yL.H. Footrest Ass'y
-
10518322043 R.H. Slide BracketR.H. Slide Bracket
-
11518322046 L.H. Slide BracketL.H. Slide Bracket
-
12391301700 Flat WasherFlat Washer
-
13518322049 Fuel Tank BracketFuel Tank Bracket
-
14518321561 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
15518321562 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
16390402200 Pop RivetPop Rivet
-
17390402400 Pop RivetPop Rivet
-
18518319760 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
19518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
20207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
21233251414 Elastic Flange Stop Nut M5Elastic Flange Stop Nut M5
-
22732600030 ScrewScrew
-
23518321472 R.H. Rear ReinforcementR.H. Rear Reinforcement
-
24518321473 L.H. Rear ReinforcementL.H. Rear Reinforcement
-
25518321609 Frame ProtectorFrame Protector
-
26518319730 Seat BracketSeat Bracket
-
27518319728 Double BracketDouble Bracket
-
28518201321 Reinforcement PlateReinforcement Plate
-
29518322033 R.H. Tunnel LinerR.H. Tunnel Liner
-
518322034 L.H. Tunnel LinerL.H. Tunnel Liner
-
30518202100 Pulley Guard BracketPulley Guard Bracket
-
31518207500 ReinforcementReinforcement
-
32518206300 Muffler SupportMuffler Support
-
33518310400 Air Intake SupportAir Intake Support
-
34518321569 Rope GuideRope Guide
-
35518321570 ClipClip
-
36390406500 Pop RivetPop Rivet
-
37518321602 Toe HoldToe Hold
-
38415107300 InsertInsert
-
39518319762 Hose SupportHose Support
-
40207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
41390402300 Pop RivetPop Rivet
-
42518321627 StripStrip
-
43293000025 Short CapShort Cap
-
44207663544 Hex. Flange Screw M6 x 35Hex. Flange Screw M6 x 35
-
45518322054 Electronic Module SupportElectronic Module Support
-
46414859400 CapCap
-
47271000110 TrimTrim
-
48518321957 Handle SupportHandle Support
-
49233261414 Elastic Flange Stop Nut M6Elastic Flange Stop Nut M6
-
50293200003 SealSeal
-
51390402200 Rivet 3/16Rivet 3/16
-
52518322031 Tool Kit BracketTool Kit Bracket
-
53390402400 Rivet 3/16Rivet 3/16
