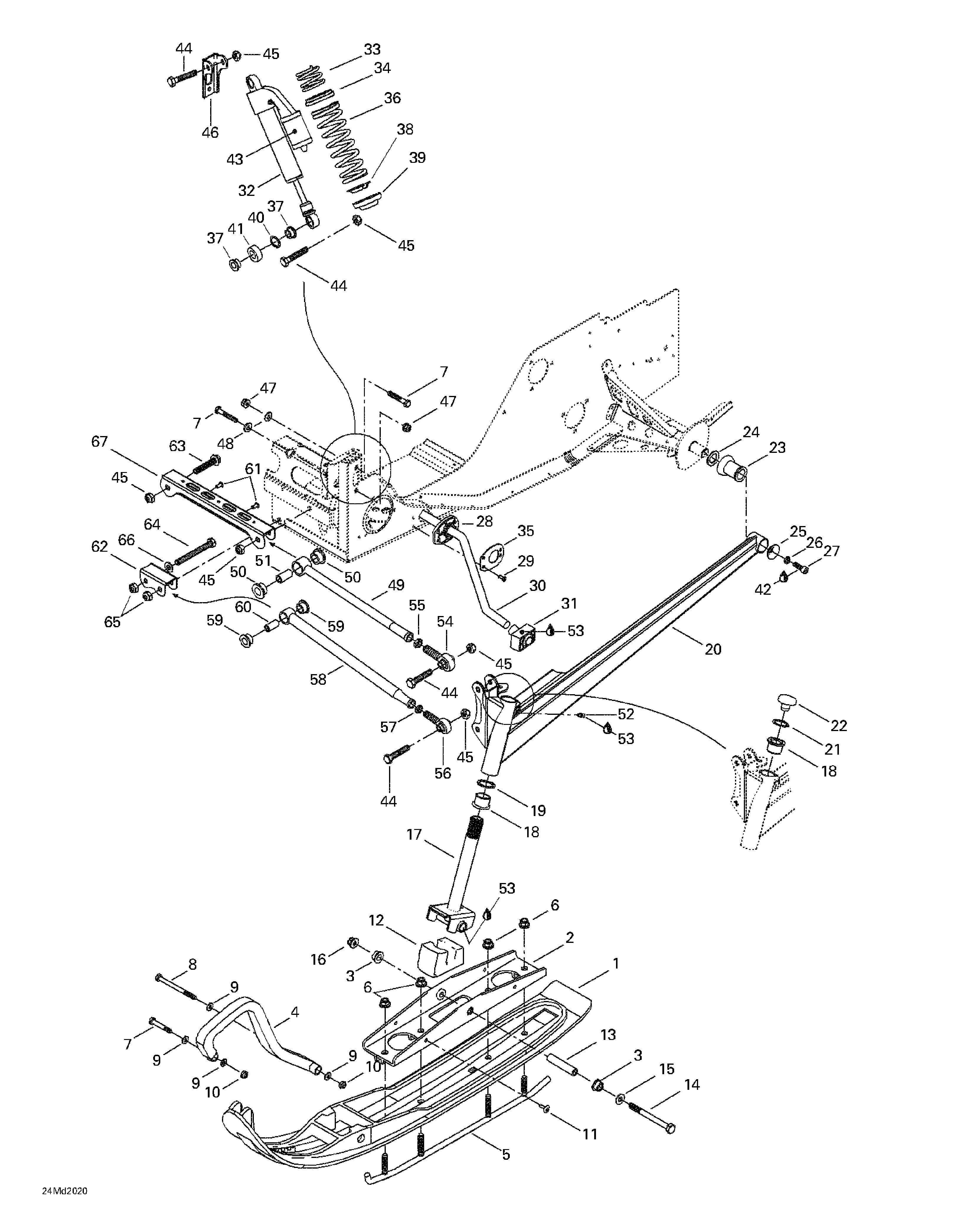

07- Front Suspension And Ski для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1505070189 Ski LinerSki Liner
-
505070190 Ski Liner (Europe)Ski Liner (Europe)
-
2505070055 Bridge Ass'y. Includes 2 - 3.Bridge Ass'y. Includes 2 - 3.
-
3505070001 BushingBushing
-
4572101000 Plastic HandlePlastic Handle
-
5860501900 Carbide Runner Kit. Includes 5 - 6.Carbide Runner Kit. Includes 5 - 6.
-
6233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
7207085044 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
8230080044 Hex. Screw M8 x 100Hex. Screw M8 x 100
-
9234081410 Flat Washer 8 mmFlat Washer 8 mm
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11390911100 Pop RivetPop Rivet
-
12570070400 Ski StopperSki Stopper
-
13506133300 SpacerSpacer
-
14250000001 Hex. Screw M10 x 110Hex. Screw M10 x 110
-
15732900049 WasherWasher
-
16732610084 Elastic Flange Stop Nut M10Elastic Flange Stop Nut M10
-
17506128100 Ski LegSki Leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20505070521 R.H. ArmR.H. Arm
-
505070522 L.H. ArmL.H. Arm
-
21371910400 CirclipCirclip
-
22572091300 CapCap
-
23570062200 DamperDamper
-
24503146700 WasherWasher
-
25506079600 CupCup
-
26234181401 Lock Washer 8 mmLock Washer 8 mm
-
27205082544 Socket Head Screw M8 x 25Socket Head Screw M8 x 25
-
28505070533 BushingBushing
-
29390407200 Pop Rivet 3/16Pop Rivet 3/16
-
30505070490 StabilisatorStabilisator
-
31505070531 Ball Joint BlockBall Joint Block
-
32505070311 R.H. ShockR.H. Shock
-
505070312 L.H. ShockL.H. Shock
-
33505070534 SpringSpring
-
34505070538 Spring SpacerSpring Spacer
-
35505070542 PlatePlate
-
36505070536 SpringSpring
-
37506120200 BushingBushing
-
38503141600 CapCap
-
39503140600 Spring StopperSpring Stopper
-
40371910600 CirclipCirclip
-
41414562900 Radial Ball JointRadial Ball Joint
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43516000183 Shock DecalShock Decal
-
44207005544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
45233601416 Elastic Stop Nut M10Elastic Stop Nut M10
-
46518317518 R.H. Shock BracketR.H. Shock Bracket
-
518317519 L.H. Shock BracketL.H. Shock Bracket
-
47233281414 Elastic Flange Stop Nut M8Elastic Flange Stop Nut M8
-
48506151245 WasherWasher
-
49505070487 Upper Arm Ass'y. Includes 49 - 51.Upper Arm Ass'y. Includes 49 - 51.
-
50506149100 CushionCushion
-
51505070041 BushingBushing
-
52408200700 Grease FittingGrease Fitting
-
53219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
54415068400 Ball JointBall Joint
-
55732610019 R.H. Hex. Jam NutR.H. Hex. Jam Nut
-
56505070297 R.H. Ball JointR.H. Ball Joint
-
57232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
58505070483 Lower Arm Ass'y. Includes 58 - 60.Lower Arm Ass'y. Includes 58 - 60.
-
59506149100 CushionCushion
-
60506149200 BushingBushing
-
61390402200 Pop Rivet 3/16Pop Rivet 3/16
-
62505070290 Lower Arm BracketLower Arm Bracket
-
63207605544 Hex. Flange Screw M10 x 55Hex. Flange Screw M10 x 55
-
64230020044 Hex. Screw M12 x 100Hex. Screw M12 x 100
-
65232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
66234021410 Flat Washer 12 mmFlat Washer 12 mm
-
67505070010 Upper Arm BracketUpper Arm Bracket
