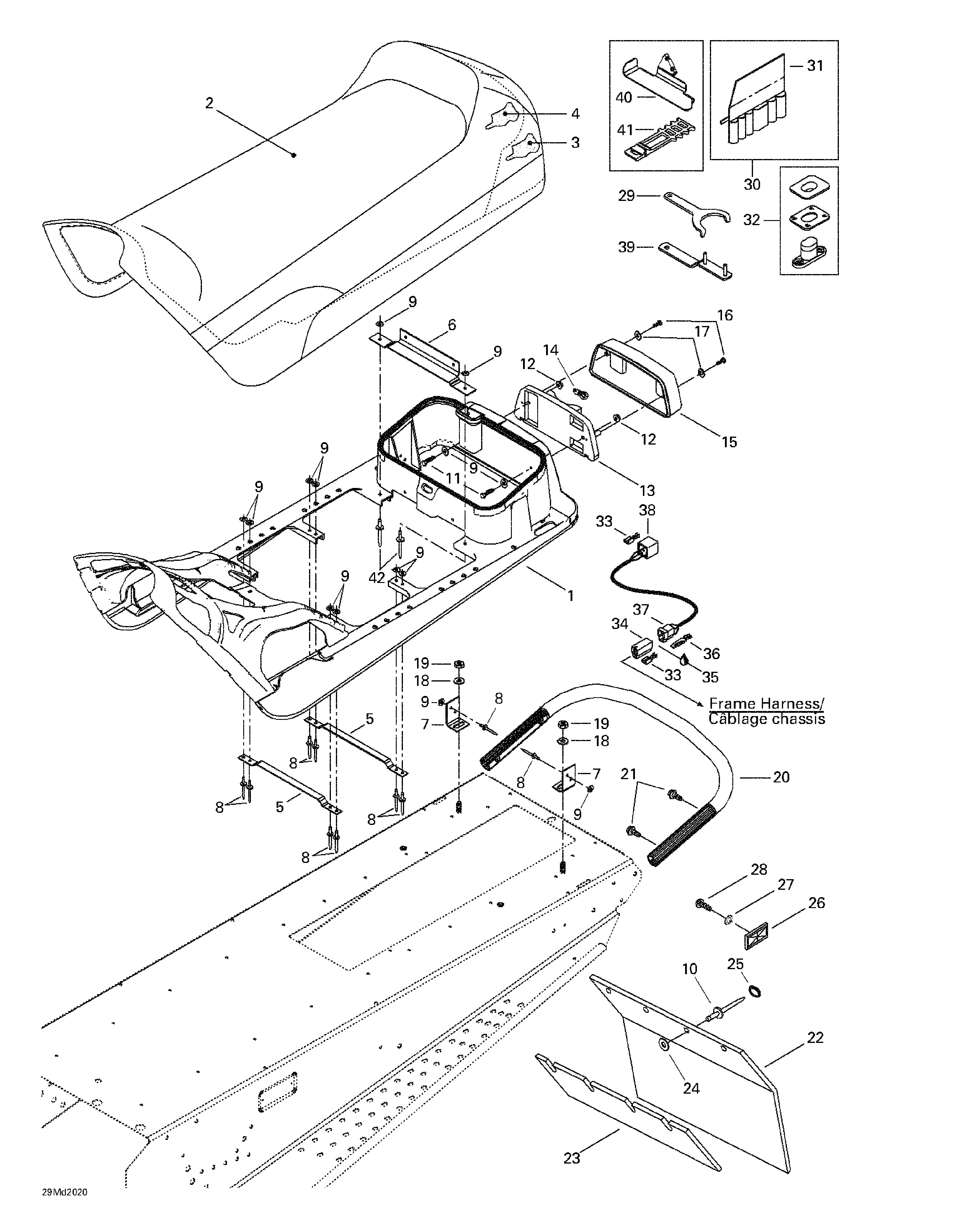

09- Seat And Accessories для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1510003633 Seat BaseSeat Base
-
2510003742 Seat CoverSeat Cover
-
3510003817 Seat FoamSeat Foam
-
4510003816 Seat FoamSeat Foam
-
5510003630 Front ReinforcementFront Reinforcement
-
6510003631 Center ReinforcementCenter Reinforcement
-
7510003632 ReinforcementReinforcement
-
9517297900 Flat WasherFlat Washer
-
10390908000 Pop Rivet (Black)Pop Rivet (Black)
-
11207054044 Hex. Screw M5 x 40Hex. Screw M5 x 40
-
12233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
13414513600 Light HousingLight Housing
-
14410504000 Tail Lamp BulbTail Lamp Bulb
-
15414513700 LensLens
-
16209632540 Tapping ScrewTapping Screw
-
17414516400 WasherWasher
-
18234082410 Flat Washer 8 mmFlat Washer 8 mm
-
19232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
20518318200 Rear BumperRear Bumper
-
21207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
22520000180 Snow GuardSnow Guard
-
23572108200 ReinforcementReinforcement
-
24517225900 Flat WasherFlat Washer
-
25415073300 CapCap
-
26414510100 Red ReflectorRed Reflector
-
414510200 Amber Reflector (Europe)Amber Reflector (Europe)
-
27234451418 Lock Washer 5 mmLock Washer 5 mm
-
28208651041 Screw M5 x 10Screw M5 x 10
-
29529035582 Wrench Adjuster (RR Susp.)Wrench Adjuster (RR Susp.)
-
30529035596 Tool Kit. Includes 30 - 31.Tool Kit. Includes 30 - 31.
-
31520000047 Tool BagTool Bag
-
32414728000 Seat BuckleSeat Buckle
-
33561503100 Female TerminalFemale Terminal
-
34409204300 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36409206100 Male TerminalMale Terminal
-
37409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
38515175250 Dimmer Switch BlockDimmer Switch Block
-
39520000126 Wrench AdjusterWrench Adjuster
-
40518321999 Tool Kit SupportTool Kit Support
-
41570069700 LatchLatch
