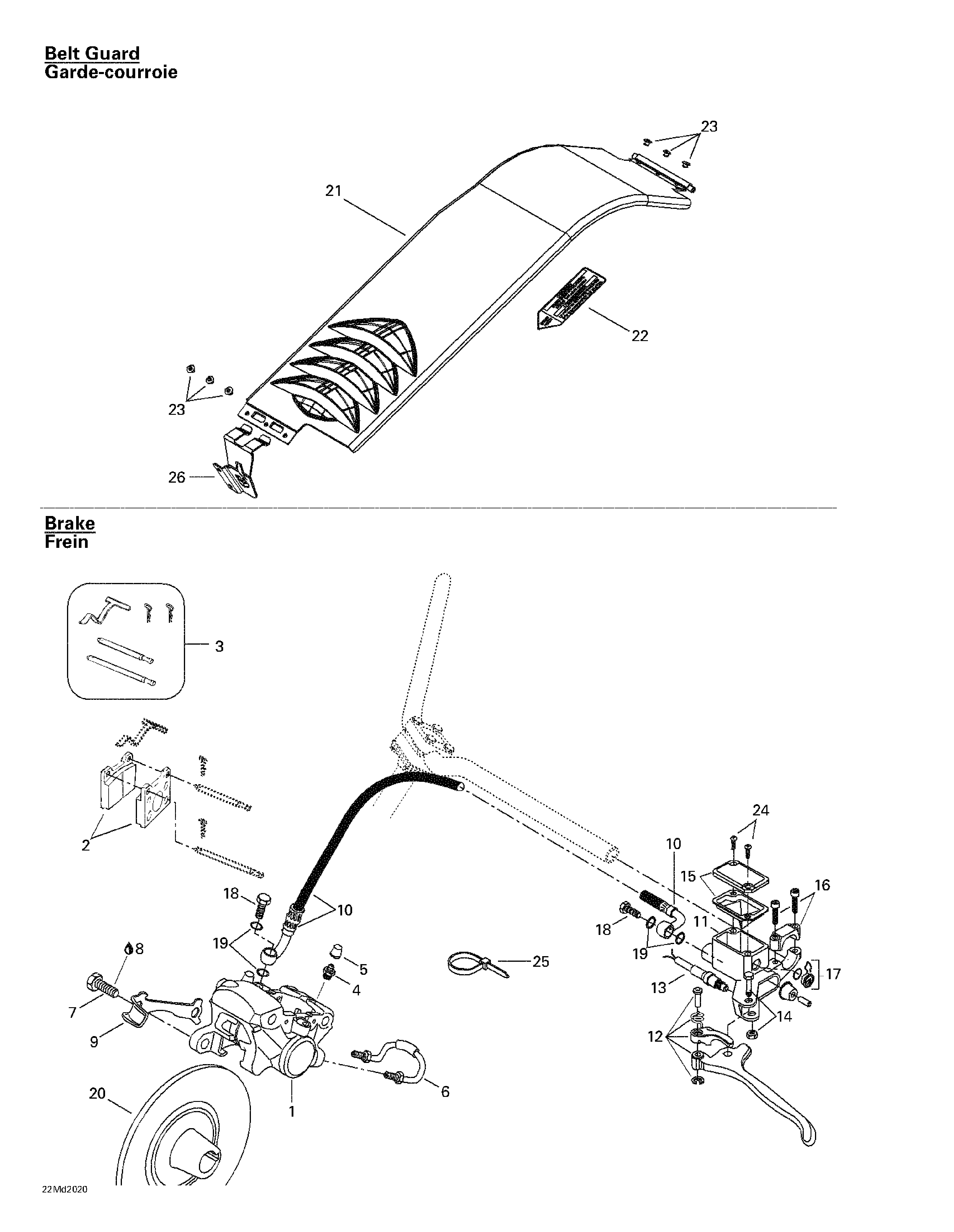

06- Hydraulic Brake And Belt Guard для BRP Ski-Doo MX Z X 440 LC - 2000
-
№АртикулНазвание
-
1507032204 Caliper. Includes 1 - 6.Caliper. Includes 1 - 6.
-
2415084600 Brake Lining KitBrake Lining Kit
-
3414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
4414989800 Screw-BleederScrew-Bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
7207103544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
9507029900 Locking TabLocking Tab
-
10415064600 HoseHose
-
11507032279 Master Cylinder. Includes 11 - 17.Master Cylinder. Includes 11 - 17.
-
12507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
13507032284 Microswitch Ass'yMicroswitch Ass'y
-
14415030000 Pin Ass'yPin Ass'y
-
15415029900 CoverCover
-
16415029800 Clamp Ass'yClamp Ass'y
-
17414990600 WindowWindow
-
18414920500 BoltBolt
-
19414920600 WasherWasher
-
20507030900 Brake Disk Ass'yBrake Disk Ass'y
-
21417300072 Belt Guard Ass'y. Includes 21 - 23.Belt Guard Ass'y. Includes 21 - 23.
-
22516000132 Warning LabelWarning Label
-
23390402200 RivetRivet
-
24216141260 Screw M4 x 12Screw M4 x 12
-
25414115200 Tie-RapTie-Rap
-
26417300001 BracketBracket
