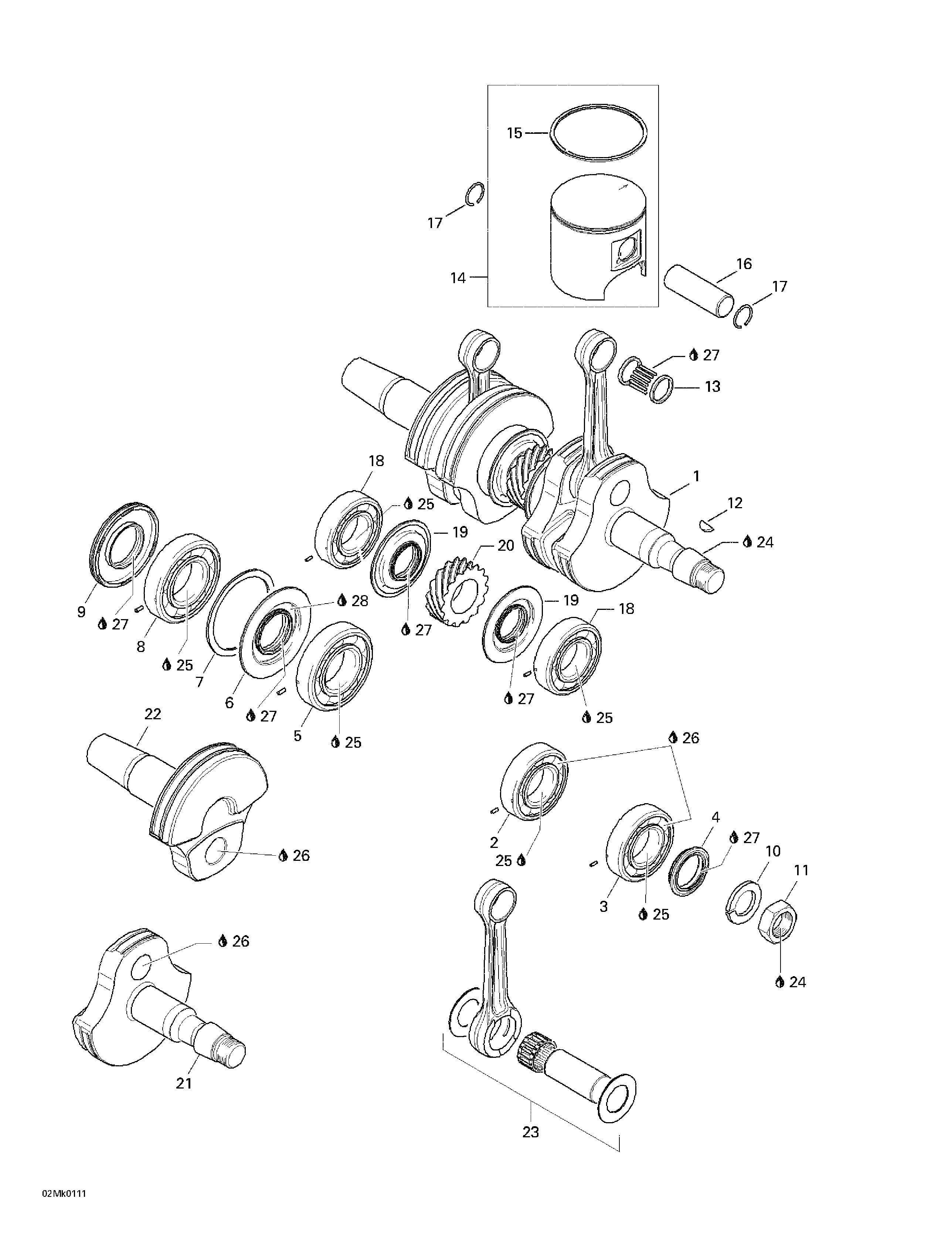

01- Crankshaft And Pistons для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1420888401 Crankshaft Ass'yCrankshaft Ass'y
-
2420832635 Ball Bearing 6207Ball Bearing 6207
-
3420832575 Ball Bearing 6207Ball Bearing 6207
-
4420931790 Oil SealOil Seal
-
5420832601 Ball BearingBall Bearing
-
6420931910 Oil SealOil Seal
-
7420926190 WasherWasher
-
8420832601 Ball BearingBall Bearing
-
9420931285 Oil SealOil Seal
-
10420945759 Lock Washer 22 mmLock Washer 22 mm
-
11420842230 Nut-Hex.M22Nut-Hex.M22
-
12420246015 Woodruff KeyWoodruff Key
-
13420832425 Needle BearingNeedle Bearing
-
14420888436 Piston-Assy (81,85 mm). Includes 14 - 15.Piston-Assy (81,85 mm). Includes 14 - 15.
-
15420815217 Semi-Trapez RingSemi-Trapez Ring
-
16420916370 Gudgeon PinGudgeon Pin
-
17420845106 Piston CirclipPiston Circlip
-
18420832575 Ball Bearing 6207Ball Bearing 6207
-
19420931455 Oil SealOil Seal
-
20420834355 Central Gear 15 TCentral Gear 15 T
-
21420819030 Crankshaft PTOCrankshaft PTO
-
22420819061 Crankshaft MAGCrankshaft MAG
-
23420888403 Rod Repair Kit (MAG side)Rod Repair Kit (MAG side)
-
24420888404 Rod Repair Kit (PTO side)Rod Repair Kit (PTO side)
-
293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
26413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
27413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
28293550021 Isoflex Grease, 45 gIsoflex Grease, 45 g
