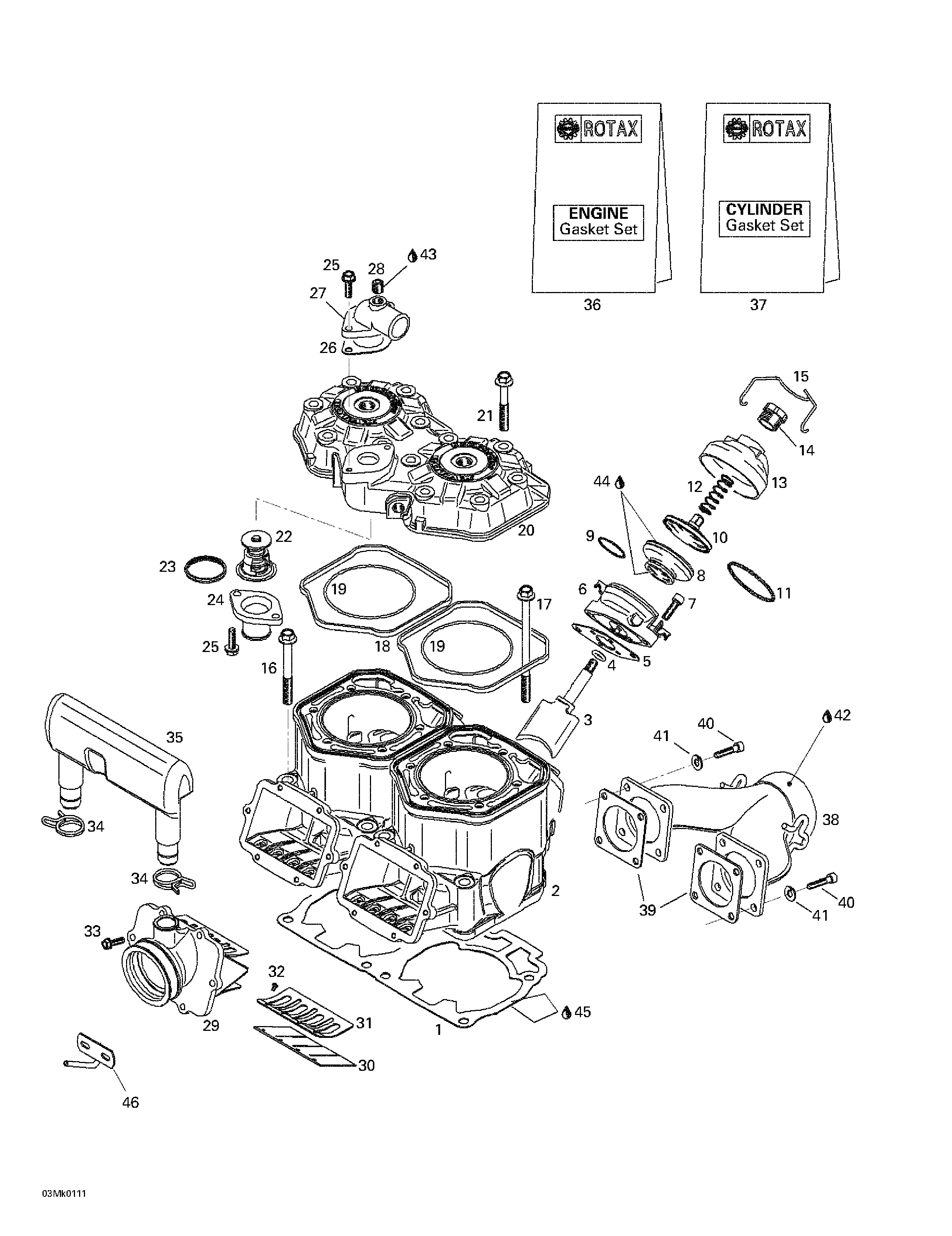

01- Cylinder, Exhaust Manifold, Reed Valve для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1420931839 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
420931964 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
420931837 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
420931838 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
2420923811 Nicasil CylinderNicasil Cylinder
-
3420854465 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420931542 GasketGasket
-
6420854450 Valve HousingValve Housing
-
7205062544 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
8420260729 BellowsBellows
-
9420838253 Spring ClampSpring Clamp
-
10420854449 Exhaust ValveExhaust Valve
-
11290239048 Hose SpringHose Spring
-
12420239941 SpringSpring
-
13420911555 Valve CoverValve Cover
-
14420241221 Adjuster ScrewAdjuster Screw
-
15290838083 Spring ClipSpring Clip
-
16420640524 Hex. Collar Screw M10 x 80Hex. Collar Screw M10 x 80
-
17420640534 Hex. Collar Screw M10 x 120Hex. Collar Screw M10 x 120
-
18420931590 Rubber RingRubber Ring
-
19290931410 O-RingO-Ring
-
20420923820 Cylinder Head (Silver)Cylinder Head (Silver)
-
21420941621 Hex. Collar Screw M8 x 56.5Hex. Collar Screw M8 x 56.5
-
22420922515 Thermostat (42 Deg.)Thermostat (42 Deg.)
-
23420931270 Sealing RingSealing Ring
-
24420922025 Outlet SocketOutlet Socket
-
25420941250 Screw M6 x 20Screw M6 x 20
-
26420850338 GasketGasket
-
27420922062 Bent Outlet SocketBent Outlet Socket
-
28420240480 Plug Screw 1/8-27 NPTPlug Screw 1/8-27 NPT
-
29420867870 Intake Socket Ass'y. Includes 29 - 32.Intake Socket Ass'y. Includes 29 - 32.
-
30420924680 Pedal ReedPedal Reed
-
31420924695 Reed Pedal StopReed Pedal Stop
-
32420941215 Screw M3 x 5Screw M3 x 5
-
33420941925 Screw M5 x 16Screw M5 x 16
-
34420851440 ClampClamp
-
35420867817 Intake ResonatorIntake Resonator
-
36420888740 Engine Gasket SetEngine Gasket Set
-
37420888745 Cylinder Gasket SetCylinder Gasket Set
-
38420973710 Exhaust ManifoldExhaust Manifold
-
39420931850 GasketGasket
-
40205062044 Socket Head Screw M6 x 20Socket Head Screw M6 x 20
-
41234161471 Lock Washer 6 mmLock Washer 6 mm
-
42413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
43293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
44413707000 Molykote 111Molykote 111
-
45293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
46512059369 LCarburator BracketLCarburator Bracket
