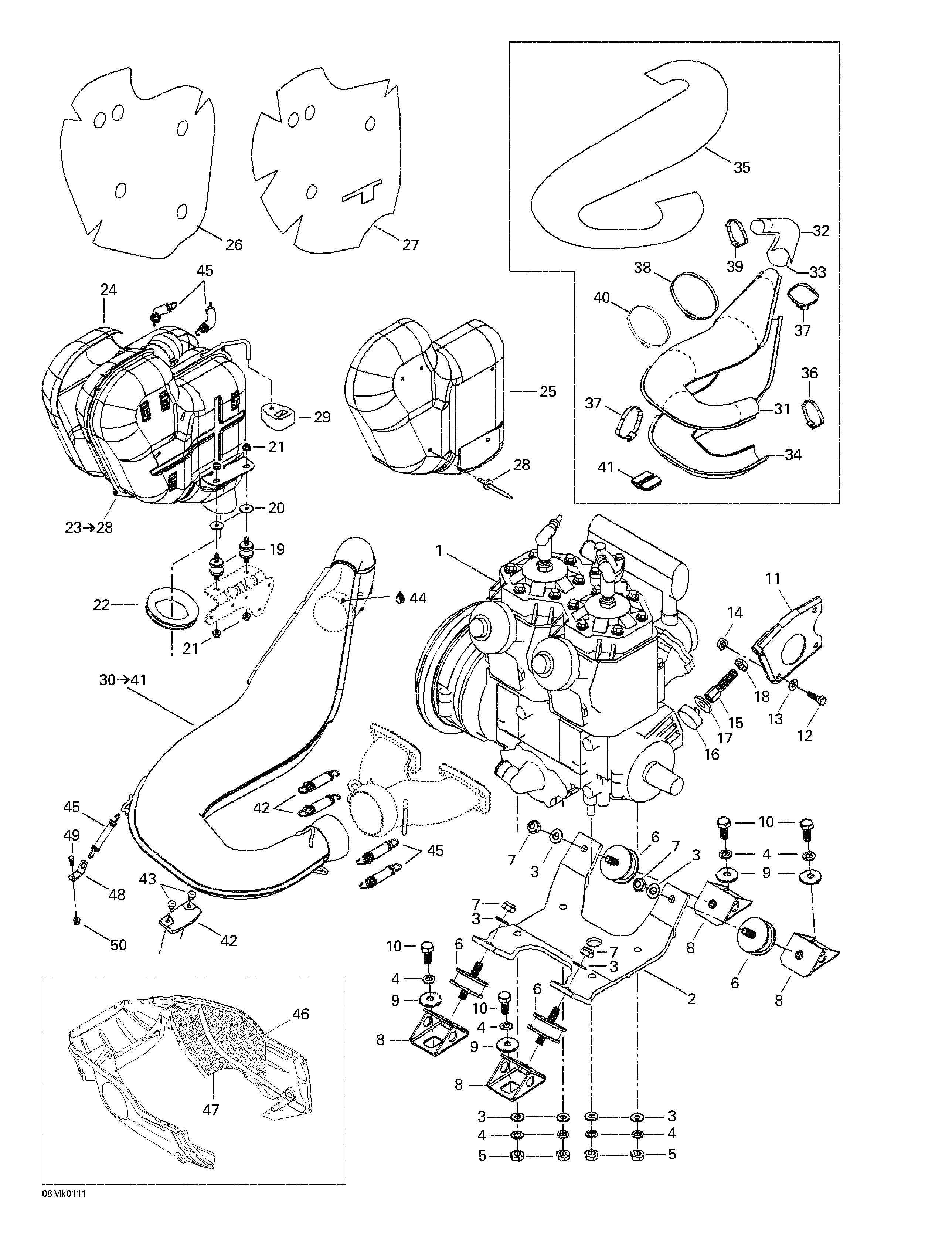

01- Engine Support And Muffler для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1400702604 > Engine> Engine
-
2512059173 Engine SupportEngine Support
-
3234001410 Flat Washer 10 mmFlat Washer 10 mm
-
4234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
5232006414 Hexagonal Nut M10Hexagonal Nut M10
-
6570128700 Rubber MountRubber Mount
-
7233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
8512050900 Engine SupportEngine Support
-
9512056700 Lock WasherLock Washer
-
10207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
11512058500 Support PlateSupport Plate
-
12207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
15512058800 Stopper ScrewStopper Screw
-
16512059056 StopperStopper
-
17512059057 WasherWasher
-
18732610019 R.H. Hex. Jam Nut M12R.H. Hex. Jam Nut M12
-
19514052994 Rubber MountRubber Mount
-
20514052891 Isolating WasherIsolating Washer
-
21233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
22514053064 Exhaust GrommetExhaust Grommet
-
23514053178 Muffler Ass'y. Includes 23 - 28.Muffler Ass'y. Includes 23 - 28.
-
24514053160 R.H. Heat ShieldR.H. Heat Shield
-
25514052733 L.H. Heat ShieldL.H. Heat Shield
-
26514052734 R.H. Insulating WhoolR.H. Insulating Whool
-
27514052844 L.H. Insulating WhoolL.H. Insulating Whool
-
28390910000 Pop Rivet 3/16Pop Rivet 3/16
-
29514052704 Rubber BumperRubber Bumper
-
30514053170 Tuned Pipe Ass'y. Includes 30 - 41.Tuned Pipe Ass'y. Includes 30 - 41.
-
31514053192 Upper EnveloppeUpper Enveloppe
-
32514053193 Rear Upper EnveloppeRear Upper Enveloppe
-
33514053196 Rear Lower EnveloppeRear Lower Enveloppe
-
34514053194 Lower EnveloppeLower Enveloppe
-
35514053285 Insulating WhoolInsulating Whool
-
36514053074 Norma Gear ClampNorma Gear Clamp
-
37514053224 Norma Gear ClampNorma Gear Clamp
-
38514052735 Norma Gear ClampNorma Gear Clamp
-
39293650090 Norma Gear ClampNorma Gear Clamp
-
40514052902 Norma Gear ClampNorma Gear Clamp
-
41514053180 Rubber PadRubber Pad
-
42570044100 Rubber PadRubber Pad
-
43390406500 Pop Rivet 3/16Pop Rivet 3/16
-
44413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
45415107100 SpringSpring
-
46514052718 Reflective SheetReflective Sheet
-
47514052719 Reflective SheetReflective Sheet
-
48514053026 Spring BracketSpring Bracket
-
49207151244 Hex. Screw M5 x 12Hex. Screw M5 x 12
-
50233251414 Elastic Flange Nut M5Elastic Flange Nut M5
