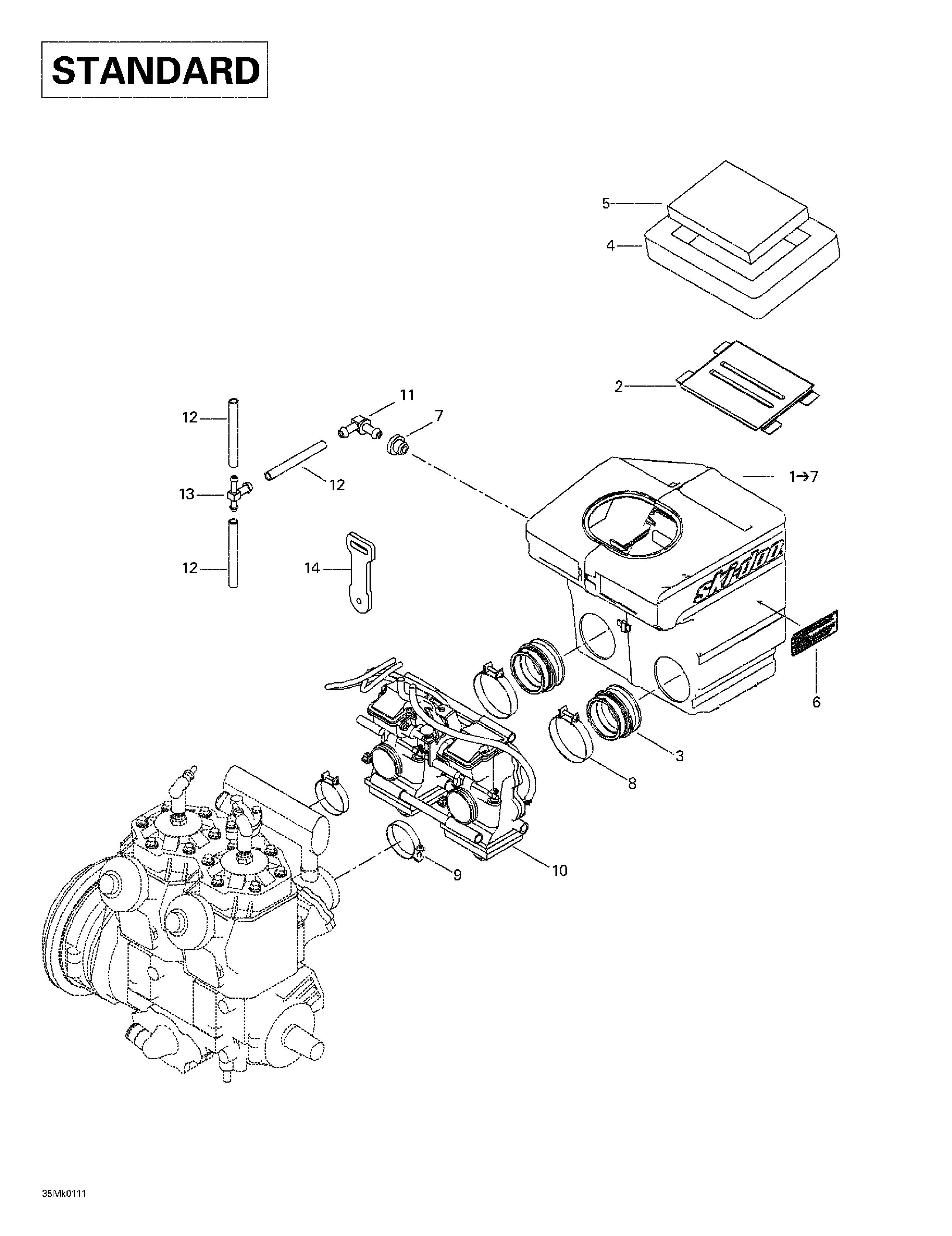

02- Air Intake System - Standard для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1508000201 Air Intake Ass'y (STD). Includes 1 - 7.Air Intake Ass'y (STD). Includes 1 - 7.
-
2508000004 Intake GrillIntake Grill
-
3508000092 Air Intake Adaptor (40 mm)(STD)Air Intake Adaptor (40 mm)(STD)
-
4508000099 Lower FoamLower Foam
-
5508000154 Air FilterAir Filter
-
6516000130 Caution LabelCaution Label
-
7513032908 Grommet (STD)Grommet (STD)
-
8508000162 Clamp (STD)Clamp (STD)
-
9512059305 Clamp (STD)Clamp (STD)
-
10403138661 Carburetor Kit TM. .Carburetor Kit TM. .
-
11414580600 Elbow Male ConnectorElbow Male Connector
-
12415080200 Line (STD)Line (STD)
-
13572045500 T'' Connector (STD)```T'' Connector (STD)```
-
14512059372 Carburator LatchCarburator Latch
