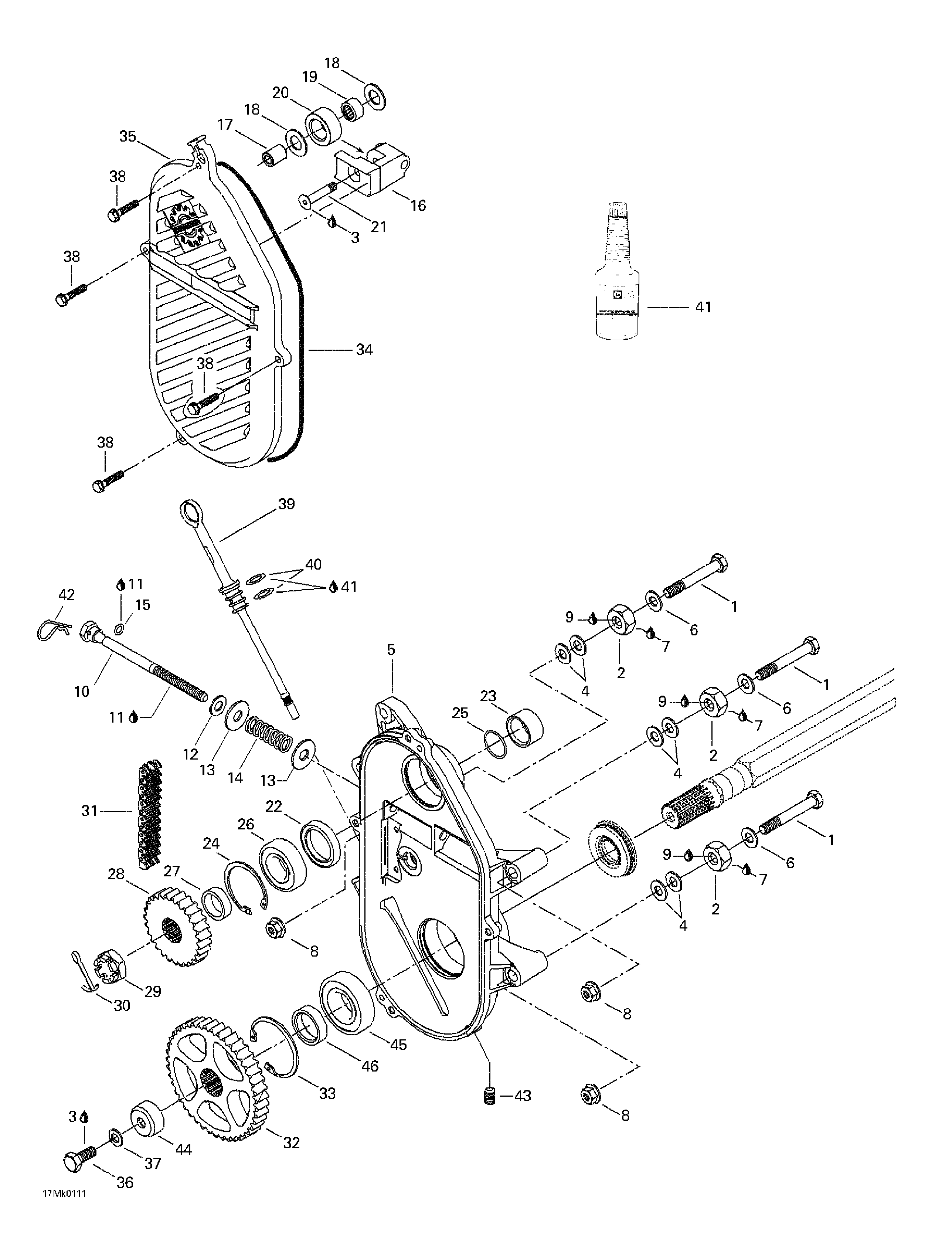

05- Chaincase для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1207108044 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
2504083800 SpacerSpacer
-
3293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
4504073700 WasherWasher
-
5504151938 ChaincaseChaincase
-
6503183800 WasherWasher
-
7293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
8233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10504151946 Adjusting ScrewAdjusting Screw
-
11219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
12503189148 Flat WasherFlat Washer
-
13503125900 Hard WasherHard Washer
-
14504151945 SpringSpring
-
15504151954 O-RingO-Ring
-
16504151940 Chain TensionerChain Tensioner
-
17504080200 SpacerSpacer
-
18504080300 WasherWasher
-
19405403000 Needle BearingNeedle Bearing
-
20414531300 RollerRoller
-
21732601144 ScrewScrew
-
22415049300 SealSeal
-
23507031500 SpacerSpacer
-
24371901700 Circlip (Interior)Circlip (Interior)
-
25414876700 O-RingO-Ring
-
26504152006 Ball BearingBall Bearing
-
27504147200 ShimShim
-
28504085300 26 Tooth Sprocket (Large)26 Tooth Sprocket (Large)
-
29250000012 Hex. Castellated Nut M20Hex. Castellated Nut M20
-
30371006300 Cotter PinCotter Pin
-
31504151856 Drive Chain Large (76 Links)Drive Chain Large (76 Links)
-
32504148500 43 Tooth Sprocket (Large)43 Tooth Sprocket (Large)
-
33415064300 Circlip (Interior)Circlip (Interior)
-
34415046400 O-RingO-Ring
-
35504152027 Chaincase CoverChaincase Cover
-
36207102544 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
37234100602 Lock Spring Washer 10 mmLock Spring Washer 10 mm
-
38210263080 Hex. Forming Screw M6 x 30Hex. Forming Screw M6 x 30
-
39504151703 Filler Cap Ass'yFiller Cap Ass'y
-
40414969400 O-RingO-Ring
-
41413803300 Synthetic Chaincase Oil,. 12 x 355 mlSynthetic Chaincase Oil,. 12 x 355 ml
-
42414575600 Hair PinHair Pin
-
43504151921 Plug 1/8-27Plug 1/8-27
-
44501022400 CapCap
-
45504152005 Ball BearingBall Bearing
-
46501021800 Inner ShimInner Shim
