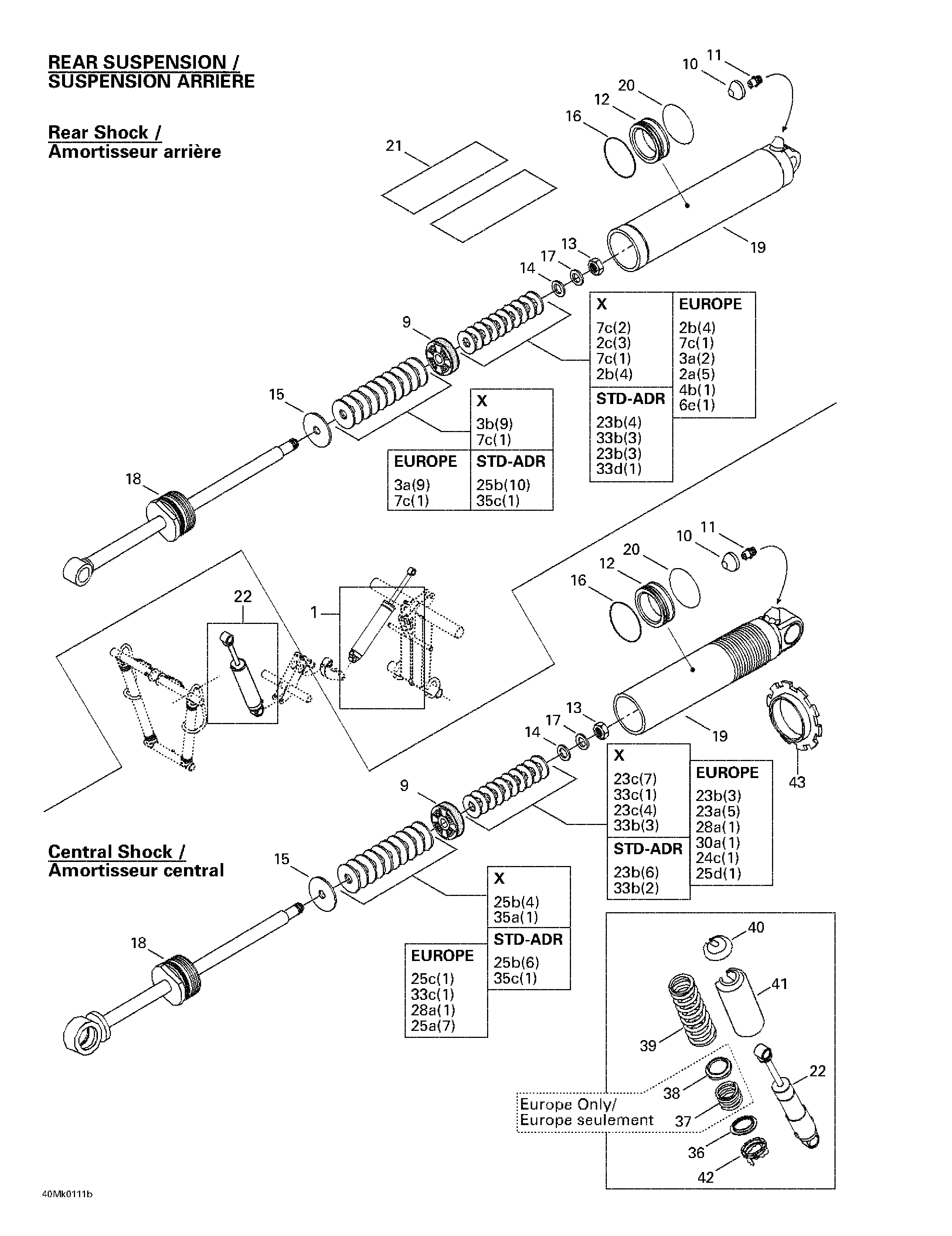

08- Rear Take Apart Shocks для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1503189677 (C36) RR.Susp. Rear Shock (STD-ADR). Standard. Adrenaline.(C36) RR.Susp. Rear Shock (STD-ADR). Standard. Adrenaline.
-
503189280 (C46) RR. Susp. Rear Shock (Europe). Europe.(C46) RR. Susp. Rear Shock (Europe). Europe.
-
503189609 (C46) RR. Susp. Rear Shock (X). X.(C46) RR. Susp. Rear Shock (X). X.
-
2a503189041 (C46) Leaf Valve O40 x 0.254(C46) Leaf Valve O40 x 0.254
-
2b503189040 (C46) Leaf Valve O40 x 0.203(C46) Leaf Valve O40 x 0.203
-
2c503189039 (C46) Leaf Valve O40 x 0.114(C46) Leaf Valve O40 x 0.114
-
3a503189038 (C46) Leaf Valve O36 x 0.254(C46) Leaf Valve O36 x 0.254
-
3b503189037 (C46) Leaf Valve O36 x 0.203(C46) Leaf Valve O36 x 0.203
-
3c503189036 (C46) Leaf Valve O36 x 0.152(C46) Leaf Valve O36 x 0.152
-
4a503189035 (C46) Leaf Valve O30 x 0.305(C46) Leaf Valve O30 x 0.305
-
4b503189034 (C46) Leaf Valve O30 x 0.254(C46) Leaf Valve O30 x 0.254
-
4c503189033 (C46) Leaf Valve O30 x 0.203(C46) Leaf Valve O30 x 0.203
-
4d503189032 (C46) Leaf Valve O30 x 0.152(C46) Leaf Valve O30 x 0.152
-
4e503189031 (C46) Leaf Valve O30 x 0.114(C46) Leaf Valve O30 x 0.114
-
5a503189030 (C46) Leaf Valve O28 x 0.305(C46) Leaf Valve O28 x 0.305
-
5b503189029 (C46) Leaf Valve O28 x 0.254(C46) Leaf Valve O28 x 0.254
-
5c503189028 (C46) Leaf Valve O28 x 0.203(C46) Leaf Valve O28 x 0.203
-
5d503189027 (C46) Leaf Valve O28 x 0.152(C46) Leaf Valve O28 x 0.152
-
5e503189026 (C46) Leaf Valve O28 x 0.114(C46) Leaf Valve O28 x 0.114
-
6a503189025 (C46) Leaf Valve O26 x 0.305(C46) Leaf Valve O26 x 0.305
-
6b503189024 (C46) Leaf Valve O26 x 0.254(C46) Leaf Valve O26 x 0.254
-
6c503189023 (C46) Leaf Valve O26 x 0.203(C46) Leaf Valve O26 x 0.203
-
6D503189022 (C46) Leaf Valve O26 x 0.152(C46) Leaf Valve O26 x 0.152
-
6e503189021 (C46) Leaf Valve O26 x 0.114(C46) Leaf Valve O26 x 0.114
-
7A503189020 (C46) Leaf Valve O24 x 0.305(C46) Leaf Valve O24 x 0.305
-
7b503189019 (C46) Leaf Valve O24 x 0.254(C46) Leaf Valve O24 x 0.254
-
7c503189018 (C46) Leaf Valve O24 x 0.203(C46) Leaf Valve O24 x 0.203
-
7D503189017 (C46) Leaf Valve O24 x 0.152(C46) Leaf Valve O24 x 0.152
-
7E503189016 (C46) Leaf Valve O24 x 0.114(C46) Leaf Valve O24 x 0.114
-
8a503189015 (C46) Leaf Valve O22 x 0.305(C46) Leaf Valve O22 x 0.305
-
8b503189014 (C46) Leaf Valve O22 x 0.254(C46) Leaf Valve O22 x 0.254
-
8c503189013 (C46) Leaf Valve O22 x 0.203(C46) Leaf Valve O22 x 0.203
-
8d503189012 (C46) Leaf Valve O22 x 0.152(C46) Leaf Valve O22 x 0.152
-
8e503189011 (C46) Leaf Valve O22 x 0.114(C46) Leaf Valve O22 x 0.114
-
9503189004 (C46) Piston (O0.0) (X)(C46) Piston (O0.0) (X)
-
503189003 (C46) Piston (O1.2) (X)(C46) Piston (O1.2) (X)
-
503189002 (C46) Piston (O1.7) (X)(C46) Piston (O1.7) (X)
-
414888307 (C36) Piston (2 x 0.3-6)(C36) Piston (2 x 0.3-6)
-
414888306 (C36) Piston (2 x 0.3-4)(C36) Piston (2 x 0.3-4)
-
414888305 (C36) Piston (2 x 0.3-2)(C36) Piston (2 x 0.3-2)
-
10503189307 Valve Cap (X-EUROPE). X. Europe.Valve Cap (X-EUROPE). X. Europe.
-
11414888314 AirValveCapandRing(X-EUROPE). X. Europe.AirValveCapandRing(X-EUROPE). X. Europe.
-
12415097900 Free Piston (STD-ADR). Standard. Adrenaline.Free Piston (STD-ADR). Standard. Adrenaline.
-
503189008 Free Piston (Rear Shock-EUROPE). Europe.Free Piston (Rear Shock-EUROPE). Europe.
-
503189309 Free Piston (Central Shock-X-EUROPE). X. Europe.Free Piston (Central Shock-X-EUROPE). X. Europe.
-
16414888312 O-RingO-Ring
-
20503189308 Piston Ring (Central Shock-X- EUROPE). X. Europe.Piston Ring (Central Shock-X- EUROPE). X. Europe.
-
503189006 Piston Ring (Rear Shock-X-EUROPE). X. Europe.Piston Ring (Rear Shock-X-EUROPE). X. Europe.
-
21516000183 Shock DecalShock Decal
-
22503189279 (C36) RR.Susp. Central Shock (EUROPE). Europe.(C36) RR.Susp. Central Shock (EUROPE). Europe.
-
503189678 (C36) RR.Susp. Central Shock (STD-ADR). Standard. Adrenaline.(C36) RR.Susp. Central Shock (STD-ADR). Standard. Adrenaline.
-
503189610 (C36) RR.Susp. Central Shock (X). X.(C36) RR.Susp. Central Shock (X). X.
-
23a415039100 (C36) Leaf Valve O30 x 0.254(C36) Leaf Valve O30 x 0.254
-
23b414888318 (C36) Leaf Valve O30 x 0.203(C36) Leaf Valve O30 x 0.203
-
23C414888319 (C36) Leaf Valve O30 x 0.152(C36) Leaf Valve O30 x 0.152
-
24a414888320 (C36) Leaf Valve O28 x 0.203(C36) Leaf Valve O28 x 0.203
-
24b414888321 (C36) Leaf Valve O28 x 0.152(C36) Leaf Valve O28 x 0.152
-
25a415039000 (C36) Leaf Valve O26 x 0.254(C36) Leaf Valve O26 x 0.254
-
25b414888322 (C36) Leaf Valve O26 x 0.203(C36) Leaf Valve O26 x 0.203
-
25c414888323 (C36) Leaf Valve O26 x 0.152(C36) Leaf Valve O26 x 0.152
-
27a414888324 (C36) Leaf Valve O22 x 0.203(C36) Leaf Valve O22 x 0.203
-
27b414888325 (C36) Leaf Valve O22 x 0.152(C36) Leaf Valve O22 x 0.152
-
28a414888340 (C36) Leaf Valve O21 x 0.114(C36) Leaf Valve O21 x 0.114
-
29a414888326 (C36) Leaf Valve O20 x 0.203(C36) Leaf Valve O20 x 0.203
-
29b414888327 (C36) Leaf Valve O20 x 0.152(C36) Leaf Valve O20 x 0.152
-
29c414888328 (C36) Leaf Valve O20 x 0.114(C36) Leaf Valve O20 x 0.114
-
31a414888329 (C36) Leaf Valve O18 x 0.203(C36) Leaf Valve O18 x 0.203
-
31b414888330 (C36) Leaf Valve O18 x 0.152(C36) Leaf Valve O18 x 0.152
-
32a414888331 (C36) Leaf Valve O16 x 0.254(C36) Leaf Valve O16 x 0.254
-
32b414888332 (C36) Leaf Valve O16 x 0.203(C36) Leaf Valve O16 x 0.203
-
32c414888333 (C36) Leaf Valve O16 x 0.152(C36) Leaf Valve O16 x 0.152
-
32d415038900 (C36) Leaf Valve O16 x 0.114(C36) Leaf Valve O16 x 0.114
-
33a414888334 (C36) Leaf Valve O15 x 0.254(C36) Leaf Valve O15 x 0.254
-
33b414888335 (C36) Leaf Valve O15 x 0.203(C36) Leaf Valve O15 x 0.203
-
33c414888336 (C36) Leaf Valve O15 x 0.152(C36) Leaf Valve O15 x 0.152
-
33d414888337 (C36) Leaf Valve O15 x 0.114(C36) Leaf Valve O15 x 0.114
-
35a503189538 (C36) Leaf Valve O12 x 0.254(C36) Leaf Valve O12 x 0.254
-
35b414888339 (C36) Leaf Valve O12 x 0.203(C36) Leaf Valve O12 x 0.203
-
35c414888338 (C36) Leaf Valve O12 x 0.152(C36) Leaf Valve O12 x 0.152
-
35d415038800 (C36) Leaf Valve O12 x 0.114(C36) Leaf Valve O12 x 0.114
-
36503184300 Spring Guide (ADR-STD). Standard. Adrenaline.Spring Guide (ADR-STD). Standard. Adrenaline.
-
37503189090 Spring (EUROPE). Europe.Spring (EUROPE). Europe.
-
38503182200 Spring Spacer (EUROPE). Europe.Spring Spacer (EUROPE). Europe.
-
39503189325 Spring (X). X.Spring (X). X.
-
415090500 Spring (EUROPE). Europe.Spring (EUROPE). Europe.
-
40503140600 Spring Stopper (X-EUROPE). X. Europe.Spring Stopper (X-EUROPE). X. Europe.
-
41503188930 Protector (ADR-STD). Standard. Adrenaline.Protector (ADR-STD). Standard. Adrenaline.
-
42505070150 Adjuster RingAdjuster Ring
-
43414888316 Collar Spring (Central Shock-X-EUROPE). X. Europe.Collar Spring (Central Shock-X-EUROPE). X. Europe.
-
44293600035 Shock Oil (Not Shown)Shock Oil (Not Shown)
