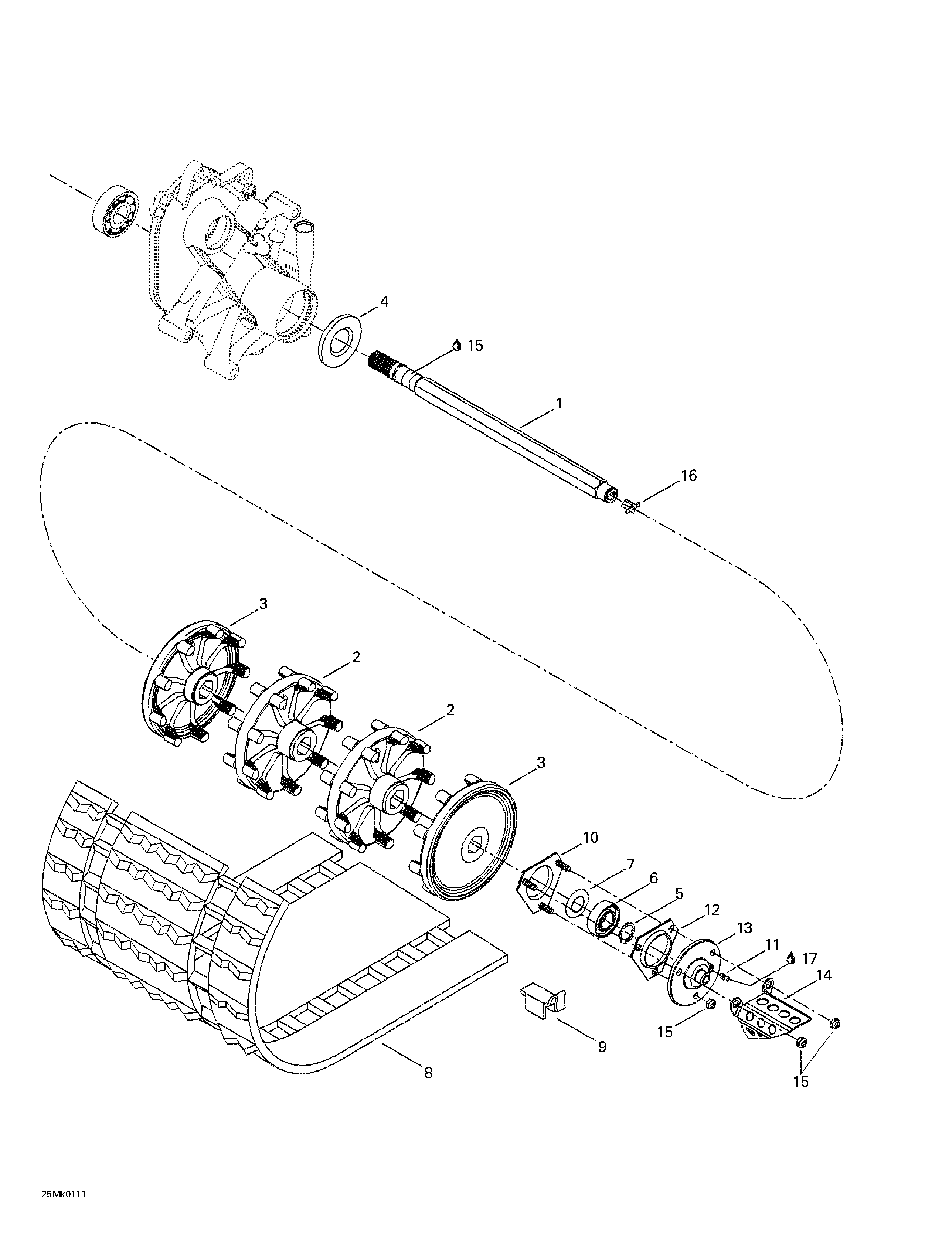

05- Drive Axle And Track для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket 9-TeethSprocket 9-Teeth
-
3504151782 Half Sprocket 9-TeethHalf Sprocket 9-Teeth
-
4504151918 Oil SealOil Seal
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Ball Bearing ProtectorBall Bearing Protector
-
8504151917 Track Ass'y. Includes 8 - 9.Track Ass'y. Includes 8 - 9.
-
9500003400 Guide CleatGuide Cleat
-
10504151860 Bearing HousingBearing Housing
-
11408200700 Grease FittingGrease Fitting
-
12501025000 FlangeFlange
-
13504151836 Flange (Speed Drive Insert)Flange (Speed Drive Insert)
-
14517290100 Cable ProtectorCable Protector
-
15232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
16572010100 Speedometer InsertSpeedometer Insert
-
17219700417 Synthetic Grease, 400gSynthetic Grease, 400g
