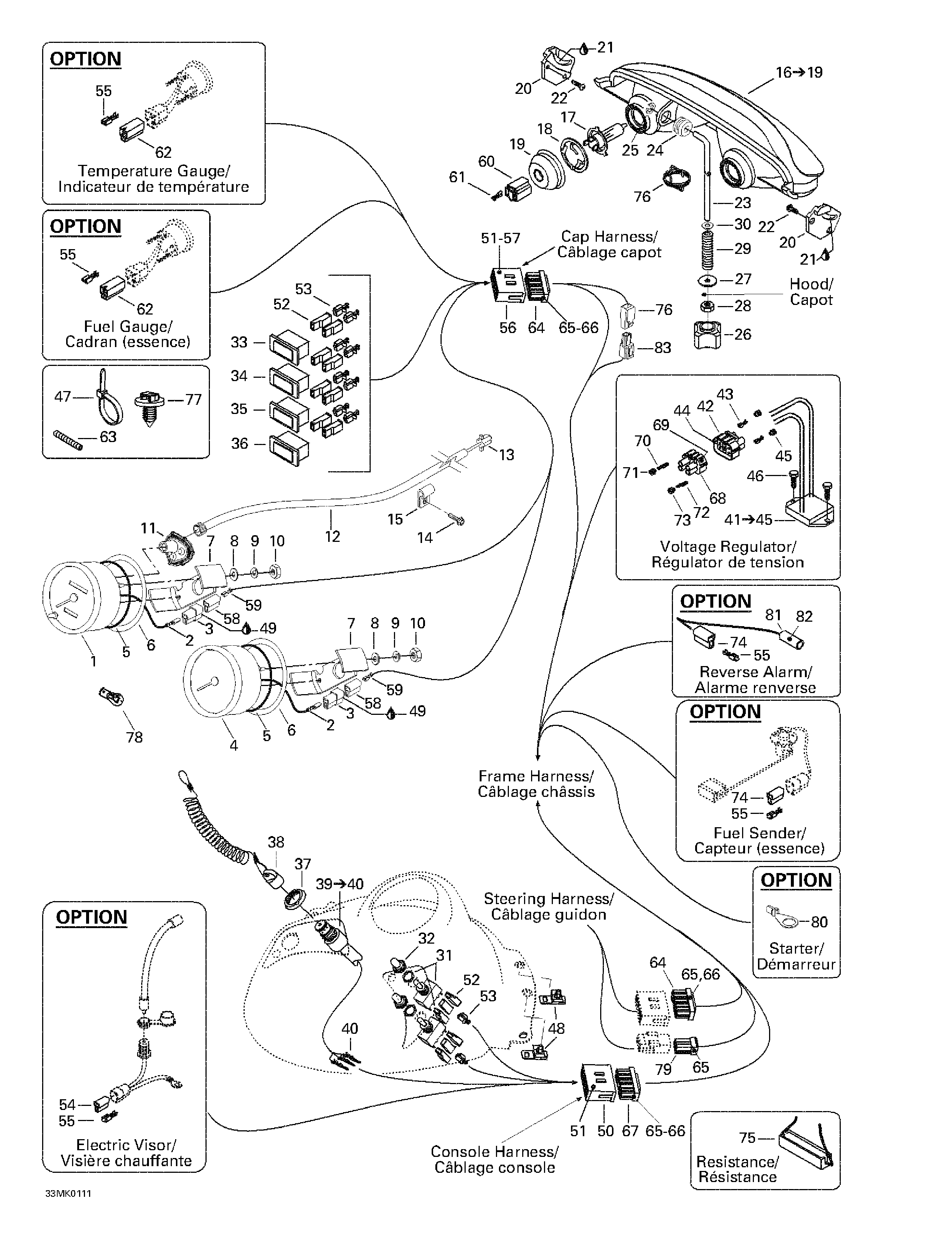

10- Electrical System для BRP Ski-Doo MX Z 800 - 2001
-
№АртикулНазвание
-
1515175335 Speedometer (KMH)Speedometer (KMH)
-
515175336 Speedometer (MPH) (US Only)Speedometer (MPH) (US Only)
-
2409210000 Male Terminal (14-18 Gauge)Male Terminal (14-18 Gauge)
-
3409204500 Male Terminal Housing (2 circuits)Male Terminal Housing (2 circuits)
-
4515175340 TachometerTachometer
-
5414807100 O-RingO-Ring
-
6517258500 WasherWasher
-
7414806500 Case HolderCase Holder
-
8309301700 Flat WasherFlat Washer
-
9414806700 Lock WasherLock Washer
-
10414806900 NutNut
-
11515175400 Drive AngleDrive Angle
-
12415101500 Speedometer CableSpeedometer Cable
-
13572010100 Speedometer Drive InsertSpeedometer Drive Insert
-
15414176000 Clip (Cable)Clip (Cable)
-
16515175158 Halogen Headlamp. Includes 16 - 19.Halogen Headlamp. Includes 16 - 19.
-
17410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
18410608300 Bulb HolderBulb Holder
-
19410607100 Protector CapProtector Cap
-
20517289300 Headlamp Support R.HHeadlamp Support R.H
-
517289400 Headlamp Support L.HHeadlamp Support L.H
-
21413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
22732601315 Headlamp ScrewHeadlamp Screw
-
23517295800 Adjuster RodAdjuster Rod
-
24415100800 GrommetGrommet
-
25732610072 Push NutPush Nut
-
26515175548 HandleHandle
-
27224060251 WasherWasher
-
28232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
29415100600 SpringSpring
-
30234061410 Flat Washer 6 mmFlat Washer 6 mm
-
31410107300 Switch (Heating Grip)Switch (Heating Grip)
-
32515175281 Switch CoverSwitch Cover
-
33515175591 Pilot Lamp (Oil Level)Pilot Lamp (Oil Level)
-
34515175592 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
35515175593 Pilot Lamp (Temperature)Pilot Lamp (Temperature)
-
36410113300 Pilot Lamp (DESS)Pilot Lamp (DESS)
-
37278000508 Safety Switch NutSafety Switch Nut
-
38515166900 DESS Cap Ass'yDESS Cap Ass'y
-
39515175145 DESS Switch. Includes 39 - 40.DESS Switch. Includes 39 - 40.
-
40515175232 Male TerminalMale Terminal
-
41515175491 Voltage Regulator. Includes 41 - 45.Voltage Regulator. Includes 41 - 45.
-
42409208000 Fem. Terminal Housing (4 circuits)Fem. Terminal Housing (4 circuits)
-
43278000994 Female TerminalFemale Terminal
-
44409013400 Female LockFemale Lock
-
45278000996 SealSeal
-
46210261680 Hex. Forming Screw M6 x 16Hex. Forming Screw M6 x 16
-
47293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 160 mmTie Rap 160 mm
-
414115200 Tie RapTie Rap
-
515175220 Tie RapTie Rap
-
48515175283 Housing SupportHousing Support
-
49293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
50515175351 Male Terminal Housing (15 circ.)Male Terminal Housing (15 circ.)
-
51515175232 Male TerminalMale Terminal
-
52409010400 Fem. Terminal Housing (1 circuits)Fem. Terminal Housing (1 circuits)
-
53409010100 Female TerminalFemale Terminal
-
54409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
55409203300 Female TerminalFemale Terminal
-
56515175352 Male Terminal Housing (13 circuits)Male Terminal Housing (13 circuits)
-
57515175273 Male TerminalMale Terminal
-
58409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
59561503100 Female TerminalFemale Terminal
-
60409202700 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
61515175320 Female TerminalFemale Terminal
-
62409204300 Female Terminal Housing (3 circuits)Female Terminal Housing (3 circuits)
-
63515175442 Tubing 6 mmTubing 6 mm
-
415079900 Tubing 10 mmTubing 10 mm
-
409901800 Tubing 13 mmTubing 13 mm
-
415080000 Tubing 16 mmTubing 16 mm
-
64515175350 Female Terminal Housing (13 circuits)Female Terminal Housing (13 circuits)
-
65515175231 Female TerminalFemale Terminal
-
66515175282 Female TerminalFemale Terminal
-
67515175349 Female Terminal Housing (15 circuits)Female Terminal Housing (15 circuits)
-
68409207700 Male Terminal Housing (4 circuits)Male Terminal Housing (4 circuits)
-
69409013100 Male Lock (4 circuits)Male Lock (4 circuits)
-
70409010900 Male TerminalMale Terminal
-
71409208300 SealSeal
-
72409013000 Male TerminalMale Terminal
-
73278000996 Seal (Orange)Seal (Orange)
-
74409204600 Female Terminal Housing (2 circuits)Female Terminal Housing (2 circuits)
-
75515175241 Resistance (50 ohms)Resistance (50 ohms)
-
76515175324 Spring (Europe)Spring (Europe)
-
77293730018 Mount DartMount Dart
-
78410504200 Instrumentation BulbInstrumentation Bulb
-
79515175495 Female Terminal Housing (3 Circuits)Female Terminal Housing (3 Circuits)
-
80515175504 Ring TerminalRing Terminal
-
81415079200 HoseHose
-
83515175509 Male Terminal Housing (1 Circuit)Male Terminal Housing (1 Circuit)
-
84515175510 Female Terminal Housing (1 Circuit)Female Terminal Housing (1 Circuit)
-
85278001113 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
86278001114 Female TerminalFemale Terminal
-
87515175549 Frame Harness (Not Shown)Frame Harness (Not Shown)
-
88515175147 Console Harness (Not Shown)Console Harness (Not Shown)
-
89515175550 Cab Harness (Not Shown)Cab Harness (Not Shown)
