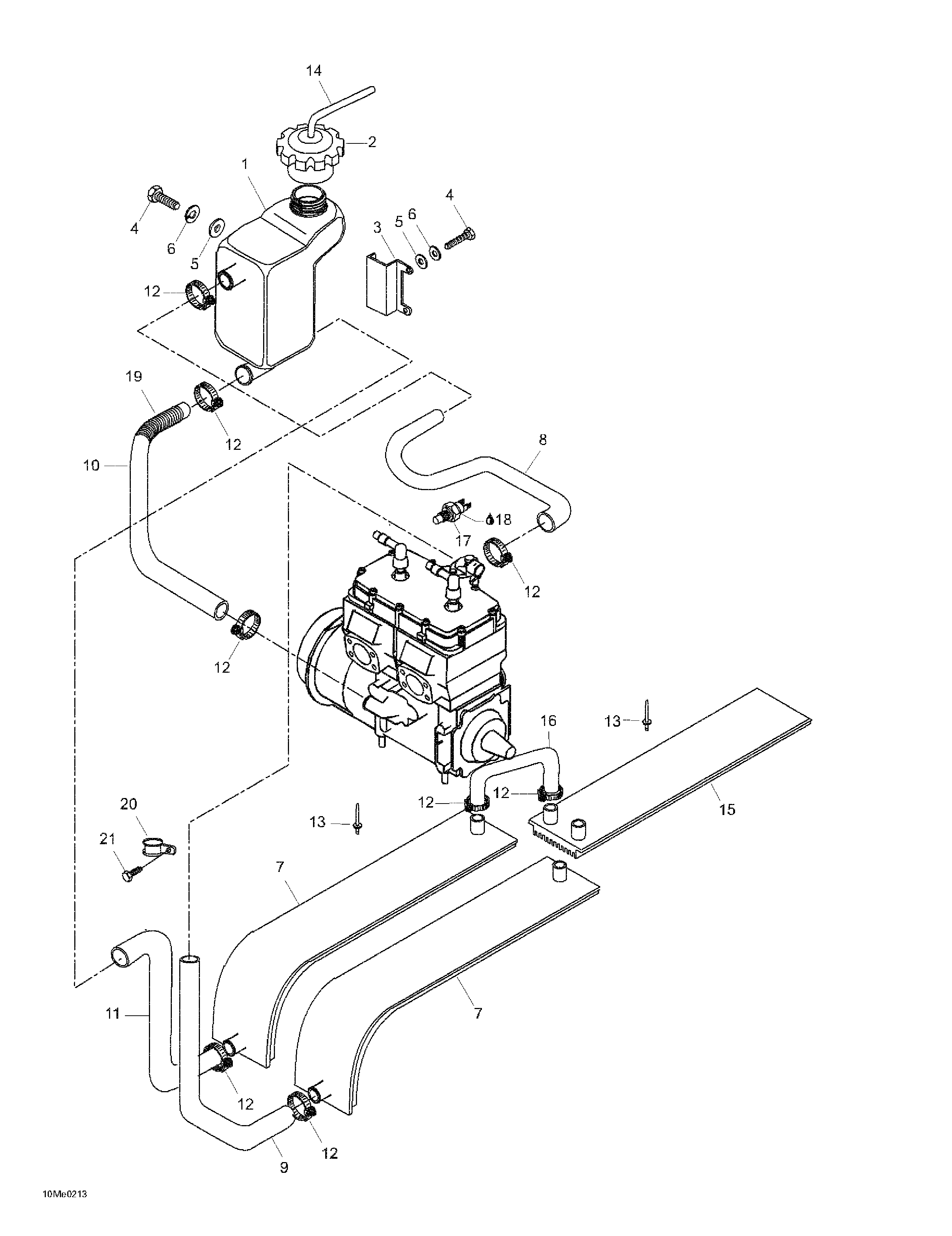

01- Cooling System (593) для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1M5142859 Coolant Tank. Skandic 600.Coolant Tank. Skandic 600.
-
2M21018 Cap. Skandic 600.Cap. Skandic 600.
-
3M5343345 Tank Support. Skandic 600.Tank Support. Skandic 600.
-
4207162044 Hex. Screw M6 x 20. Skandic 600.Hex. Screw M6 x 20. Skandic 600.
-
5M20009 Washer 6.4 mm. Skandic 600.Washer 6.4 mm. Skandic 600.
-
6234161471 Lock Washer 6 mm. Skandic 600.Lock Washer 6 mm. Skandic 600.
-
7M5146386 LH Radiator. Skandic 600.LH Radiator. Skandic 600.
-
M5146385 RH Radiator. Skandic 600.RH Radiator. Skandic 600.
-
8M5246634 Hose. Skandic 600.Hose. Skandic 600.
-
9M5346201 Hose. Skandic 600.Hose. Skandic 600.
-
10M5346635 Hose. Skandic 600.Hose. Skandic 600.
-
M5343357 Hose. Skandic 600.Hose. Skandic 600.
-
11M5347311 Tube. Skandic 600.Tube. Skandic 600.
-
12408800400 Tridon Gear Clamp. Skandic 600.Tridon Gear Clamp. Skandic 600.
-
13M36489 Rivet. Skandic 600.Rivet. Skandic 600.
-
14415080200 Overflow Line. Skandic 600.Overflow Line. Skandic 600.
-
15M5345916 Radiator. Skandic 600.Radiator. Skandic 600.
-
16M5445970 Tube. Skandic 600.Tube. Skandic 600.
-
17512047000 Temperature Sensor. Skandic 600.Temperature Sensor. Skandic 600.
-
18293800018 Loctite 592, 50 mL. Skandic 600.Loctite 592, 50 mL. Skandic 600.
-
19M5446767 Hose. Skandic 600.Hose. Skandic 600.
-
20M27011 Clip. Skandic 600.Clip. Skandic 600.
-
21M40322 Screw. Skandic 600.Screw. Skandic 600.
