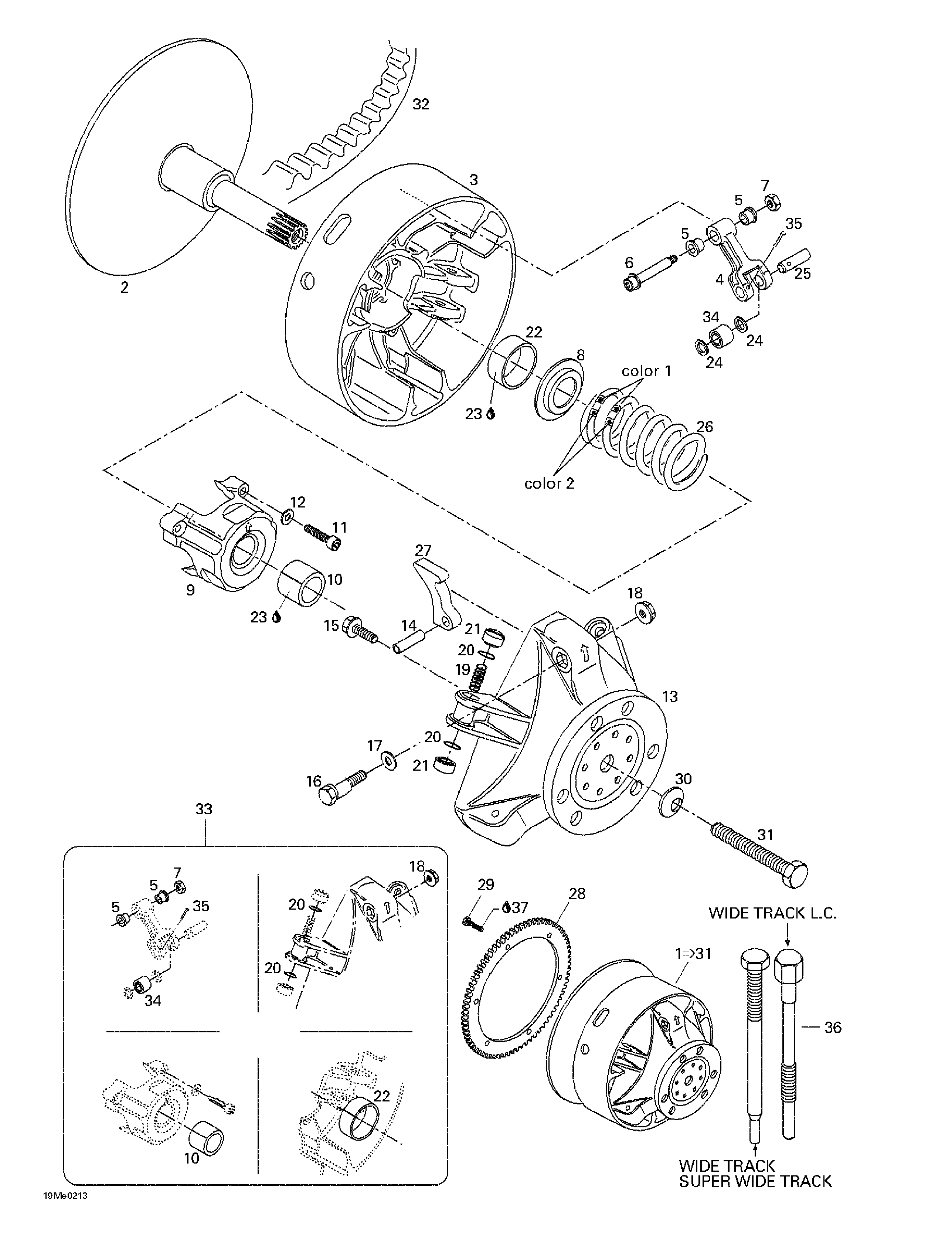

05- Drive Pulley для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
2417222250 Fixe Flange. Skandic 500F. Skandic 500F (SWT).Fixe Flange. Skandic 500F. Skandic 500F (SWT).
-
417222407 Fixe Flange. Skandic 600.Fixe Flange. Skandic 600.
-
3417222241 Sliding FlangeSliding Flange
-
4417222383 Lever-Ass'y. Includes 4 - 5.Lever-Ass'y. Includes 4 - 5.
-
5417004305 Flange BushingFlange Bushing
-
6417004800 Fitting Screw Ass'yFitting Screw Ass'y
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
8417222044 Spring SeatSpring Seat
-
9417222304 Spring Cover Ass'y. Includes 9 - 10.Spring Cover Ass'y. Includes 9 - 10.
-
10417004501 Sping Cover BushingSping Cover Bushing
-
11250000038 Allen Screw M6 x 40Allen Screw M6 x 40
-
12420245370 Friction-Washer 6 mmFriction-Washer 6 mm
-
13417222081 Gouvernor Cup Ass'yGouvernor Cup Ass'y
-
14732804009 Dowel Tube M8 x 24Dowel Tube M8 x 24
-
15210361890 Hex. Locking Screw M6 x 18Hex. Locking Screw M6 x 18
-
16417005500 Calibration ScrewCalibration Screw
-
17417005600 WasherWasher
-
18233061414 Locking Nut M6Locking Nut M6
-
19417005700 SpringSpring
-
20732401030 O-RingO-Ring
-
21417005800 Shoe SliderShoe Slider
-
22417004201 Bushing Outer HalfBushing Outer Half
-
23413703100 Loctite 609, 10ccLoctite 609, 10cc
-
24417004302 Thrust WasherThrust Washer
-
25417004309 Pin. Skandic 500F. Skandic 500F (SWT).Pin. Skandic 500F. Skandic 500F (SWT).
-
417004308 Pin. Skandic 600.Pin. Skandic 600.
-
26414689700 Spring (Yellow/Orange). Skandic 500F. Skandic 500F (SWT).Spring (Yellow/Orange). Skandic 500F. Skandic 500F (SWT).
-
414689800 Spring (Red/Red). Skandic 600.Spring (Red/Red). Skandic 600.
-
27417005290 Ramp 290Ramp 290
-
28415043100 Ring Gear (86 tooth). Skandic 500F. Skandic 500F (SWT).Ring Gear (86 tooth). Skandic 500F. Skandic 500F (SWT).
-
417300057 Ring Gear. Skandic 600.Ring Gear. Skandic 600.
-
29236281684 Screw M8 x 16Screw M8 x 16
-
30M20090 Conical Spring Washer. Skandic 500F. Skandic 500F (SWT).Conical Spring Washer. Skandic 500F. Skandic 500F (SWT).
-
M20110 Conical Spring Washer. Skandic 600.Conical Spring Washer. Skandic 600.
-
31417113800 Screw. Skandic 500F. Skandic 500F (SWT).Screw. Skandic 500F. Skandic 500F (SWT).
-
417120000 Screw. Skandic 600.Screw. Skandic 600.
-
32414633800 Drive BeltDrive Belt
-
33417008500 Clutch Repair KitClutch Repair Kit
-
34417003900 Roller Ass'yRoller Ass'y
-
35732958001 Cotter PinCotter Pin
-
36529007900 Puller Inner Half. Skandic 500F. Skandic 500F (SWT).Puller Inner Half. Skandic 500F. Skandic 500F (SWT).
-
529022400 Puller Inner Half. Skandic 600.Puller Inner Half. Skandic 600.
-
37293800005 Loctite 271, 10 mlLoctite 271, 10 ml
