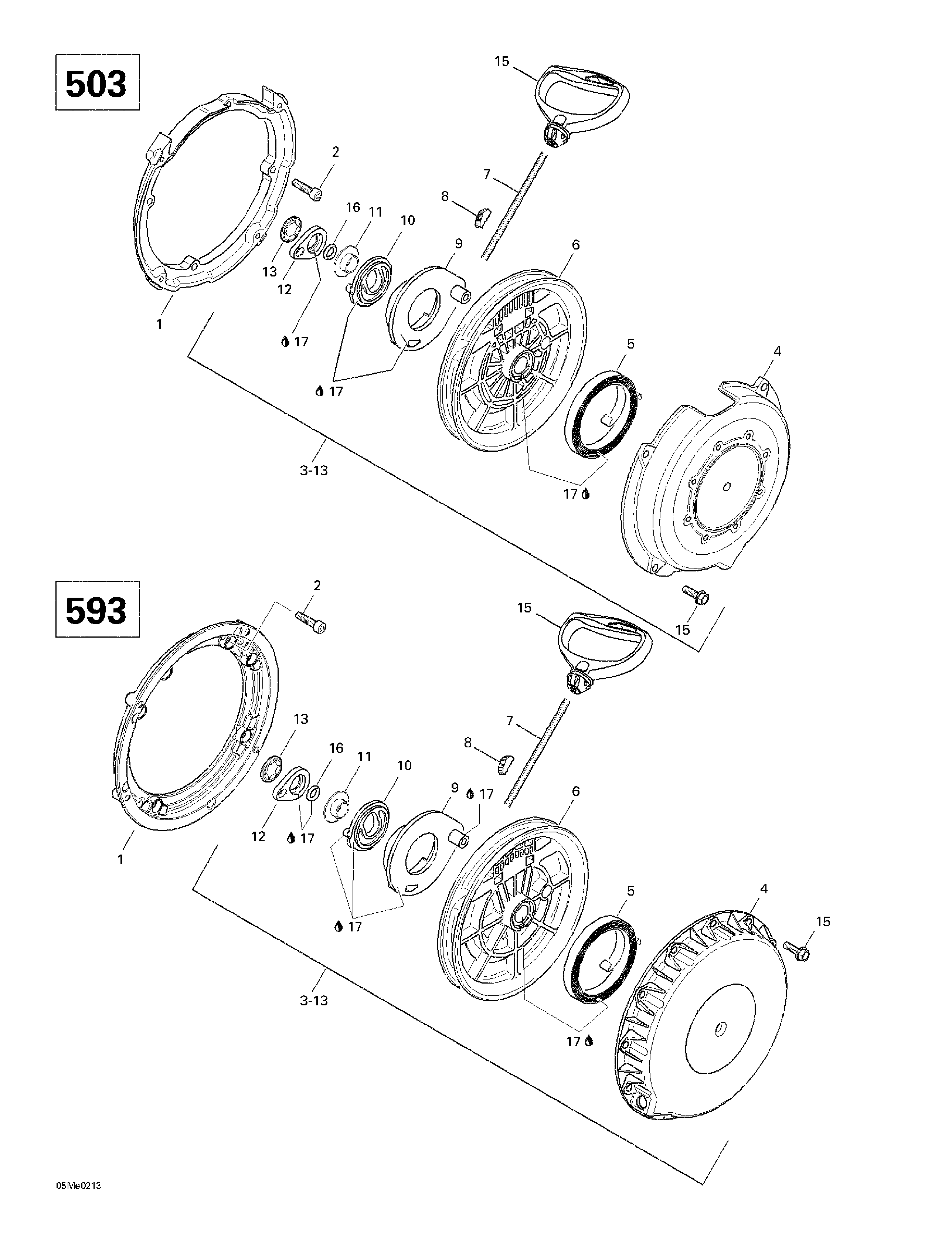

04- Rewind Starter (503) для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1420810952 Connecting Flange. Skandic 500F. Skandic 500F (SWT).Connecting Flange. Skandic 500F. Skandic 500F (SWT).
-
420810865 Connecting Flange. Skandic 600.Connecting Flange. Skandic 600.
-
2420840401 Socket Head Screw M6 x 22. Skandic 500F. Skandic 500F (SWT).Socket Head Screw M6 x 22. Skandic 500F. Skandic 500F (SWT).
-
420241236 Socket Head Screw M6 x 16. Skandic 600.Socket Head Screw M6 x 16. Skandic 600.
-
3420888217 Rewind Starter Assy. Includes 3 - 13. Skandic 500F. Skandic 500F (SWT).Rewind Starter Assy. Includes 3 - 13. Skandic 500F. Skandic 500F (SWT).
-
420887445 Rewind Starter Ass'y. Skandic 600.Rewind Starter Ass'y. Skandic 600.
-
4420811345 Starter Housing. Skandic 500F. Skandic 500F (SWT).Starter Housing. Skandic 500F. Skandic 500F (SWT).
-
420811400 Starter Housing. Skandic 600.Starter Housing. Skandic 600.
-
5420939115 Rewind Spring Ass'yRewind Spring Ass'y
-
6420852480 Rope Sheave. Skandic 500F. Skandic 500F (SWT).Rope Sheave. Skandic 500F. Skandic 500F (SWT).
-
420852285 Rope Sheave. Skandic 600.Rope Sheave. Skandic 600.
-
7412500100 Starter Rope 2200 mmStarter Rope 2200 mm
-
8420852070 Key ClampKey Clamp
-
9420852296 Pawl. Skandic 500F. Skandic 500F (SWT).Pawl. Skandic 500F. Skandic 500F (SWT).
-
420852297 Pawl. Skandic 600.Pawl. Skandic 600.
-
10420852303 Pawl LockPawl Lock
-
11420847925 Stage SleeveStage Sleeve
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420941250 Hex. Flanged Screw M6 x 20. Skandic 500F. Skandic 500F (SWT).Hex. Flanged Screw M6 x 20. Skandic 500F. Skandic 500F (SWT).
-
420941256 Hex. Flanged Screw M6 x 30. Skandic 600.Hex. Flanged Screw M6 x 30. Skandic 600.
-
15572084400 Starter GripStarter Grip
-
16420250400 O-RingO-Ring
-
17420899763 Molykote PG 54, 10gMolykote PG 54, 10g
