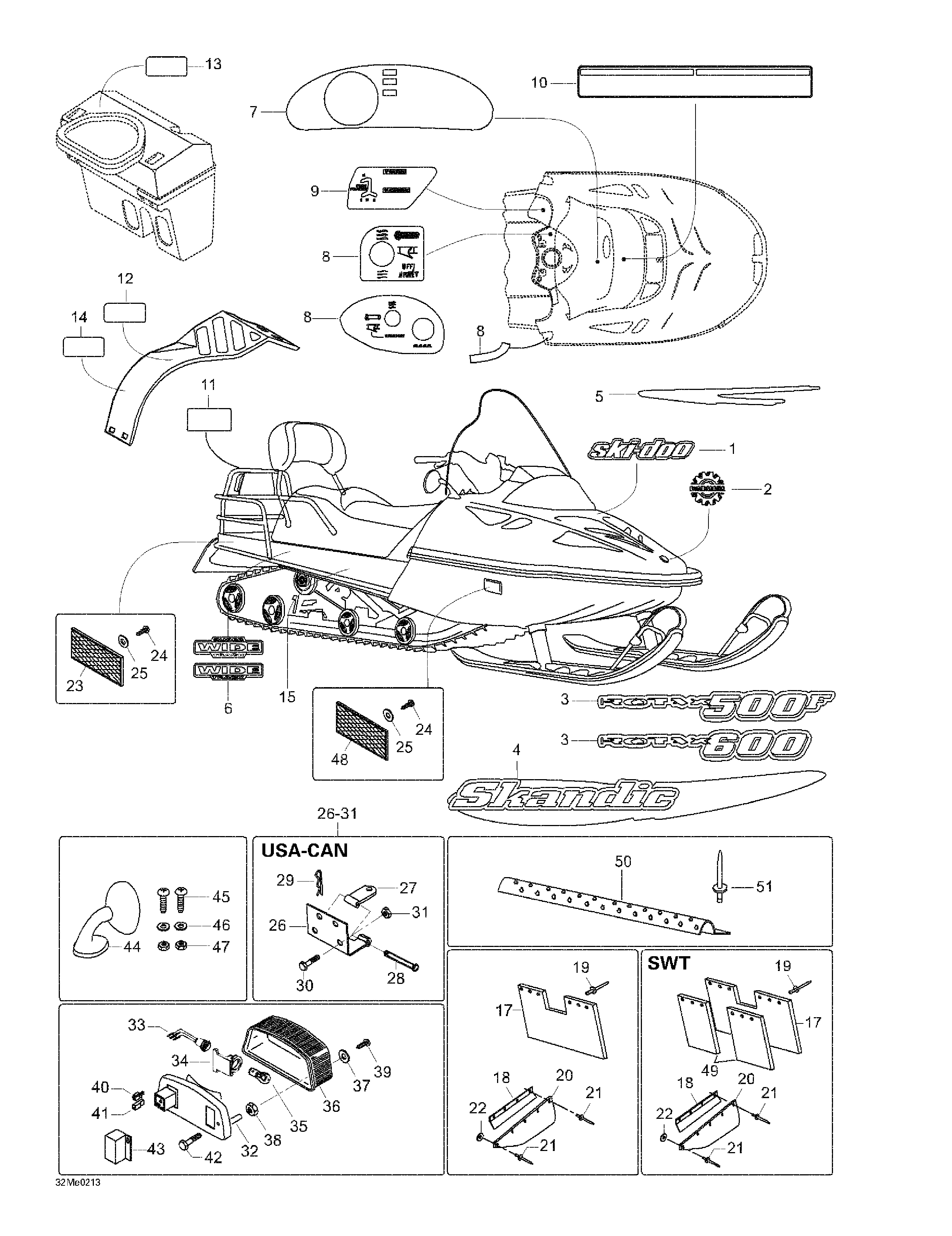

09- Decals And Accessories для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1516000117 > Decal. Skandic 500F. Skandic 600.> Decal. Skandic 500F. Skandic 600.
-
2516000983 > Logo> Logo
-
3516001199 > Decal. Skandic 500F. Skandic 500F (SWT).> Decal. Skandic 500F. Skandic 500F (SWT).
-
516001193 > Decal. Skandic 600.> Decal. Skandic 600.
-
4415128158 Side Decal KitSide Decal Kit
-
5415128159 Upper Side Decal KitUpper Side Decal Kit
-
6516000024 Frame Decal. Skandic 500F. Skandic 600.Frame Decal. Skandic 500F. Skandic 600.
-
516000025 Frame Decal. Skandic 500F (SWT).Frame Decal. Skandic 500F (SWT).
-
7418000808 Dash Decal. Skandic 500F. Skandic 500F (SWT).Dash Decal. Skandic 500F. Skandic 500F (SWT).
-
516000981 Dash Decal. Skandic 600.Dash Decal. Skandic 600.
-
8414996100 Heat Grip Decal. Skandic 500F. Skandic 500F (SWT).Heat Grip Decal. Skandic 500F. Skandic 500F (SWT).
-
516000982 Heat Grip Decal. Skandic 600.Heat Grip Decal. Skandic 600.
-
9516001201 Reverse DecalReverse Decal
-
10516001229 Warning LabelWarning Label
-
11516001243 Instruction Label (Hitch)Instruction Label (Hitch)
-
12516001190 Warning Label (Belt Guard)Warning Label (Belt Guard)
-
13516001191 Warning Label (Air Intake)Warning Label (Air Intake)
-
14M5346653 Instruction Label. Skandic 500F. Skandic 600.Instruction Label. Skandic 500F. Skandic 600.
-
15M5147741 Frame. Skandic 500F.Frame. Skandic 500F.
-
M5146038 Frame. Skandic 500F (SWT).Frame. Skandic 500F (SWT).
-
M5145027 Frame. Skandic 600.Frame. Skandic 600.
-
16M28136 Plug (Not Shown)Plug (Not Shown)
-
17M538629 Snow Guard. Skandic 500F. Skandic 600.Snow Guard. Skandic 500F. Skandic 600.
-
M539945 Snow Guard. Skandic 500F (SWT).Snow Guard. Skandic 500F (SWT).
-
18M5340532 SupportSupport
-
19M36036 Rivet (Black). Skandic 500F. Skandic 600.Rivet (Black). Skandic 500F. Skandic 600.
-
M36037 Rivet. Skandic 500F (SWT).Rivet. Skandic 500F (SWT).
-
20M5142828 Lateral Snow Guard. Skandic 500F. Skandic 600.Lateral Snow Guard. Skandic 500F. Skandic 600.
-
M5340136 Snow Guard. Skandic 500F (SWT).Snow Guard. Skandic 500F (SWT).
-
21M36097 RivetRivet
-
22M20037 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
23414510100 Reflector (Red)Reflector (Red)
-
26M5344151 Plate. Skandic 500F. Skandic 600.Plate. Skandic 500F. Skandic 600.
-
27M548745 Hitch Plate. Skandic 500F. Skandic 600.Hitch Plate. Skandic 500F. Skandic 600.
-
28560309200 Pin-Retainer. Skandic 500F. Skandic 600.Pin-Retainer. Skandic 500F. Skandic 600.
-
29M41031 Pin. Skandic 500F. Skandic 600.Pin. Skandic 500F. Skandic 600.
-
30M40336 Hex. ScrewHex. Screw
-
31232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
32414979400 Taillamp HousingTaillamp Housing
-
33414979410 SocketSocket
-
34414979411 Rubber DamperRubber Damper
-
35410504000 Bulb (Tail Lamp)Bulb (Tail Lamp)
-
36414513700 LensLens
-
37414516400 WasherWasher
-
38M33200 NutNut
-
39M40613 ScrewScrew
-
40M42178 Female TerminalFemale Terminal
-
41M42179 Female HousingFemale Housing
-
42207063044 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
43M5345713 AdaptorAdaptor
-
44414971910 R.H. Mirror. Includes 44 - 47.R.H. Mirror. Includes 44 - 47.
-
414972010 L.H. MirrorL.H. Mirror
-
45M40167 ScrewScrew
-
46M20001 WasherWasher
-
47232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
48414510200 Reflector (Amber)Reflector (Amber)
-
49M5341770 Support. Skandic 500F (SWT).Support. Skandic 500F (SWT).
-
50M5345052 Strip. Skandic 600.Strip. Skandic 600.
-
51M36083 Rivet. Skandic 600.Rivet. Skandic 600.
