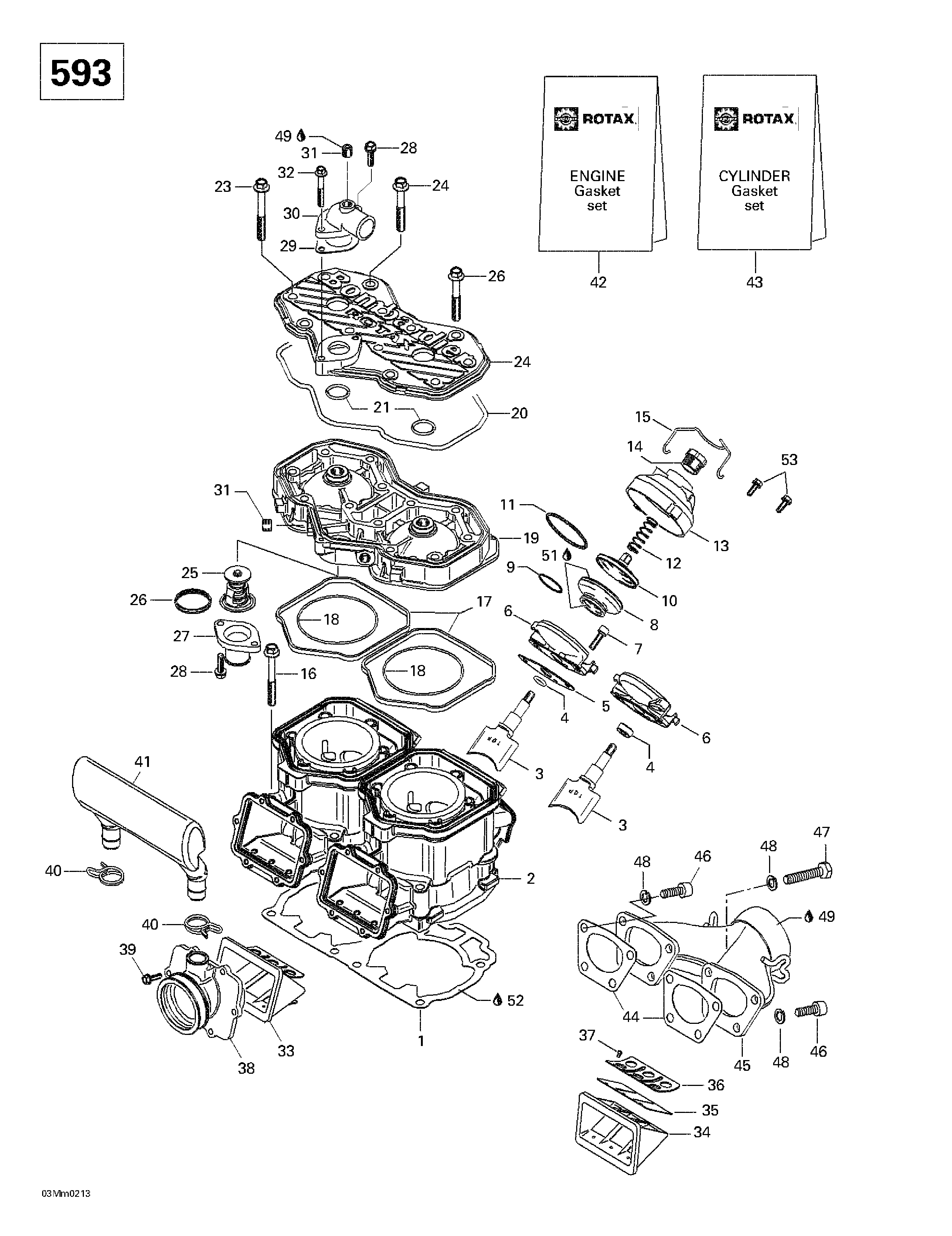

01- Cylinder, Exhaust Manifold (593) для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1420931584 Double Gasket 0.8 mm. Skandic 600.Double Gasket 0.8 mm. Skandic 600.
-
420931962 Double Gasket 0.7 mm. Skandic 600.Double Gasket 0.7 mm. Skandic 600.
-
420931582 Double Gasket 0.6 mm. Skandic 600.Double Gasket 0.6 mm. Skandic 600.
-
420931583 Double Gasket 0.5 mm. Skandic 600.Double Gasket 0.5 mm. Skandic 600.
-
420931581 Double Gasket 0.4 mm. Skandic 600.Double Gasket 0.4 mm. Skandic 600.
-
2420613620 Cylinder with Sleeve. Skandic 600.Cylinder with Sleeve. Skandic 600.
-
3420854370 Exhaust Valve. Skandic 600.Exhaust Valve. Skandic 600.
-
4420430110 O'Ring. Skandic 600.O'Ring. Skandic 600.
-
420950730 Oil Seal. Skandic 600.Oil Seal. Skandic 600.
-
5420250239 Gasket. Skandic 600.Gasket. Skandic 600.
-
6420854267 Valve Housing. Skandic 600.Valve Housing. Skandic 600.
-
420854266 Valve Housing. Skandic 600.Valve Housing. Skandic 600.
-
7205062044 Socket Head Screw M6 x 20. Skandic 600.Socket Head Screw M6 x 20. Skandic 600.
-
8290260723 Bellows. Skandic 600.Bellows. Skandic 600.
-
9420838253 Spring Clamp. Skandic 600.Spring Clamp. Skandic 600.
-
10420854449 Exhaust Valve. Skandic 600.Exhaust Valve. Skandic 600.
-
11290239048 Hose Spring. Skandic 600.Hose Spring. Skandic 600.
-
12420239948 Spring. Skandic 600.Spring. Skandic 600.
-
13420911552 Valve Cover. Skandic 600.Valve Cover. Skandic 600.
-
14420241221 Adjuster Screw. Skandic 600.Adjuster Screw. Skandic 600.
-
15290838083 Spring Clip. Skandic 600.Spring Clip. Skandic 600.
-
16420841951 Hex. Screw M8 x 68.5. Skandic 600.Hex. Screw M8 x 68.5. Skandic 600.
-
17420931590 Rubber Ring. Skandic 600.Rubber Ring. Skandic 600.
-
18293300026 O'Ring. Skandic 600.O'Ring. Skandic 600.
-
19420923452 Cylinder Head (Silver). Skandic 600.Cylinder Head (Silver). Skandic 600.
-
20290950320 O'Ring. Skandic 600.O'Ring. Skandic 600.
-
21420430782 O'Ring. Skandic 600.O'Ring. Skandic 600.
-
22420923460 Cylinder Head Cover (Silver). Skandic 600.Cylinder Head Cover (Silver). Skandic 600.
-
23420841306 Hex. Collar Screw M8 x 65. Skandic 600.Hex. Collar Screw M8 x 65. Skandic 600.
-
24420941621 Hex. Collar Screw M8 x 56.5. Skandic 600.Hex. Collar Screw M8 x 56.5. Skandic 600.
-
25420922515 Thermostat 42d. Skandic 600.Thermostat 42d. Skandic 600.
-
26420931270 Sealing Ring. Skandic 600.Sealing Ring. Skandic 600.
-
27420922025 Bent Outlet Socket. Skandic 600.Bent Outlet Socket. Skandic 600.
-
28420941250 Screw M6 x 20. Skandic 600.Screw M6 x 20. Skandic 600.
-
29420850338 Gasket. Skandic 600.Gasket. Skandic 600.
-
30420922062 Bent Outlet Socket. Skandic 600.Bent Outlet Socket. Skandic 600.
-
31420240480 Plug Screw 1/8-27 NPT. Skandic 600.Plug Screw 1/8-27 NPT. Skandic 600.
-
32420941451 Hex. Collar Screw M6 x 40. Skandic 600.Hex. Collar Screw M6 x 40. Skandic 600.
-
33420924519 Reed Valve Ass'y. Includes 33 - 37. Skandic 600.Reed Valve Ass'y. Includes 33 - 37. Skandic 600.
-
35420924532 Pedal Reed. Skandic 600.Pedal Reed. Skandic 600.
-
36420924539 Reed Pedal Stop. Skandic 600.Reed Pedal Stop. Skandic 600.
-
37420941215 Screw M3 x 5. Skandic 600.Screw M3 x 5. Skandic 600.
-
38420867860 Carburetor Socket. Skandic 600.Carburetor Socket. Skandic 600.
-
39420941925 Screw M5 x 16. Skandic 600.Screw M5 x 16. Skandic 600.
-
40420851440 Clamp. Skandic 600.Clamp. Skandic 600.
-
41420867815 Intake Resonator. Skandic 600.Intake Resonator. Skandic 600.
-
42420888583 Engine Gasket Set. Skandic 600.Engine Gasket Set. Skandic 600.
-
43420888588 Cylinder Gasket Set. Skandic 600.Cylinder Gasket Set. Skandic 600.
-
44420931610 Gasket. Skandic 600.Gasket. Skandic 600.
-
45M5245177 Exhaust Manifold. Skandic 600.Exhaust Manifold. Skandic 600.
-
46M40135 Socket Head Screw M8 X 30. Skandic 600.Socket Head Screw M8 X 30. Skandic 600.
-
47207182044 Hex. Screw M8 x 20. Skandic 600.Hex. Screw M8 x 20. Skandic 600.
-
48234181401 Lock Washer 8 mm. Skandic 600.Lock Washer 8 mm. Skandic 600.
-
49293800090 Sealant, Loctite 17914, 80 ml. Skandic 600.Sealant, Loctite 17914, 80 ml. Skandic 600.
-
50293800060 Loctite 243, 10 ml. Skandic 600.Loctite 243, 10 ml. Skandic 600.
-
51413707000 Molykote 111. Skandic 600.Molykote 111. Skandic 600.
-
52293800038 Loctite 518, 50 ml. Skandic 600.Loctite 518, 50 ml. Skandic 600.
-
53420841555 Tapping Screw M5 x 20. Skandic 600.Tapping Screw M5 x 20. Skandic 600.
