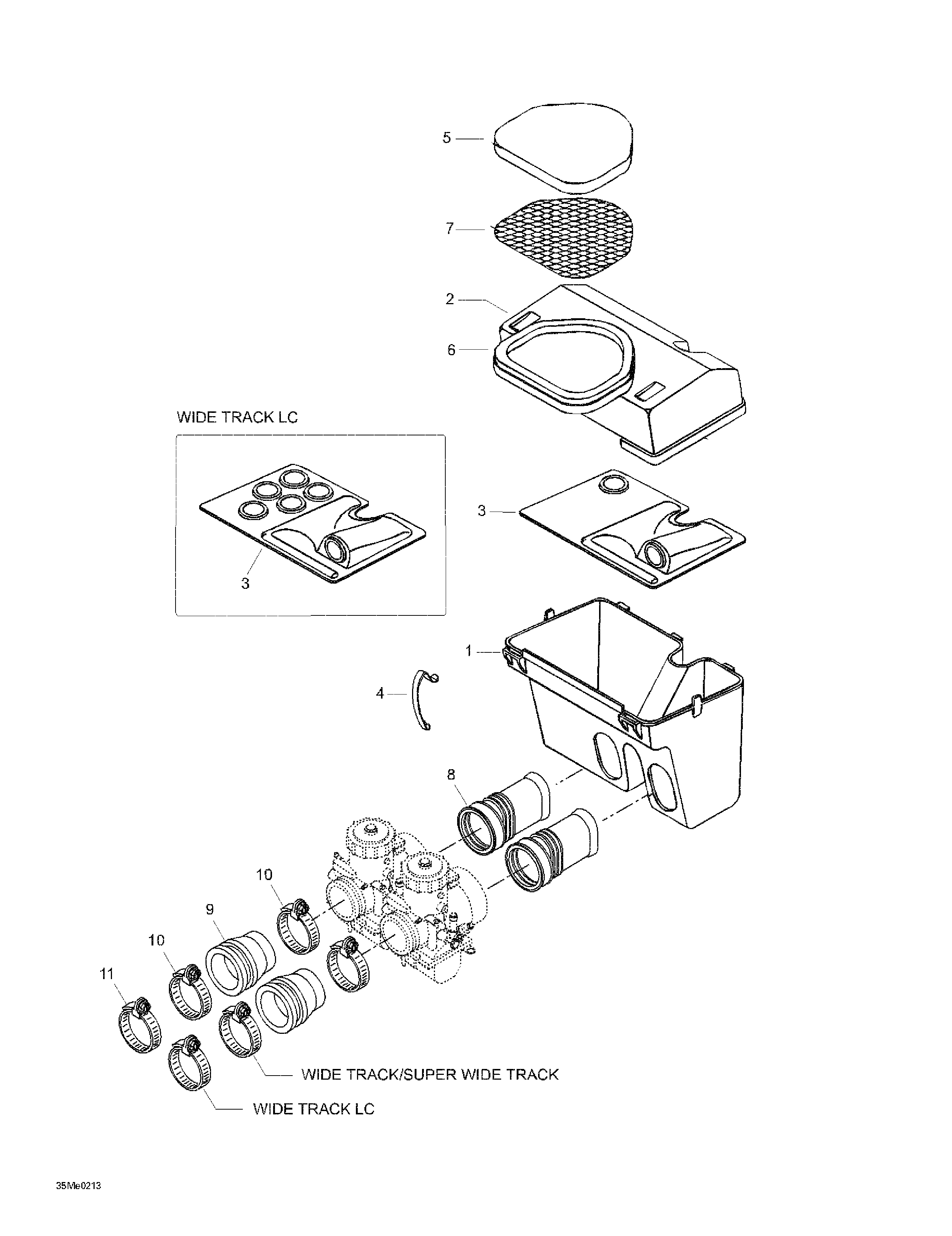

02- Air Silencer для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1M5142751 Air Intake. Skandic 500F. Skandic 500F (SWT).Air Intake. Skandic 500F. Skandic 500F (SWT).
-
M5246623 Air Intake. Skandic 600.Air Intake. Skandic 600.
-
2M5142786 Intake CoverIntake Cover
-
3M5344795 Tube Plate. Skandic 500F. Skandic 500F (SWT).Tube Plate. Skandic 500F. Skandic 500F (SWT).
-
M5346744 Tube Plate. Skandic 600.Tube Plate. Skandic 600.
-
4M5442836 Spring LockSpring Lock
-
5M5342958 Air FilterAir Filter
-
6M5342959 Sealing FoamSealing Foam
-
7M5342960 Intake GrillIntake Grill
-
8M5142626 Air Intake Adaptor. Skandic 500F. Skandic 500F (SWT).Air Intake Adaptor. Skandic 500F. Skandic 500F (SWT).
-
570134300 Air Intake Adaptor. Skandic 600.Air Intake Adaptor. Skandic 600.
-
9M5342627 Carburetor Adaptor. Skandic 500F. Skandic 500F (SWT).Carburetor Adaptor. Skandic 500F. Skandic 500F (SWT).
-
10414532700 CollarCollar
-
11414532800 Collar. Skandic 600.Collar. Skandic 600.
