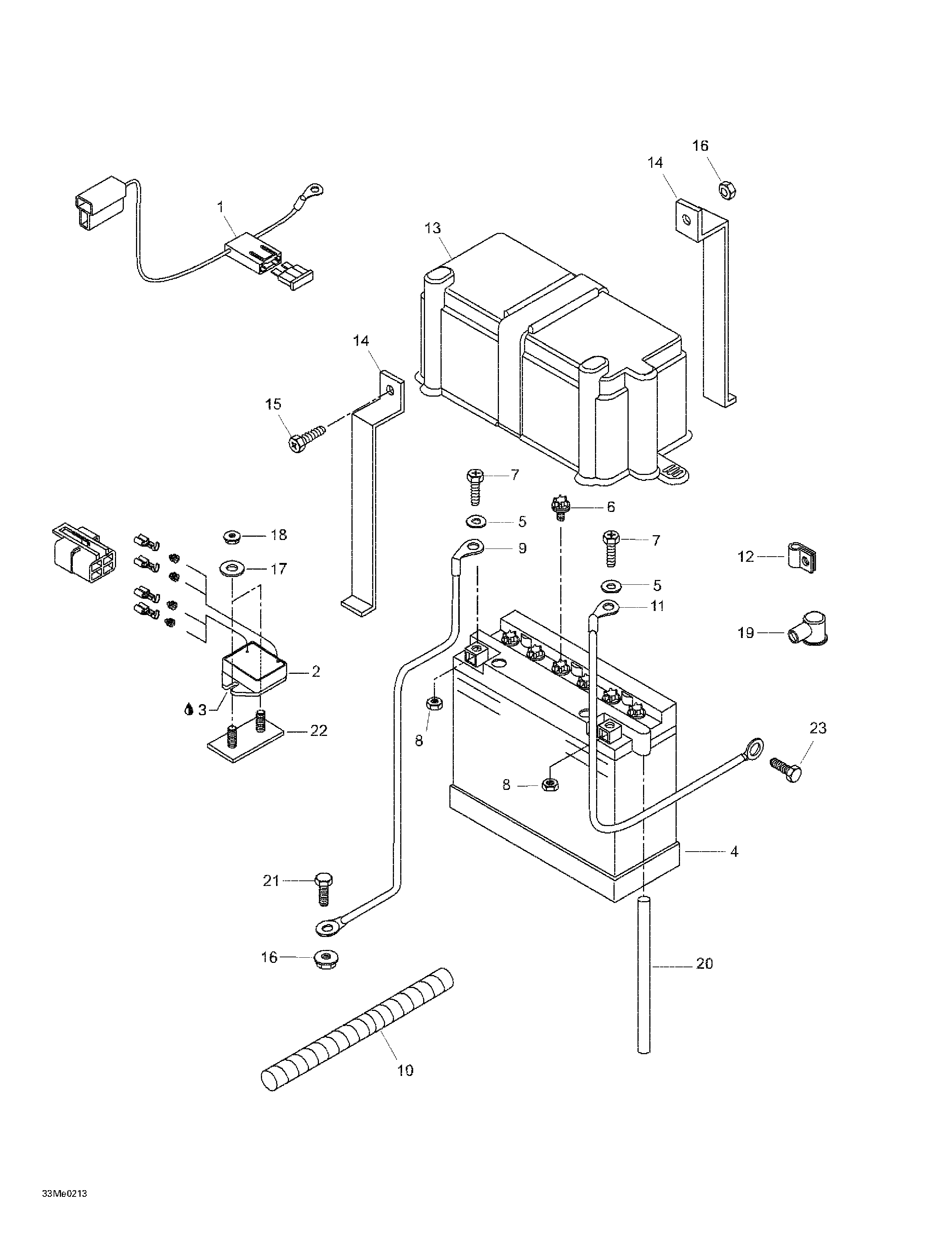

10- Electrical System 2 для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1M5444382 Fuse HolderFuse Holder
-
2515175546 Voltage Regulator. Skandic 500F. Skandic 500F (SWT).Voltage Regulator. Skandic 500F. Skandic 500F (SWT).
-
M5446629 Voltage Regulator. Skandic 600.Voltage Regulator. Skandic 600.
-
3413707500 Grease Tube LMZ, 400 grGrease Tube LMZ, 400 gr
-
4410301100 Battery. Includes 4 - 8.Battery. Includes 4 - 8.
-
5391302100 Flat WasherFlat Washer
-
6410300800 Battery CapBattery Cap
-
7207161644 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
8232061414 Nut M6Nut M6
-
9M5446596 Ground Wire. Skandic 600.Ground Wire. Skandic 600.
-
M549886 Ground Wire. Skandic 500F. Skandic 500F (SWT).Ground Wire. Skandic 500F. Skandic 500F (SWT).
-
10M28015 Housing. Skandic 500F. Skandic 500F (SWT).Housing. Skandic 500F. Skandic 500F (SWT).
-
11M549887 Battery Wire. Skandic 500F. Skandic 500F (SWT).Battery Wire. Skandic 500F. Skandic 500F (SWT).
-
M5446597 Battery Wire. Skandic 600.Battery Wire. Skandic 600.
-
12M27025 Wire Holder. Skandic 500F. Skandic 500F (SWT).Wire Holder. Skandic 500F. Skandic 500F (SWT).
-
13570022000 Battery CoverBattery Cover
-
14M5442811 Steel StripSteel Strip
-
15207162544 Screw M6 x 25Screw M6 x 25
-
16M33200 Nut M6Nut M6
-
17M20009 Washer 6 mmWasher 6 mm
-
18232561414 Nut M6Nut M6
-
19570151000 Protection CapProtection Cap
-
20M39055 TubeTube
-
21M40066 Allen Screw M8 x 16. Skandic 600.Allen Screw M8 x 16. Skandic 600.
-
M40327 Allen Screw M6 x 12. Skandic 500F. Skandic 500F (SWT).Allen Screw M6 x 12. Skandic 500F. Skandic 500F (SWT).
-
22M5445079 Plate. Skandic 600.Plate. Skandic 600.
-
23M40866 Screw. Skandic 600.Screw. Skandic 600.
