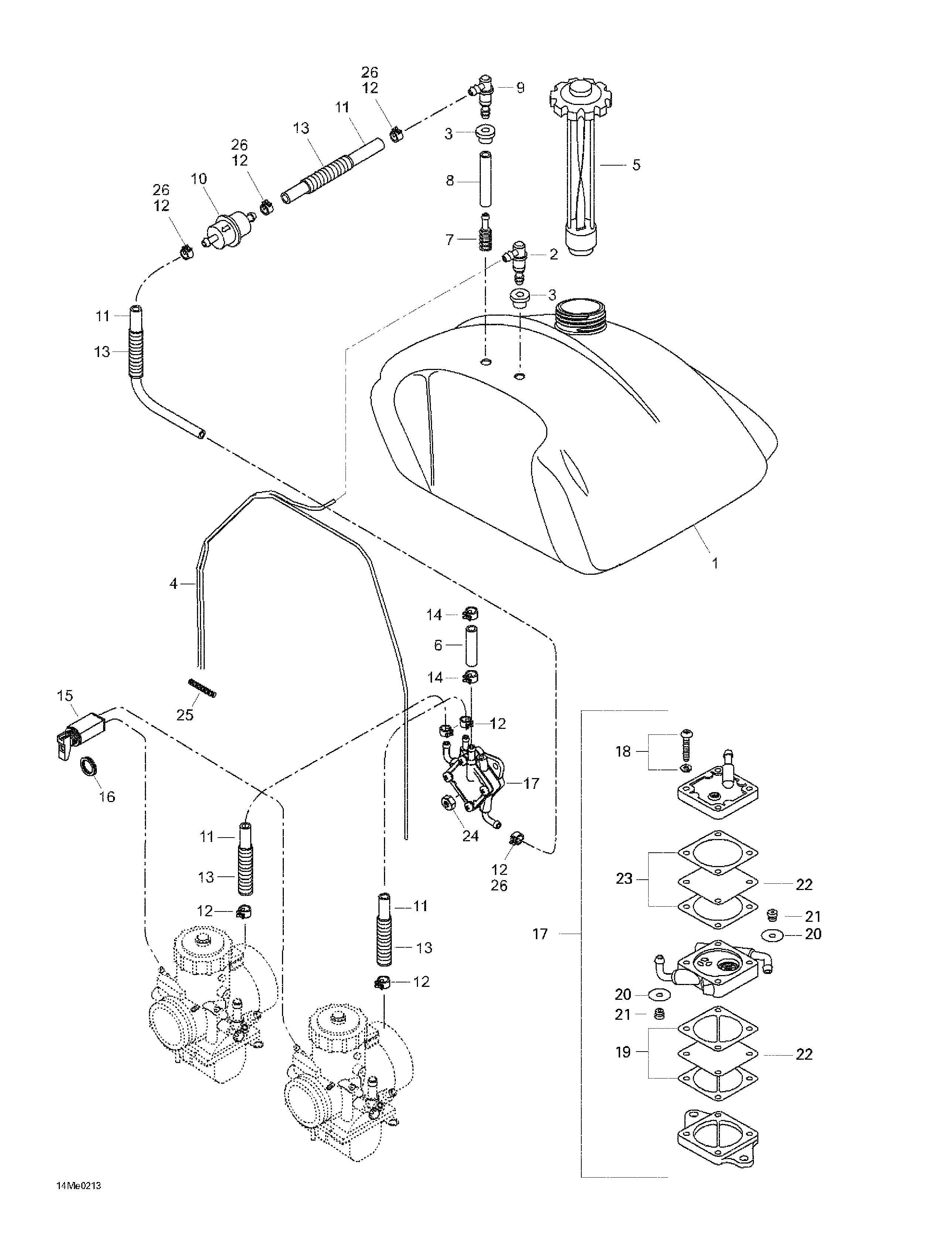

02- Fuel System для BRP Ski-Doo Skandic 500/600 - 2002
-
№АртикулНазвание
-
1M519393 Fuel TankFuel Tank
-
2M533535 Male ConnectorMale Connector
-
3M28037 GrommetGrommet
-
4M39035 HoseHose
-
5572161200 Fuel CapFuel Cap
-
6415080200 Fuel LineFuel Line
-
7414872100 Fuel FilterFuel Filter
-
8M39048 HoseHose
-
9M5341709 Male ConnectorMale Connector
-
10414363600 Fuel Filter. Skandic 500F. Skandic 500F (SWT).Fuel Filter. Skandic 500F. Skandic 500F (SWT).
-
414536500 Filter. Skandic 600.Filter. Skandic 600.
-
11M39004 Hose. Skandic 500F. Skandic 500F (SWT).Hose. Skandic 500F. Skandic 500F (SWT).
-
415080700 Hose. Skandic 600.Hose. Skandic 600.
-
12M27086 Spring ClampSpring Clamp
-
13M28012 Housing. Skandic 500F. Skandic 500F (SWT).Housing. Skandic 500F. Skandic 500F (SWT).
-
M28015 Housing. Skandic 600.Housing. Skandic 600.
-
14414420700 Spring ClampSpring Clamp
-
15M535482 Choke CableChoke Cable
-
16414977200 Plastic NutPlastic Nut
-
17M19058 Fuel Pump. Includes 17 - 23. Skandic 500F. Skandic 500F (SWT).Fuel Pump. Includes 17 - 23. Skandic 500F. Skandic 500F (SWT).
-
M19113 Fuel Pump. Skandic 600.Fuel Pump. Skandic 600.
-
18404131600 Screw. Skandic 500F. Skandic 500F (SWT).Screw. Skandic 500F. Skandic 500F (SWT).
-
19404902300 Gasket. Skandic 500F. Skandic 500F (SWT).Gasket. Skandic 500F. Skandic 500F (SWT).
-
20404902100 Grommet. Skandic 500F. Skandic 500F (SWT).Grommet. Skandic 500F. Skandic 500F (SWT).
-
21404900300 Valve. Skandic 500F. Skandic 500F (SWT).Valve. Skandic 500F. Skandic 500F (SWT).
-
22404902200 Diaphragm. Skandic 500F. Skandic 500F (SWT).Diaphragm. Skandic 500F. Skandic 500F (SWT).
-
23404902400 Gasket. Skandic 500F. Skandic 500F (SWT).Gasket. Skandic 500F. Skandic 500F (SWT).
-
24232561414 Hex. Elastic Nut M6Hex. Elastic Nut M6
-
25M25006 SpringSpring
-
26414415200 Spring Clamp. Skandic 600.Spring Clamp. Skandic 600.
