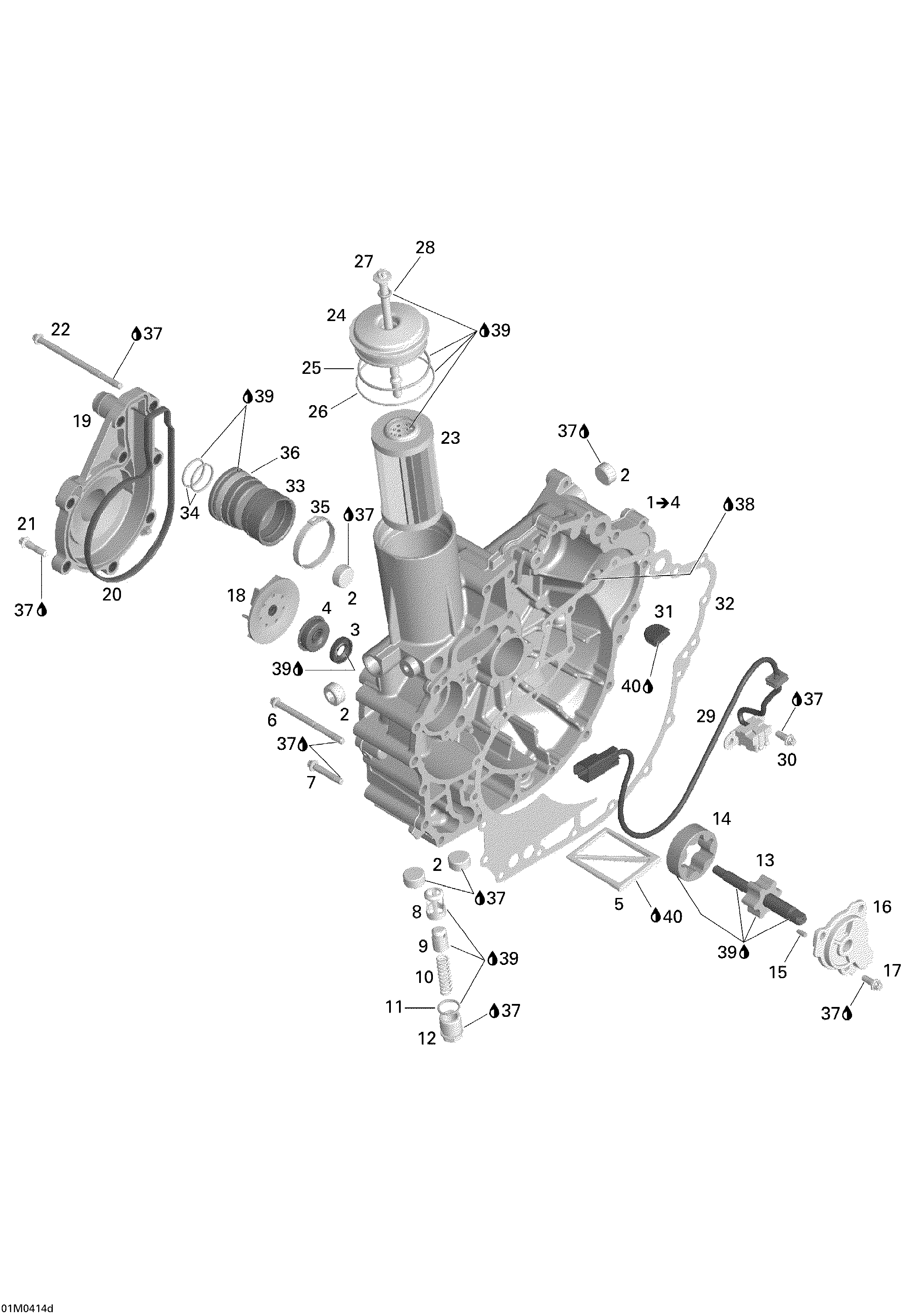

01- Clutch Cover, Magneto Generator для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1420812462 Timing Drive Cover Ass'Y. Includes 1 to 4Timing Drive Cover Ass'Y. Includes 1 to 4
-
2420641313 Plug Screw M30Plug Screw M30
-
3420650310 Oil SealOil Seal
-
4420650370 Rotary SealRotary Seal
-
5420956950 Oil SieveOil Sieve
-
6420641228 Torx Flanged Screw M6 X 8Torx Flanged Screw M6 X 8
-
7420641258 Torx Flanged Screw M6 X 35Torx Flanged Screw M6 X 35
-
8420256605 Valve Seat SleeveValve Seat Sleeve
-
9420256630 Piston ValvePiston Valve
-
10420939210 Compression SpringCompression Spring
-
11420230890 O-RingO-Ring
-
12420641051 Plug Screw M20Plug Screw M20
-
13420837472 Pump Shaft Ass'YPump Shaft Ass'Y
-
14420956675 Oil Pump Rotor 16mmOil Pump Rotor 16mm
-
15420929070 Needle PinNeedle Pin
-
16420811590 Oil Pump CoverOil Pump Cover
-
17420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
18420922801 ImpellerImpeller
-
19420822140 Water Pump HousingWater Pump Housing
-
20420950840 GasketGasket
-
21420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
22420641338 Torx Flanged Screw M6 X 105Torx Flanged Screw M6 X 105
-
23420956741 Oil FilterOil Filter
-
24420610326 Oil Filter CoverOil Filter Cover
-
25420230920 O-RingO-Ring
-
26420850500 O-RingO-Ring
-
27420641105 Hex Screw M8 X 140.5Hex Screw M8 X 140.5
-
28420950860 O-RingO-Ring
-
29420664140 Crankshaft SensorCrankshaft Sensor
-
30420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
31420660930 Rubber PlugRubber Plug
-
32420931130 GasketGasket
-
33420832750 Ball Bearing Ass'Y. Includes 33 to 34Ball Bearing Ass'Y. Includes 33 to 34
-
34420631610 O-RingO-Ring
-
35420851653 Gear ClampGear Clamp
-
36420853023 Gear ClampGear Clamp
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38293550030 Grease, Super LubeGrease, Super Lube
-
39293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 LiterEngine Oil 4 Strokes, 0W40, 12 X 1 Liter
-
40293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
