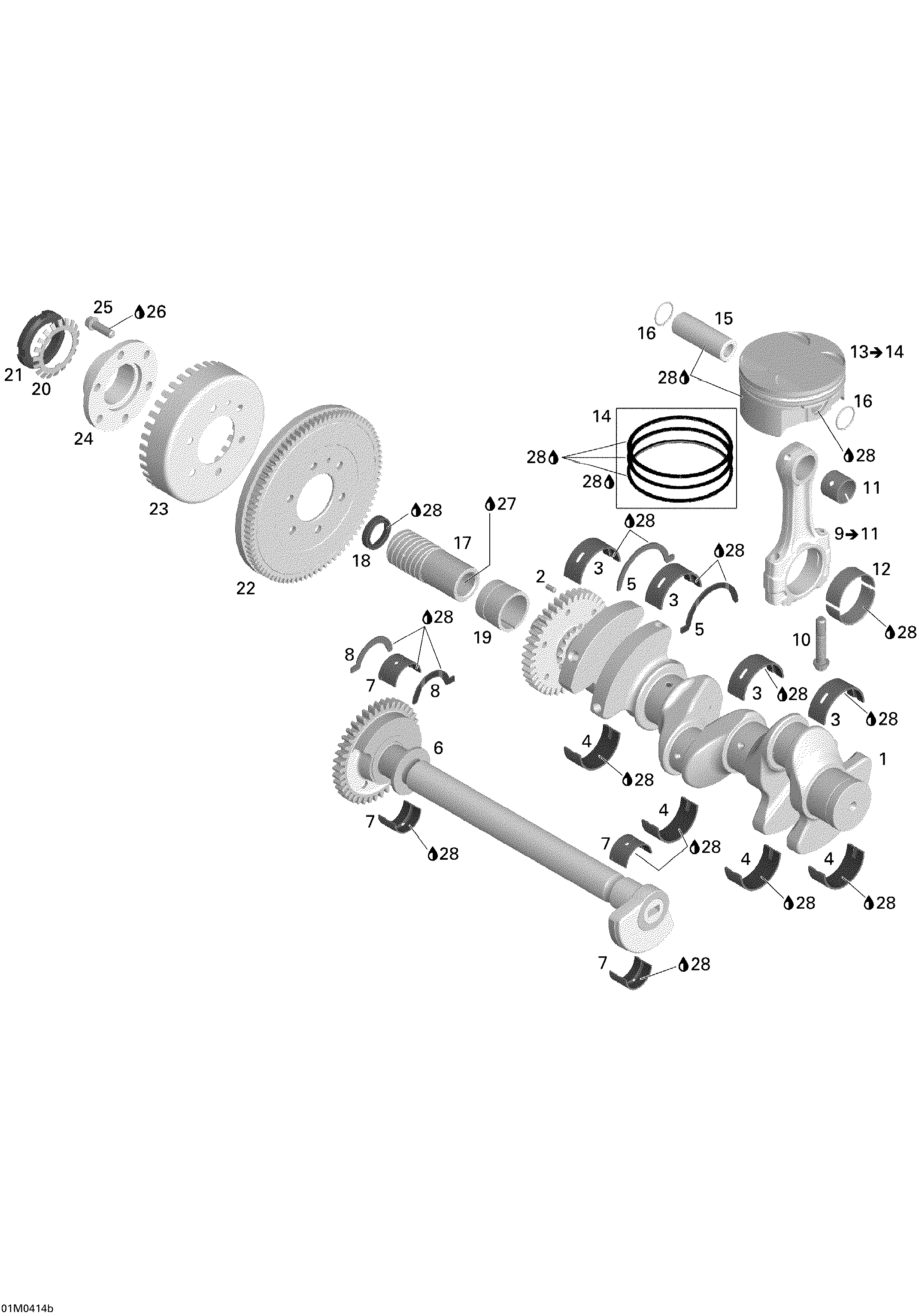

01- Crankshaft, Pistons And Balance Shaft для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1420819078 Crankshaft Ass'YCrankshaft Ass'Y
-
2420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
3420933455 Plain Half-BearingPlain Half-Bearing
-
4420933465 Plain Half-BearingPlain Half-Bearing
-
5420933475 Half-RingHalf-Ring
-
6420837555 Balance Shaft Ass'YBalance Shaft Ass'Y
-
7420933440 Plain Half-BearingPlain Half-Bearing
-
8420933470 Half-RingHalf-Ring
-
9420917515 Connecting Rod Ass'Y. Includes 9 to 11Connecting Rod Ass'Y. Includes 9 to 11
-
10420640990 Connecting Rod M10 X 1Connecting Rod M10 X 1
-
11420933510 Bearing SleeveBearing Sleeve
-
12420933520 Half-BearingHalf-Bearing
-
13420296565 Piston Ass'Y 99.96 mm (Standard). Includes 13 to 14Piston Ass'Y 99.96 mm (Standard). Includes 13 to 14
-
13420296566 Piston Ass'Y 100.21 mm (Oversize). Includes 13 to 14Piston Ass'Y 100.21 mm (Oversize). Includes 13 to 14
-
14420888864 Piston Set Ring (Standard)Piston Set Ring (Standard)
-
14420888865 Piston Set Ring (Oversize)Piston Set Ring (Oversize)
-
15420216250 Piston PinPiston Pin
-
16420845580 Monohook CirclipMonohook Circlip
-
17420847954 Output SleeveOutput Sleeve
-
18420630550 Sealing RingSealing Ring
-
19420947210 Adaptor Sleeve. Includes 19 to 21Adaptor Sleeve. Includes 19 to 21
-
22420834480 Starter Gear 86 TeethStarter Gear 86 Teeth
-
23420664080 Pick-Up Gear 36 TeethPick-Up Gear 36 Teeth
-
24420959280 Coupling FlangeCoupling Flange
-
25420440372 Torx Flanged Screw M8 X 2Torx Flanged Screw M8 X 2
-
26293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
27413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
28293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 LiterEngine Oil 4 Strokes, 0W40, 12 X 1 Liter
