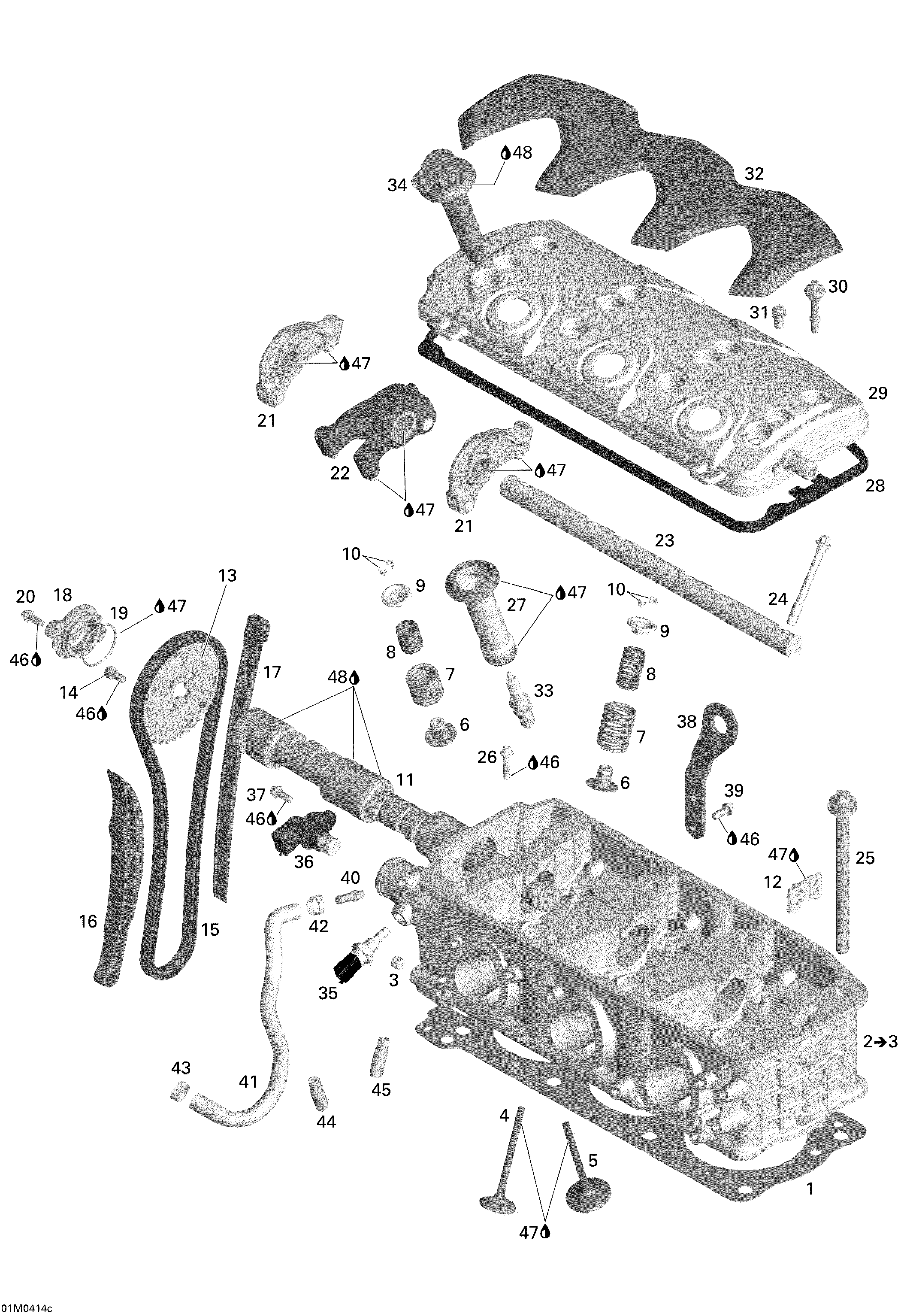

01- Cylinder Head для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1420950770 Cylinder Head GasketCylinder Head Gasket
-
2420613975 Cylinder Head Ass'Y 1503. Includes 2 to 3Cylinder Head Ass'Y 1503. Includes 2 to 3
-
3420641323 ScrewScrew
-
4420254027 Exhaust Valve 31 mmExhaust Valve 31 mm
-
5420254290 Intake Valve 38 mmIntake Valve 38 mm
-
6420630200 Valve Stem SealValve Stem Seal
-
7420238180 Valve SpringValve Spring
-
8420838280 Valve Spring InsideValve Spring Inside
-
9420254280 Valve Spring RetainerValve Spring Retainer
-
10420253645 Valve CotterValve Cotter
-
11420837621 CamshaftCamshaft
-
12420851692 Camshaft GuideCamshaft Guide
-
13420254307 Timing Gear (38 Teeth)Timing Gear (38 Teeth)
-
14420841339 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
15420898040 Camshaft ChainCamshaft Chain
-
16420236540 Chain Tension GuideChain Tension Guide
-
17420236500 Chain GuideChain Guide
-
18420660100 Camshaft CoverCamshaft Cover
-
19420950870 O-RingO-Ring
-
20420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
21420254326 Rockerarm Ass'Y (Exhaust)Rockerarm Ass'Y (Exhaust)
-
22420254315 Rockerarm Ass'Y (Inlet)Rockerarm Ass'Y (Inlet)
-
23420854592 Rocker Arm ShaftRocker Arm Shaft
-
24420641080 Torx Screw M8 X 72Torx Screw M8 X 72
-
25420641110 Torx Flanged Screw M11 X 147Torx Flanged Screw M11 X 147
-
26420641238 Torx Flanged Screw M6 X 2Torx Flanged Screw M6 X 2
-
27420851750 Spark Plug PipeSpark Plug Pipe
-
28420950820 Valve Cover GasketValve Cover Gasket
-
29420811580 Valve CoverValve Cover
-
30420440560 Torx Screw M6 X 30,5Torx Screw M6 X 30,5
-
31420641488 Torx Screw M6 Z 10Torx Screw M6 Z 10
-
32420660162 Valve CoverValve Cover
-
33707000246 Spark Plug NGK Dcp-R8ESpark Plug NGK Dcp-R8E
-
34420664020 Stick CoilStick Coil
-
35420222425 Temperature SensorTemperature Sensor
-
36420664040 Camshaft Sensor Ass'YCamshaft Sensor Ass'Y
-
37420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
38420851612 Front Transport BracketFront Transport Bracket
-
39420641048 Torx Flanged Screw M6 X 1Torx Flanged Screw M6 X 1
-
40420924720 Hose NippleHose Nipple
-
41420822160 Formed HoseFormed Hose
-
42420851458 ClampClamp
-
43420853303 ClampClamp
-
44420253924 Valve GuideValve Guide
-
45420253924 Valve GuideValve Guide
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
47293600054 Engine Oil 4 Strokes, 0W40, 12 X 1 LiterEngine Oil 4 Strokes, 0W40, 12 X 1 Liter
-
48293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
