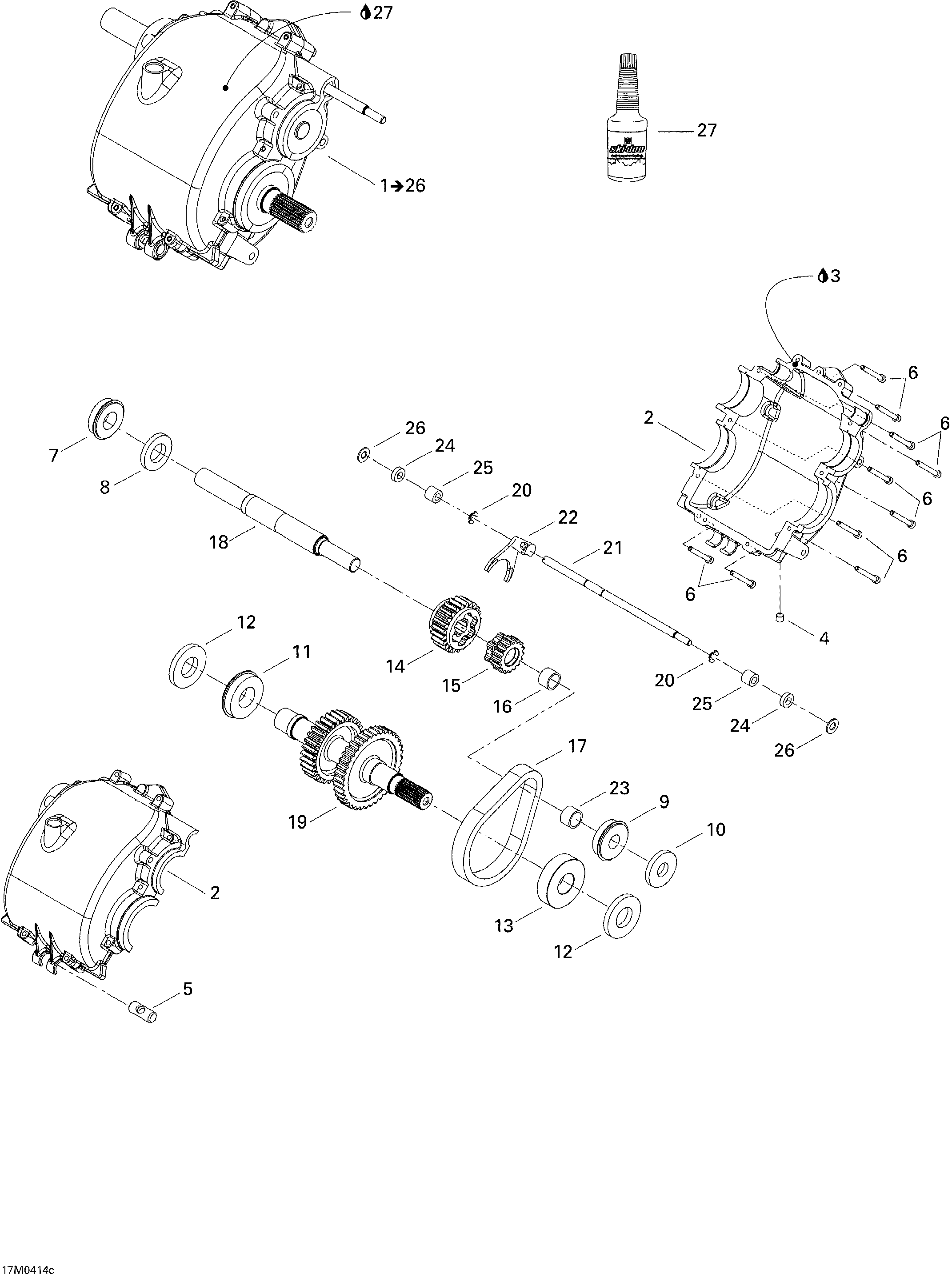

05- Transmission Assy для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1504152116 Transmission Ass'Y. Includes items 1 to 26Transmission Ass'Y. Includes items 1 to 26
-
2504152206 Transmission Housing Ass'YTransmission Housing Ass'Y
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4504151921 Plug 1/8''-27Plug 1/8''-27
-
5504152334 StopperStopper
-
6205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
7293350046 Ball BearingBall Bearing
-
8293200083 Oil SealOil Seal
-
9504152133 Ball BearingBall Bearing
-
10504152134 RingRing
-
11293350047 Ball BearingBall Bearing
-
12293200084 Oil SealOil Seal
-
13504152349 Ball BearingBall Bearing
-
14504152395 Gear 23 TeethGear 23 Teeth
-
15504152142 Gear 17 TeethGear 17 Teeth
-
16504152143 Needle BearingNeedle Bearing
-
17504152145 Silent Chain Type L/A 46 LinksSilent Chain Type L/A 46 Links
-
18504152146 Input ShaftInput Shaft
-
19504152396 Output ShaftOutput Shaft
-
20504152397 CirclipCirclip
-
21504152148 Fork ShaftFork Shaft
-
22420257230 Shift ForkShift Fork
-
23504152151 SpacerSpacer
-
24504152329 O-RingO-Ring
-
25504152225 BushingBushing
-
26234001410 Flat Washer 10 mmFlat Washer 10 mm
-
27413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
