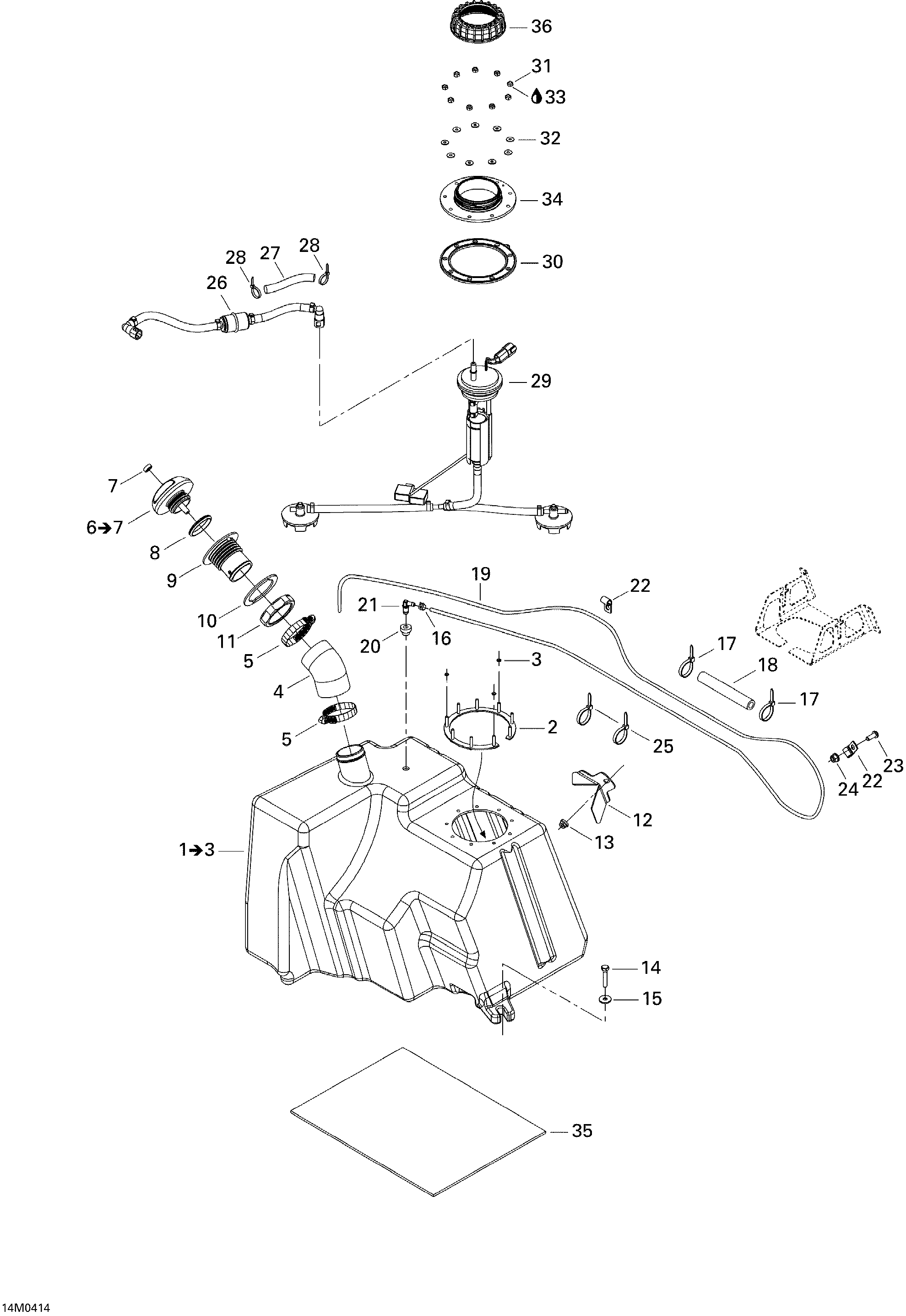

02- Fuel System для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1513033051 Fuel Tank. Includes 1 to 3Fuel Tank. Includes 1 to 3
-
2275500616 C-RingC-Ring
-
3389804300 Push NutPush Nut
-
4513033052 Hose Filler Neck (Fuel)Hose Filler Neck (Fuel)
-
5293650023 Tridon ClampTridon Clamp
-
6275500430 Fuel Tank Cap (Black). Includes 6 to 7Fuel Tank Cap (Black). Includes 6 to 7
-
7293000034 Snap Cap (Black)Snap Cap (Black)
-
8293250075 GasketGasket
-
9275500231 Filler Neck (Fuel)Filler Neck (Fuel)
-
10293250029 GasketGasket
-
11211100012 Filler Neck Nut (Fuel)Filler Neck Nut (Fuel)
-
12513033113 Tank Support (Fuel)Tank Support (Fuel)
-
13233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
14207083544 Hex Screw M8 X 35Hex Screw M8 X 35
-
15234082410 Flat Washer M8Flat Washer M8
-
16414554800 Spring ClampSpring Clamp
-
17414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
18415080000 Tubing 16 mmTubing 16 mm
-
19415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
20513032908 GrommetGrommet
-
21414580700 Elbow Male ConnectorElbow Male Connector
-
22414176000 Clip (Cable)Clip (Cable)
-
23250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
24233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26513033116 Fuel Filter Ass'YFuel Filter Ass'Y
-
27415080000 Tubing 16 mmTubing 16 mm
-
28293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
29513033115 Fuel Pump ModuleFuel Pump Module
-
30293250088 GasketGasket
-
31250100071 Hex Flanged Nut M5Hex Flanged Nut M5
-
32291001956 Rubber WasherRubber Washer
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34513033114 AdapterAdapter
-
35293830104 Rubber Pad (Fuel)Rubber Pad (Fuel)
-
36513033040 Nut (Fuel Pump Module)Nut (Fuel Pump Module)
