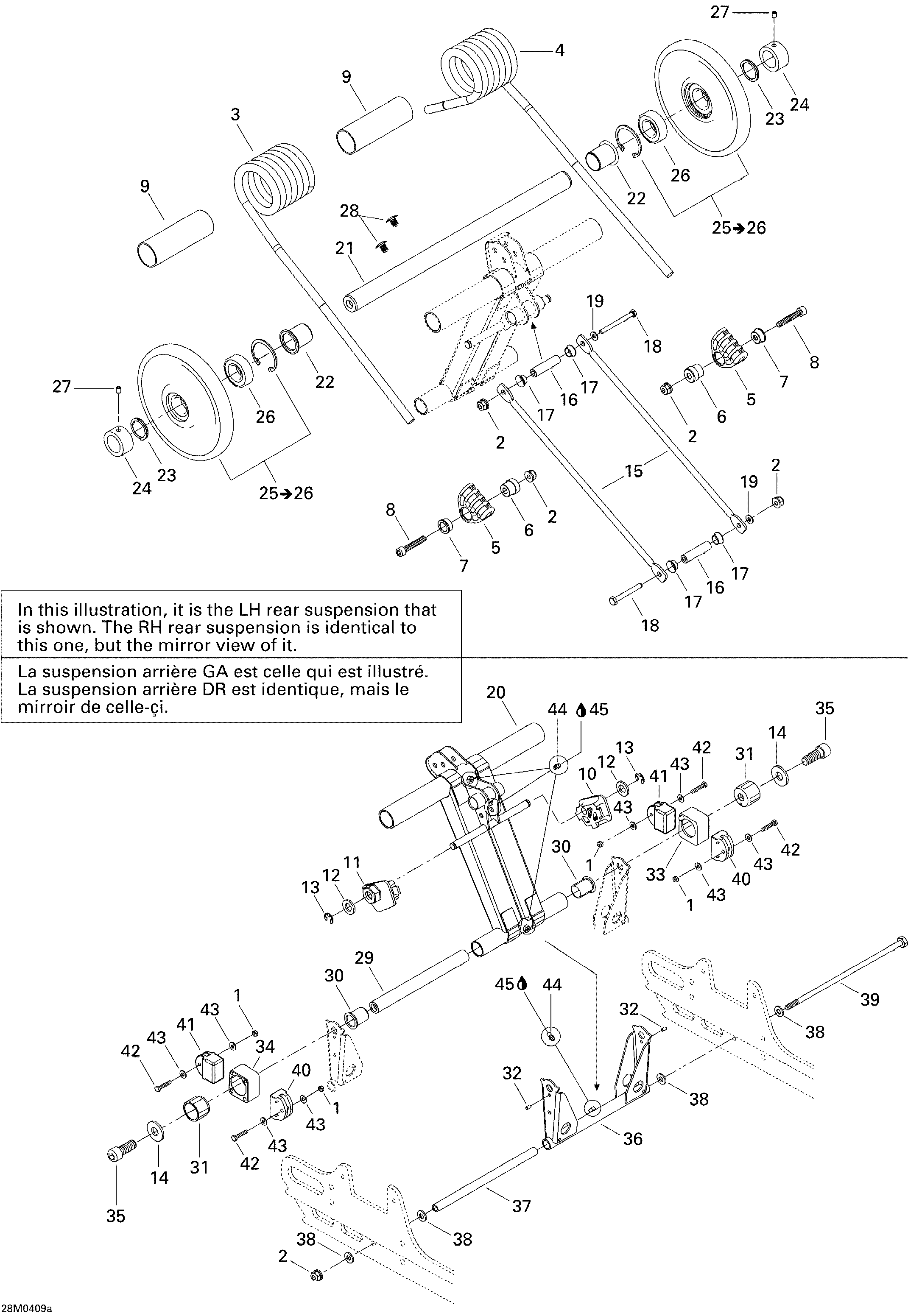

08- Rear arm для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
2233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
3503189898 RH SpringRH Spring
-
4503189900 LH SpringLH Spring
-
5503189657 Spring SupportSpring Support
-
6503188934 Spring Guide AxleSpring Guide Axle
-
7503188929 Cushion RetainerCushion Retainer
-
8205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
9503189105 Plastic BushingPlastic Bushing
-
10503190023 LH Cam AdjusterLH Cam Adjuster
-
11503190022 RH Cam AdjusterRH Cam Adjuster
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13293370013 E-CirclipE-Circlip
-
14503189276 WasherWasher
-
15503190111 Throttle RodThrottle Rod
-
16503189815 Axle RodAxle Rod
-
17506150200 Bushing SwivelBushing Swivel
-
18207089044 Hex Screw M8 X 90Hex Screw M8 X 90
-
19224081201 Flat WasherFlat Washer
-
20503190110 Rear ArmRear Arm
-
21503189412 Upper AxleUpper Axle
-
22503189288 CushionCushion
-
23503189146 Axle SpringAxle Spring
-
24503189147 Retainer RingRetainer Ring
-
25503190269 Wheel 165 Ass'Y. Includes items 25 to 26Wheel 165 Ass'Y. Includes items 25 to 26
-
26503189567 Ball Bearing 6205Ball Bearing 6205
-
27206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
28414644300 DartDart
-
29503189413 Rear Lower AxleRear Lower Axle
-
30503189286 CushionCushion
-
31503189488 Block GuideBlock Guide
-
32250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
33503189152 LH BlockLH Block
-
34503189170 RH BlockRH Block
-
35205523544 Socket Head Screw M12 X 35 (Scotch Grip)Socket Head Screw M12 X 35 (Scotch Grip)
-
36503189819 Pivot ArmPivot Arm
-
37503189156 Pivot Arm AxlePivot Arm Axle
-
38503189157 WasherWasher
-
39732601198 Long Bolt M8Long Bolt M8
-
40503189608 Rubber StopperRubber Stopper
-
41503190681 Rear Rubber StopperRear Rubber Stopper
-
42207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
43250200016 WasherWasher
-
44408200700 Grease FittingGrease Fitting
-
45219700417 Synthetic Grease, 400gSynthetic Grease, 400g
