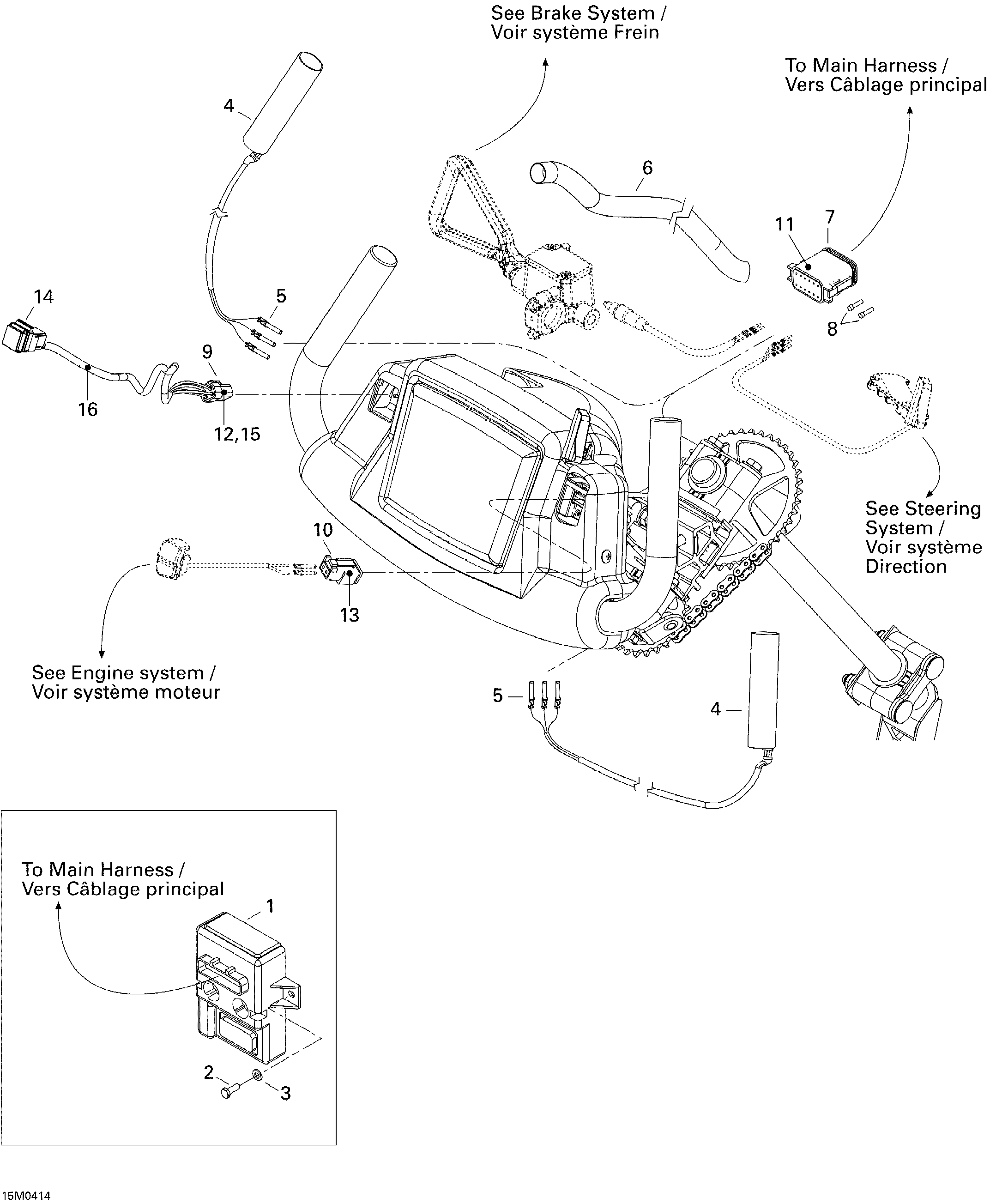

10- Steering Harness для BRP Ski-Doo Elite 1500 1st Edition - 2004
-
№АртикулНазвание
-
1515175861 Can InterfaceCan Interface
-
2207361644 Hex Screw M6 X 16 (Scotch Grip)Hex Screw M6 X 16 (Scotch Grip)
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4515176139 Heater ElementHeater Element
-
5278000632 Female TerminalFemale Terminal
-
6293100011 Pvc Vinyl TubingPvc Vinyl Tubing
-
7409015900 Female Terminal Housing (12 Circuits)Female Terminal Housing (12 Circuits)
-
8293000052 Sealing CapSealing Cap
-
9278001473 Female Terminal Housing (4 Circuits)Female Terminal Housing (4 Circuits)
-
10409207300 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
11409015700 Female Lock (12 Circuits)Female Lock (12 Circuits)
-
12278001474 Female Lock (4 Circuits)Female Lock (4 Circuits)
-
13409207100 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
14515175563 Dimmer SwitchDimmer Switch
-
15515175567 Female TerminalFemale Terminal
-
16515175332 Low Temp Tubing (Vinyl)Low Temp Tubing (Vinyl)
