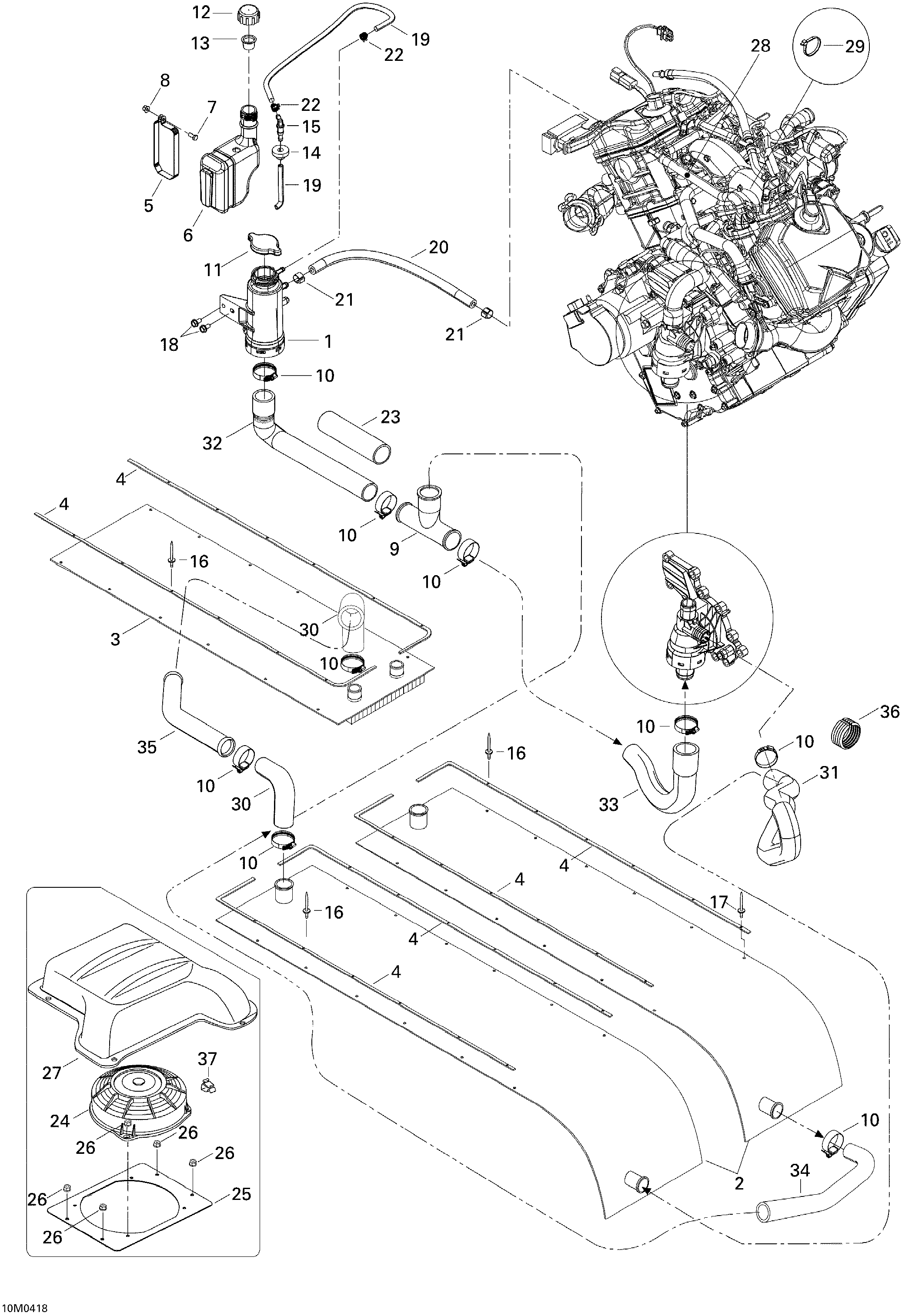

01- Cooling System для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1509000176 Filler Neck Ass'YFiller Neck Ass'Y
-
2605150629 RadiatorRadiator
-
3605350541 RadiatorRadiator
-
4605351215 Raising PlateRaising Plate
-
5509000191 Coolant Tank SupportCoolant Tank Support
-
6709200099 Coolant TankCoolant Tank
-
7M40366 Screw M5X16Screw M5X16
-
8M33062 Nut M5Nut M5
-
9509000219 T-FittingT-Fitting
-
10408800400 Tridon Gear ClampTridon Gear Clamp
-
11509000180 Pressure CapPressure Cap
-
12709200009 Tank CapTank Cap
-
13709200034 Unsplash CapUnsplash Cap
-
14570135100 GrommetGrommet
-
15414580600 Elbow Male ConnectorElbow Male Connector
-
16M36489 RivetRivet
-
17M36087 RivetRivet
-
18M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
19415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
20509000304 Return HoseReturn Hose
-
21293650128 Tridon ClampTridon Clamp
-
22414554800 Spring ClampSpring Clamp
-
23M39062 TubingTubing
-
24M42106 FanFan
-
25605350860 Fix PlateFix Plate
-
26M33200 Nut M6Nut M6
-
27605150618 Fan HousingFan Housing
-
28M27127 TubingTubing
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30605350710 HoseHose
-
31605250712 HoseHose
-
32605350713 HoseHose
-
33605350714 HoseHose
-
34605350715 HoseHose
-
35605350711 TubeTube
-
36M390003 TubeTube
-
37414227300 ClipClip
