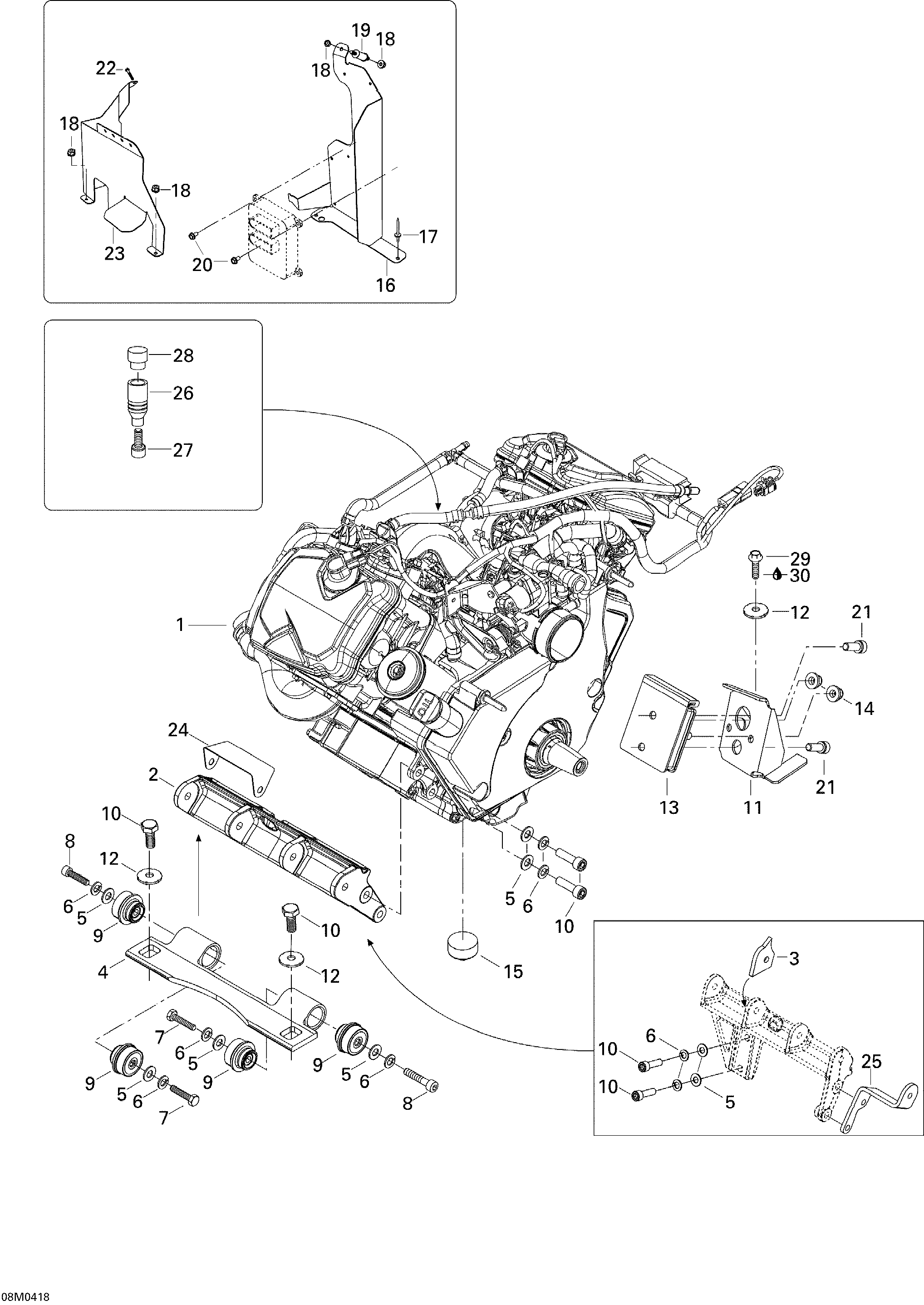

01- Engine Support для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1M11000125 EngineEngine
-
2605250888 Engine Front Mount CutEngine Front Mount Cut
-
3605451306 Raising PlateRaising Plate
-
4512059425 Front Engine SupportFront Engine Support
-
5234001410 Flat Washer 10 mmFlat Washer 10 mm
-
6M20113 Lock Spring WasherLock Spring Washer
-
7205003544 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
8M40352 HexCap ScrewHexCap Screw
-
9512059691 Rubber MountRubber Mount
-
10207103044 Hex Screw M10 X 30Hex Screw M10 X 30
-
11605350835 Engine Rear SupportEngine Rear Support
-
12512056700 Lock WasherLock Washer
-
13512059316 Rubber MountRubber Mount
-
14M33074 NutNut
-
15512059710 StopperStopper
-
16605250844 Module SupportModule Support
-
17M36005 RivetRivet
-
18M33200 Nut M6Nut M6
-
19M12419 Rubber MountRubber Mount
-
20M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
21M40053 ScrewScrew
-
22207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
23605351330 Temperature ShieldTemperature Shield
-
24514053620 Front DeflectorFront Deflector
-
25605349867 Support BracketSupport Bracket
-
26605350745 SupportSupport
-
27M40053 ScrewScrew
-
28570044700 Rubber PumperRubber Pumper
-
29M40335 ScrewScrew
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
