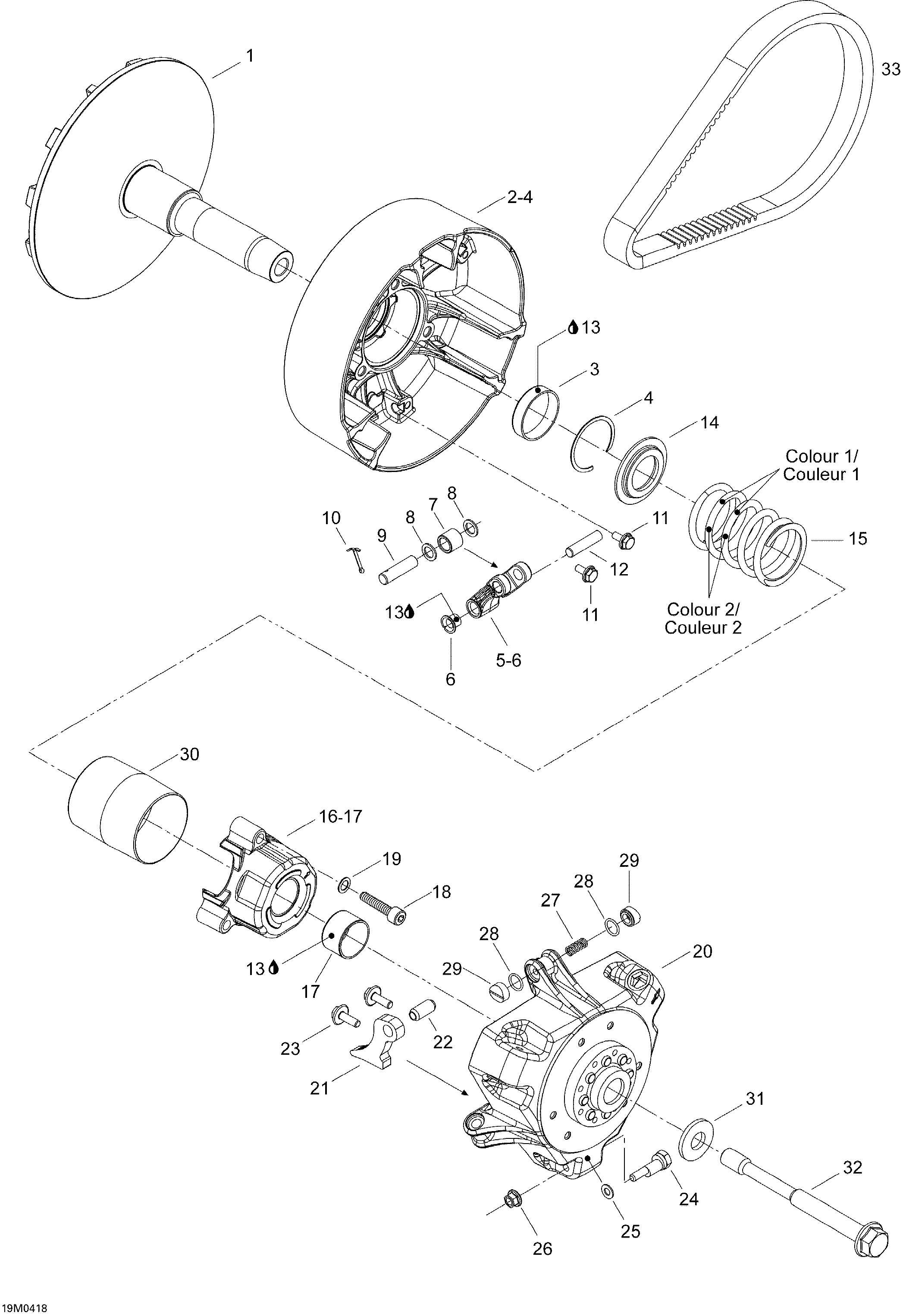

05- Pulley System для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1417222593 Fixed FlangeFixed Flange
-
2417222629 Slinding Flange Ass'Y. Includes Items 2 to 4Slinding Flange Ass'Y. Includes Items 2 to 4
-
3417222758 BushingBushing
-
4293370037 CirclipCirclip
-
5417222672 Lever Ass'Y. Includes Items 5 to 6Lever Ass'Y. Includes Items 5 to 6
-
6417222633 BushingBushing
-
7417003900 Roller AssyRoller Assy
-
8417004302 Stopper WasherStopper Washer
-
9417222594 PinPin
-
10732958001 Cotter PinCotter Pin
-
11210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
12417009202 Lever AxleLever Axle
-
13413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
14417222312 Spring SeatSpring Seat
-
15414817500 Clutch Spring (Red/Jaune)Clutch Spring (Red/Jaune)
-
16417007500 Spring Cover Ass'Y.. Includes Items 16 to 17Spring Cover Ass'Y.. Includes Items 16 to 17
-
17417009204 BushingBushing
-
18205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
19250200009 Lock Washer 8 mmLock Washer 8 mm
-
20417222530 Governor Cup AssyGovernor Cup Assy
-
21417222569 Rampe 607Rampe 607
-
22250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
23250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
24417005500 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
27417005700 SpringSpring
-
28732401030 O-RingO-Ring
-
29417222362 Slider ShoeSlider Shoe
-
30417009205 GuardGuard
-
31M20110 Conical Spring WasherConical Spring Washer
-
32417300242 Drive Pulley BoltDrive Pulley Bolt
-
33605348425 Drive BeltDrive Belt
