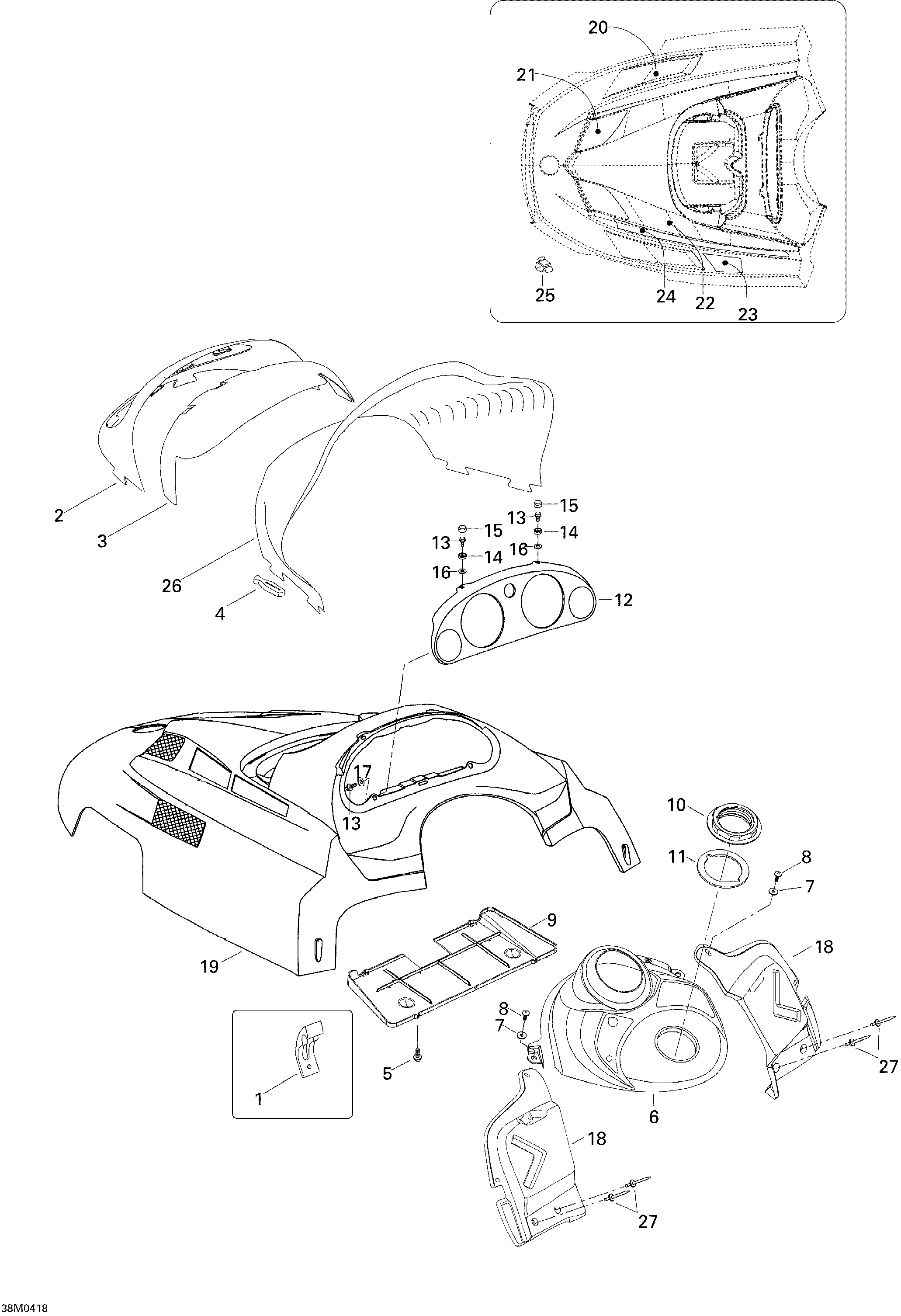

09- Cab and Console для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1517302152 Hood LatchHood Latch
-
2517302158 Headlamp MouldingHeadlamp Moulding
-
3517302003 Windshield SupportWindshield Support
-
4570023800 Windshield LatchWindshield Latch
-
5243141640 Hex Screw M4.8 X 16Hex Screw M4.8 X 16
-
6517302729 Center ConsoleCenter Console
-
7M20008 Washer 5 mmWasher 5 mm
-
8732600030 ScrewScrew
-
9605250865 Intake PlateIntake Plate
-
10517302043 Console NutConsole Nut
-
11M5447116 GasketGasket
-
12605351374 Indicator SupportIndicator Support
-
13241140060 Screw K40 X 10Screw K40 X 10
-
14414436800 Retainer CapRetainer Cap
-
15414436900 Snap Cap (Black)Snap Cap (Black)
-
16234042600 Flat Washer 4 mmFlat Washer 4 mm
-
17517124300 WasherWasher
-
18605250614 RH ConsoleRH Console
-
18605250613 LH ConsoleLH Console
-
19605150537 Hood Assy. Includes Items 19 to 25Hood Assy. Includes Items 19 to 25
-
20605350924 RH Upper GrillRH Upper Grill
-
20605350923 LH Upper GrillLH Upper Grill
-
21605350926 RH Lower GrillRH Lower Grill
-
21605350925 LH Lower GrillLH Lower Grill
-
22605350927 LH GrillLH Grill
-
23605350929 Heat ShieldHeat Shield
-
24605350921 Heat ShieldHeat Shield
-
25414227300 ClipClip
-
26605150480 WindshieldWindshield
-
27M36036 Rivet-BlackRivet-Black
