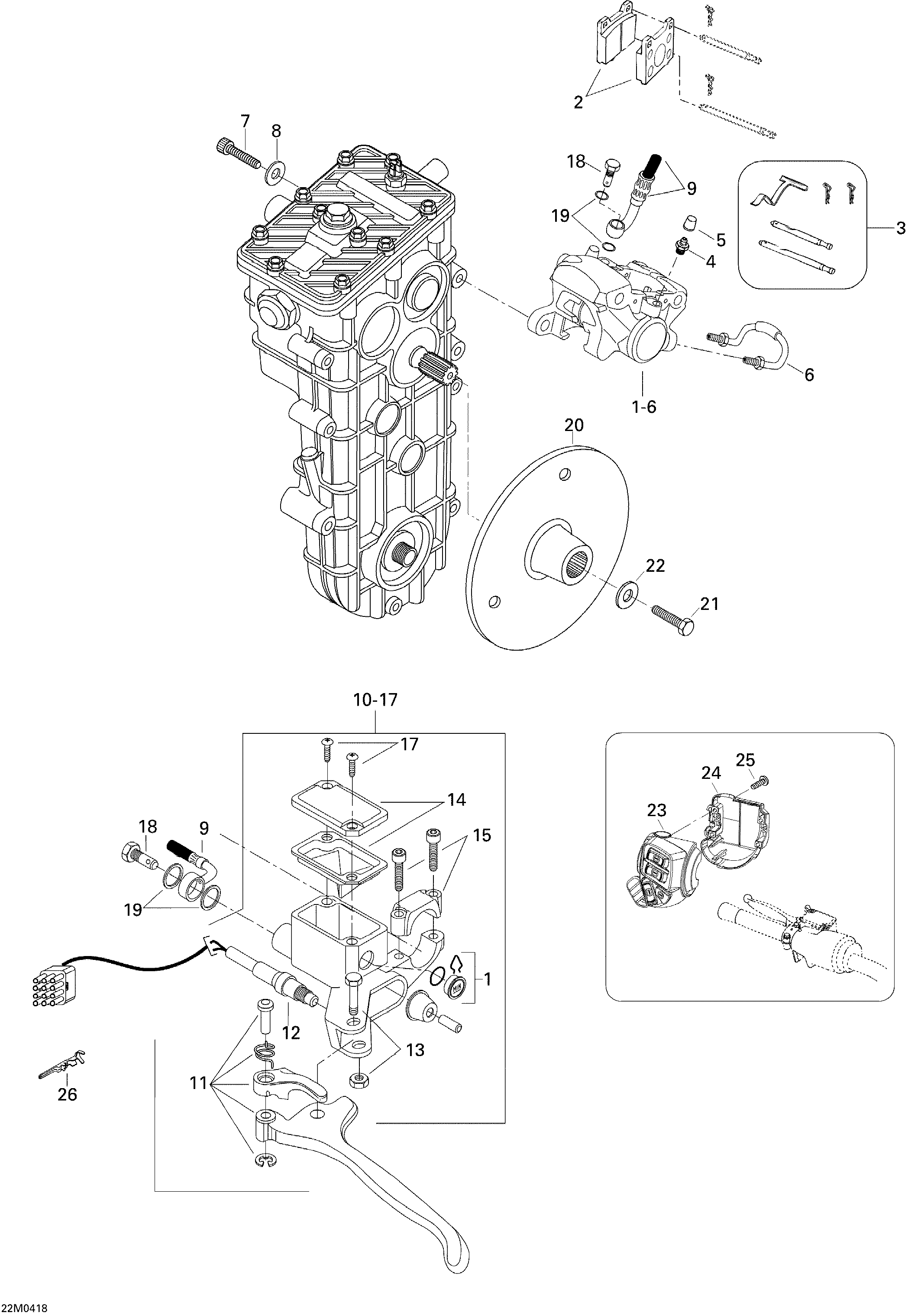

06- Hydraulic Brake для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1507032321 Caliper. Includes Items 1 to 6Caliper. Includes Items 1 to 6
-
2415084600 Brake Pad KitBrake Pad Kit
-
3414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7M40277 Socket Head Screw M10 X 65Socket Head Screw M10 X 65
-
8M20068 Lock WasherLock Washer
-
9507032237 HoseHose
-
10507032362 Master Cylinder. Includes Items 10 to 17Master Cylinder. Includes Items 10 to 17
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp Ass'YClamp Ass'Y
-
13415029900 CapCap
-
14415030000 Pin Ass'YPin Ass'Y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17216141260 Screw M4 X 12Screw M4 X 12
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20M5344710 Brake DiskBrake Disk
-
21M40336 Screw M8 X 20Screw M8 X 20
-
22M546336 WasherWasher
-
23515176015 LH Housing SwitchLH Housing Switch
-
24515175926 Housing Switch PlateHousing Switch Plate
-
25M40903 Screw 3.5X25Screw 3.5X25
-
26M42603 Male TerminalMale Terminal
