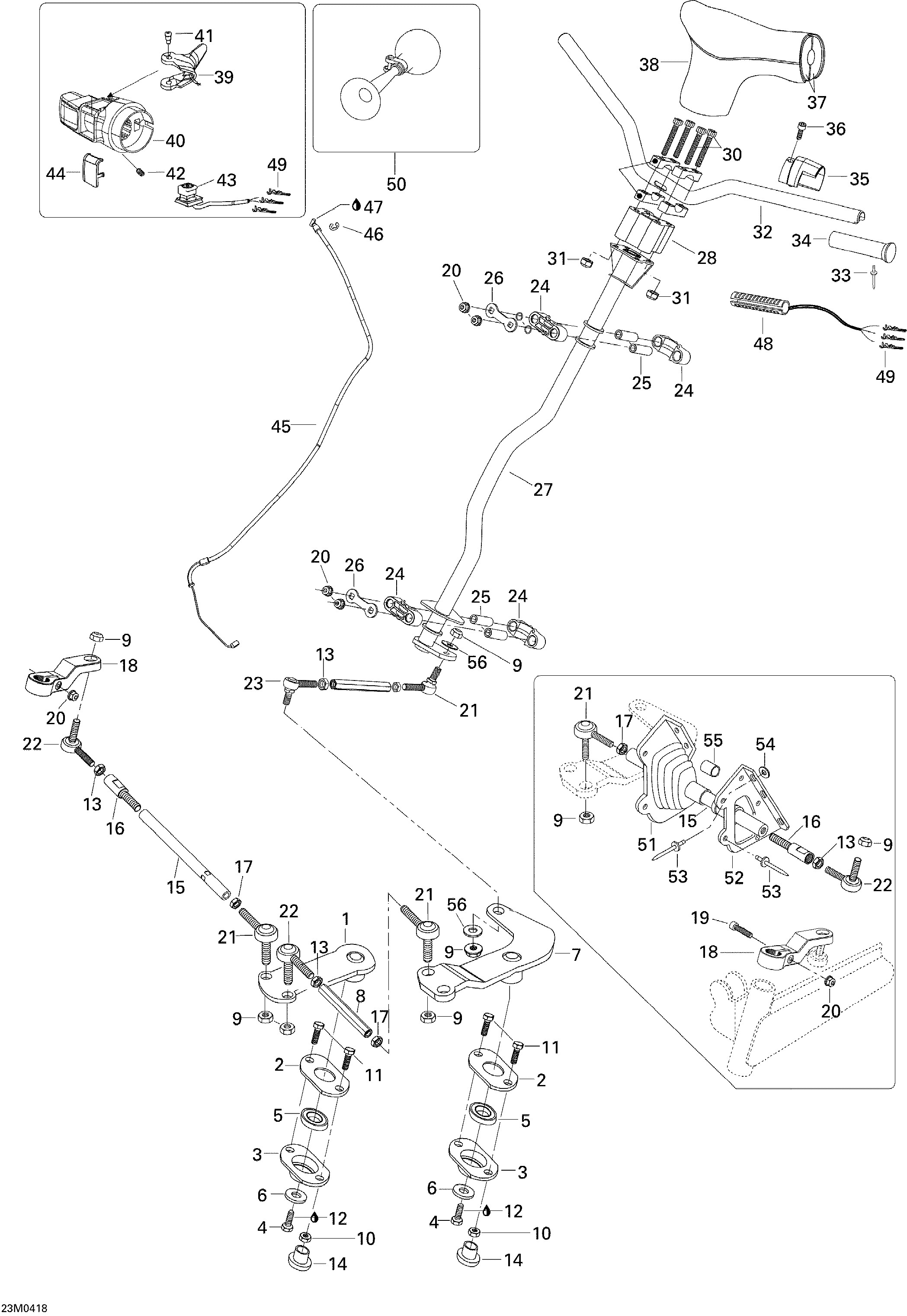

07- Steering System для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1605350266 Lever RHLever RH
-
2M5345380 CoverCover
-
3605350644 Bearing SupportBearing Support
-
4M40337 Hex ScrewHex Screw
-
5405404500 Ball Bearing 6205Ball Bearing 6205
-
6M5446279 WasherWasher
-
7605350826 Lever LHLever LH
-
8605448308 Short Tie RodShort Tie Rod
-
9M33023 NutNut
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11M40336 Screw M8 X 20Screw M8 X 20
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13M33019 RH NutRH Nut
-
14M28210 PlugPlug
-
15605450794 Tie RodTie Rod
-
16605450793 AdjusterAdjuster
-
17M33017 LH NutLH Nut
-
18M5348261 Steering ArmSteering Arm
-
19M40828 Allen Screw M8 X 45Allen Screw M8 X 45
-
20M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
21506151495 LH Ball JointLH Ball Joint
-
22506151492 RH Ball JointRH Ball Joint
-
23605450895 Ball Joint RHBall Joint RH
-
24506150400 Housing HalfHousing Half
-
25506150500 Housing BushingHousing Bushing
-
26506150600 Stopper PlateStopper Plate
-
27605150632 Main TubeMain Tube
-
28605351275 Extension 90 mmExtension 90 mm
-
29M548448 Steering ClampSteering Clamp
-
30M40209 Allen Screw M8 X 130Allen Screw M8 X 130
-
31M33027 NutNut
-
32605251368 Handle BarHandle Bar
-
33M36005 RivetRivet
-
34M5340464 Grip HandleGrip Handle
-
35506151566 AdaptatorAdaptator
-
36M40390 Allen Screw M8 X 20Allen Screw M8 X 20
-
37605250567 Steering Pad FrontSteering Pad Front
-
37605250568 Steering Pad RearSteering Pad Rear
-
38605250569 CoverCover
-
39512059766 Handle Ass'Y (28 mm)Handle Ass'Y (28 mm)
-
40512059763 Throttle HousingThrottle Housing
-
41732601143 Flanged ScrewFlanged Screw
-
42414440800 Set Screw M8 X 10Set Screw M8 X 10
-
43515175410 Kill SwitchKill Switch
-
44572100901 Switch CoverSwitch Cover
-
45512059349 Throttle CableThrottle Cable
-
46M31038 CirclipCirclip
-
47293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
48515175664 Heating GripHeating Grip
-
49M42603 Male TerminalMale Terminal
-
50M21003 HornHorn
-
51570024800 RH Tie Rod CapRH Tie Rod Cap
-
51570024900 LH Tie Rod CapLH Tie Rod Cap
-
52605350120 RH Cover PlateRH Cover Plate
-
52605350119 LH Cover PlateLH Cover Plate
-
53M36037 RivetRivet
-
54M20008 Washer 5 mmWasher 5 mm
-
55572036500 BushingBushing
-
56M20105 WasherWasher
