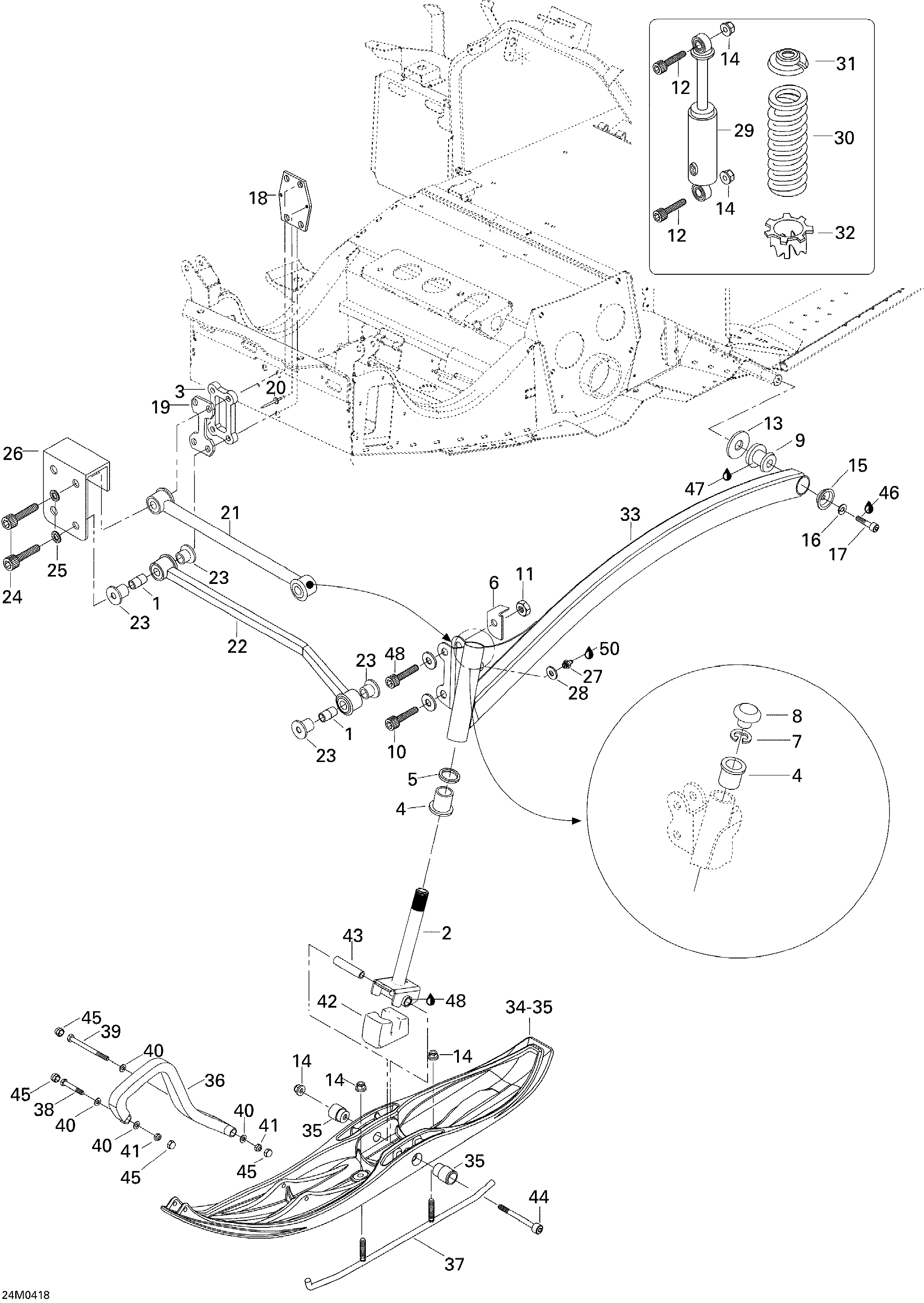

07- Front Suspension and Ski для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1605450024 BushingBushing
-
2506151234 Ski LegSki Leg
-
3605350191 Spacer 17.5Spacer 17.5
-
4505070003 CushionCushion
-
5505070004 WasherWasher
-
6605448861 RH Plate LockingRH Plate Locking
-
6605448862 LH Plate LockingLH Plate Locking
-
7371910400 CirclipCirclip
-
8572091300 CapCap
-
9570062200 DamperDamper
-
10M40371 Screw Allen M12 X 55Screw Allen M12 X 55
-
11232521414 Hex Elastic Stop Nut M12Hex Elastic Stop Nut M12
-
12M40837 Screw M10 X 55Screw M10 X 55
-
13503146700 WasherWasher
-
14M33074 NutNut
-
15506115800 CupCup
-
16234181401 Lock Washer M8Lock Washer M8
-
17M40810 Screw Allen M8 X 20Screw Allen M8 X 20
-
18605450675 PlatePlate
-
19605450900 Middle PlateMiddle Plate
-
20M36005 RivetRivet
-
21605350022 Upper Arm AssyUpper Arm Assy
-
22605250016 Arm Lower AssyArm Lower Assy
-
23506149100 CushionCushion
-
24M40370 Screw Allen M12 X 75Screw Allen M12 X 75
-
25M20074 Lock WasherLock Washer
-
26605350192 PlatePlate
-
27M34011 Grease FittingGrease Fitting
-
28M20007 WasherWasher
-
29M23183 Front ShockFront Shock
-
30M25067 SpringSpring
-
31M230076 Spring StopperSpring Stopper
-
32M230078 CamCam
-
33605250462 RH Swing ArmRH Swing Arm
-
33605250463 LH Swing ArmLH Swing Arm
-
34605148440 Ski Plastic Ski. Includes Items 34 to 35Ski Plastic Ski. Includes Items 34 to 35
-
35605348392 BushingBushing
-
36505070963 Handle (Black)Handle (Black)
-
37605349311 Carbide RunnerCarbide Runner
-
38207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
39M40264 Hex Screw M8 X 90Hex Screw M8 X 90
-
40234081410 Flat Washer M8Flat Washer M8
-
41232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
42605348458 Ski StopperSki Stopper
-
43506133300 SpacerSpacer
-
44M40225 Hex Screw M10 X 140Hex Screw M10 X 140
-
45M28056 CapCap
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
47293550030 Grease, Super LubeGrease, Super Lube
-
48M40306 Allen Screw M12 X 60Allen Screw M12 X 60
-
49M20027 WasherWasher
-
50219700417 Synthetic Grease, 400gSynthetic Grease, 400g
