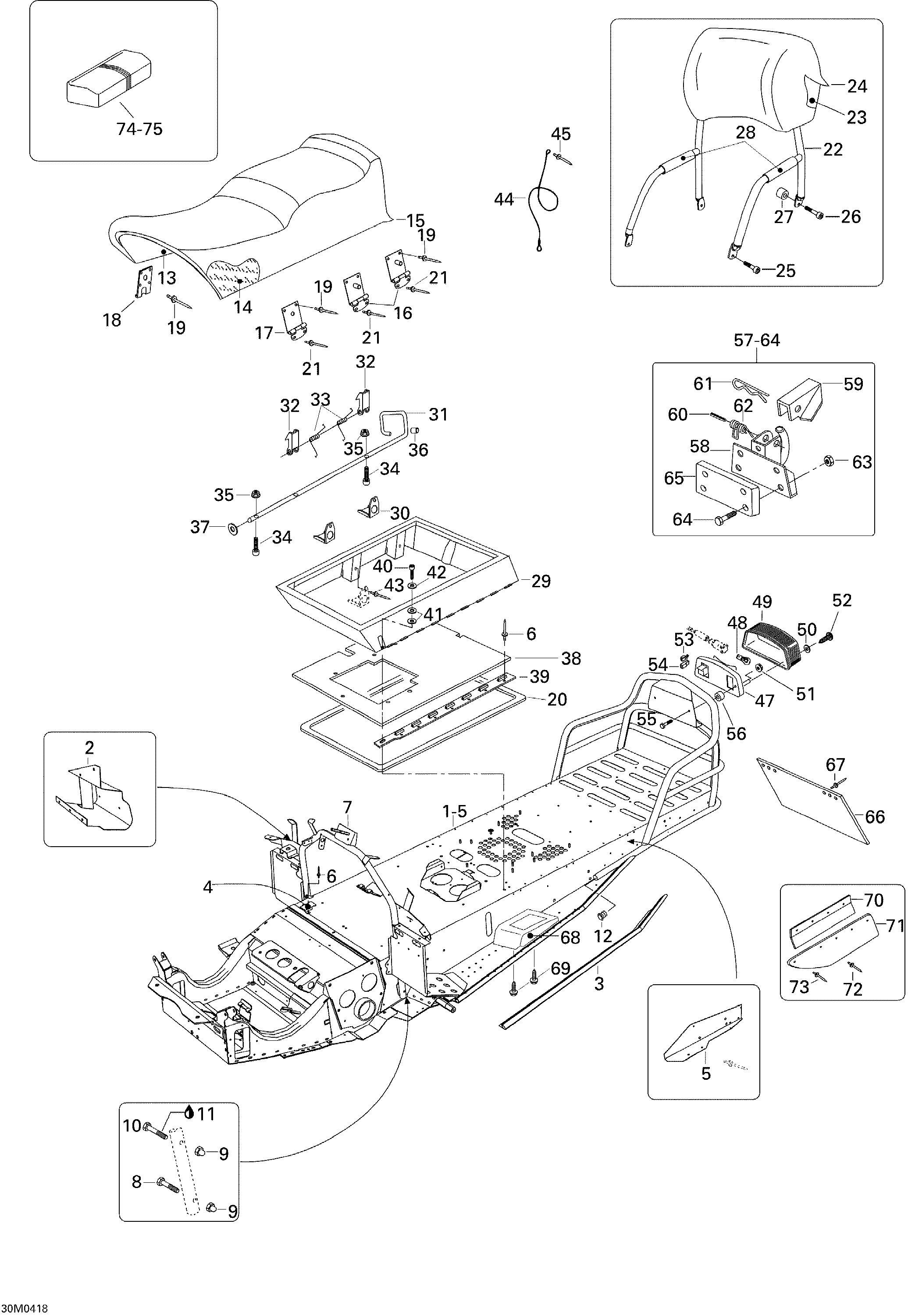

09- Frame and Seat для BRP Ski-Doo Expedition 4-TEC - 2004
-
№АртикулНазвание
-
1605150594 Frame Assy. Includes Items 1 to 5Frame Assy. Includes Items 1 to 5
-
2605350839 RH Toe RestRH Toe Rest
-
2605350840 LH Toe RestLH Toe Rest
-
3605250774 RH ReinforcementRH Reinforcement
-
3605250773 LH ReinforcementLH Reinforcement
-
4605349992 Support CoolingSupport Cooling
-
5605350846 RH Coner SupportRH Coner Support
-
5605350845 LH Coner SupportLH Coner Support
-
6M36083 RivetRivet
-
7605150605 Bar SupportBar Support
-
8207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
9232061414 Hex Nut M6Hex Nut M6
-
10207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
12M28210 PlugPlug
-
13M519394 Sub SeatSub Seat
-
14605150323 Foam SeatFoam Seat
-
15605150324 Seat CoverSeat Cover
-
16M549874 HingeHinge
-
17M5440581 HingeHinge
-
18M549732 Lock PlateLock Plate
-
19M36071 RivetRivet
-
20M5440059 CushionCushion
-
21M36489 RivetRivet
-
22M5245664 BackrestBackrest
-
23M539399 Backrest FoamBackrest Foam
-
24605350589 Backrest CoverBackrest Cover
-
25M40388 Socket ScrewSocket Screw
-
26M40389 Allen ScrewAllen Screw
-
27M5440665 SpacerSpacer
-
28415050300 RH Grip (250 mm)RH Grip (250 mm)
-
29605150634 Seat BoxSeat Box
-
30M5443661 SupportSupport
-
31M5344987 Pivot PinPivot Pin
-
32605451589 Cam LockCam Lock
-
33M5444439 SpringSpring
-
34M40144 Screw M4 X 16Screw M4 X 16
-
35232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
36M28019 CapCap
-
37234081410 Flat Washer M8Flat Washer M8
-
38605350645 Seat Box CoverSeat Box Cover
-
39M5144029 RH SupportRH Support
-
39M5144028 LH SupportLH Support
-
40M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
41M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
42234161471 Lock Washer 6 mmLock Washer 6 mm
-
43M36009 RivetRivet
-
44M5447746 Retainer CableRetainer Cable
-
45M36038 RivetRivet
-
47510004061 Light HousingLight Housing
-
48410504000 Bulb (Tail Lamp)Bulb (Tail Lamp)
-
49414513700 LensLens
-
50414516400 WasherWasher
-
51M33200 Nut M6Nut M6
-
52209632540 Phillips Screw M3.9 X 25Phillips Screw M3.9 X 25
-
53M42178 Female TerminalFemale Terminal
-
54M42179 Female HousingFemale Housing
-
55207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
56M549103 SleeveSleeve
-
57M5344156 Hook Hitch Kit. Includes Items 57 to 64Hook Hitch Kit. Includes Items 57 to 64
-
58M5344208 Bracket HitchBracket Hitch
-
59M5440767 Hitch ProtectorHitch Protector
-
60M41012 Retainer PinRetainer Pin
-
61M41029 PinPin
-
62M545693 SpringSpring
-
63232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
64207085044 Hex Screw M8 X 50Hex Screw M8 X 50
-
65605351510 SpacerSpacer
-
66M535437 Snow GuardSnow Guard
-
67M36036 Rivet-BlackRivet-Black
-
68414975300 RH Rear FootrestRH Rear Footrest
-
68414975400 LH Rear FootrestLH Rear Footrest
-
69M40870 Hex Tapping ScrewHex Tapping Screw
-
70605251249 RH Side Snow GuardRH Side Snow Guard
-
70605251248 LH Side Snow GuardLH Side Snow Guard
-
71M5142828 Lateral Snow GuardLateral Snow Guard
-
72M36097 RivetRivet
-
73M36005 RivetRivet
-
74605450158 Tool Kit. Includes Items 74 to 75Tool Kit. Includes Items 74 to 75
-
75572036310 Tool Box Ass'Y.Tool Box Ass'Y.
