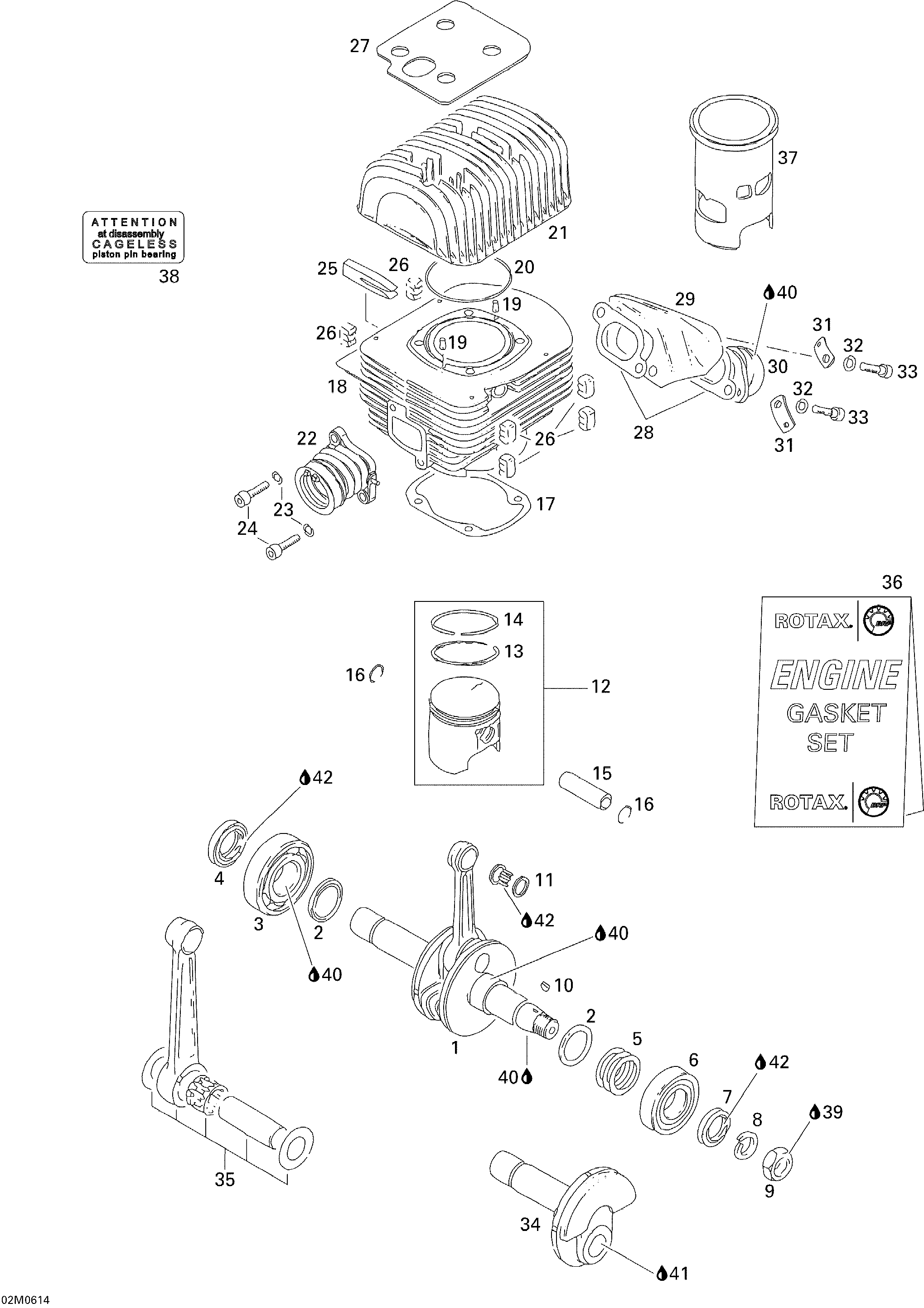

01- Crankshaft And Pistons для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1420995307 CrankshaftCrankshaft
-
2420827440 Distance RingDistance Ring
-
3420932571 Ball BearingBall Bearing
-
4420850050 Oil SealOil Seal
-
5420944582 ShimShim
-
5420944583 ShimShim
-
5420944584 ShimShim
-
5420944586 ShimShim
-
6420932581 Ball BearingBall Bearing
-
7420230425 Oil SealOil Seal
-
8420945759 Lock Washer 22 mmLock Washer 22 mm
-
9420842234 Hex Nut M22Hex Nut M22
-
10420246055 Woodruff KeyWoodruff Key
-
11420832320 Needle BearingNeedle Bearing
-
12420890070 Piston 71.91, StdPiston 71.91, Std
-
12420890071 Piston 72.16, 1st OversizePiston 72.16, 1st Oversize
-
12420890072 Piston 72.41, 2nd OversizePiston 72.41, 2nd Oversize
-
13420915850 Rectangular Ring 72 mm, StdRectangular Ring 72 mm, Std
-
13420915851 Rectangular Ring 72.25 mm, 1stRectangular Ring 72.25 mm, 1st
-
13420915852 Rectangular Ring 72.5 mm, 2ndRectangular Ring 72.5 mm, 2nd
-
14420815200 Semi-trapez Ring 72.0 mm, StdSemi-trapez Ring 72.0 mm, Std
-
14420815201 Semi-trapez Ring 72.25 mm, 1stSemi-trapez Ring 72.25 mm, 1st
-
14420815202 Semi-trapez Ring 72.5 mm, 2ndSemi-trapez Ring 72.5 mm, 2nd
-
15420916186 Gudgeon PinGudgeon Pin
-
16420945735 Piston CirclipPiston Circlip
-
17420831858 Gasket 0.4 mmGasket 0.4 mm
-
18420623180 Cylinder With SleeveCylinder With Sleeve
-
19420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
20293300026 O-RingO-Ring
-
21420823786 Cylinder HeadCylinder Head
-
22420667270 Intake SocketIntake Socket
-
23420945752 Lock Washer 8 mmLock Washer 8 mm
-
24205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
25420860100 Rubber FinRubber Fin
-
26420860097 Noise DamperNoise Damper
-
27420960130 Silent BlockSilent Block
-
28420831847 Gasket 1mmGasket 1mm
-
29420975720 Air DeflectorAir Deflector
-
30420978836 Exhaust SocketExhaust Socket
-
31420953170 Spring BracketSpring Bracket
-
32420945752 Lock Washer 8 mmLock Washer 8 mm
-
33205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
34420919955 PTO CrankshaftPTO Crankshaft
-
36420992068 Gasket KitGasket Kit
-
38420897280 Cageless LabelCageless Label
-
39293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
40293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
41413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
42413707000 Molykote 111, 150 GMolykote 111, 150 G
