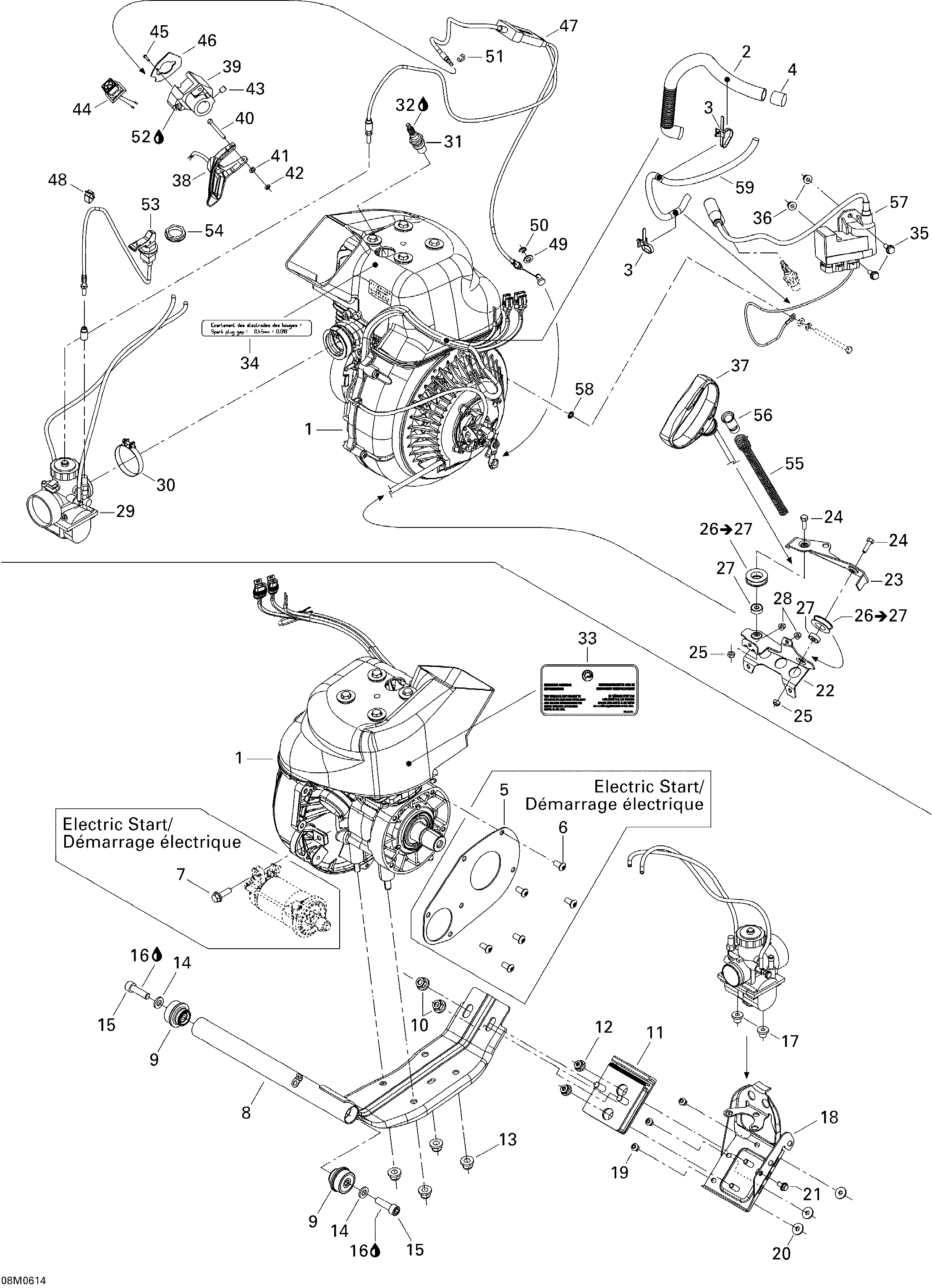

01- Engine And Engine Support для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1400206004 Engine 277Engine 277
-
2415080000 Tubing, 16 mmTubing, 16 mm
-
3293750009 Tie Rap 160 mmTie Rap 160 mm
-
4293740005 Vinyl Tape 3/4'', BlackVinyl Tape 3/4'', Black
-
5512059922 Starter Support. Electric StartStarter Support. Electric Start
-
6250000243 Torx Screw M8 X 16, Scotch Grip. Electric StartTorx Screw M8 X 16, Scotch Grip. Electric Start
-
7207582544 Hex Flanged Screw M8 X 25, Scotch Grip. Electric StartHex Flanged Screw M8 X 25, Scotch Grip. Electric Start
-
8512059901 Engine SupportEngine Support
-
9512059691 Rubber MountRubber Mount
-
10233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
11512059958 Rubber MountRubber Mount
-
12233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
13233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
14503183500 WasherWasher
-
15205003544 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
16413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
17293720029 GrommetGrommet
-
18512059918 PlatePlate
-
21207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
22512060010 Pulley SupportPulley Support
-
23512060032 Reinforcement, GuardReinforcement, Guard
-
24207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
25232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
26512060150 Pulley Ass'y. Includes 26 to 27Pulley Ass'y. Includes 26 to 27
-
27512060151 Ball BearingBall Bearing
-
28233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
29403138768 Carburettor Vm 34-618Carburettor Vm 34-618
-
30512059834 Gemi ClampGemi Clamp
-
31414961100 Spark Plug, NGK Br9esSpark Plug, NGK Br9es
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
34516000986 Spark Plug DecalSpark Plug Decal
-
35207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37572084400 Starter GripStarter Grip
-
38512059997 Handle Ass'yHandle Ass'y
-
39512059334 Throttle Handle HousingThrottle Handle Housing
-
40414438700 Lever PinLever Pin
-
41234051600 Flat Washer M5Flat Washer M5
-
42414439000 CirclipCirclip
-
43414440800 Set Screw M8 X 10Set Screw M8 X 10
-
44515176091 Kill SwitchKill Switch
-
45250000022 Phillips ScrewPhillips Screw
-
46512059507 PlatePlate
-
47512059907 Throttle CableThrottle Cable
-
48414227300 ClipClip
-
49234081100 Flat Washer 8 mmFlat Washer 8 mm
-
50414753500 CirclipCirclip
-
51414274500 CirclipCirclip
-
52293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
53512060005 Choke CableChoke Cable
-
54512060016 Plastic NutPlastic Nut
-
55512059535 Rope GuideRope Guide
-
56512059536 TubeTube
-
57512060006 Calibrated ModuleCalibrated Module
-
58394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
59515175442 Tubing, 6 mmTubing, 6 mm
