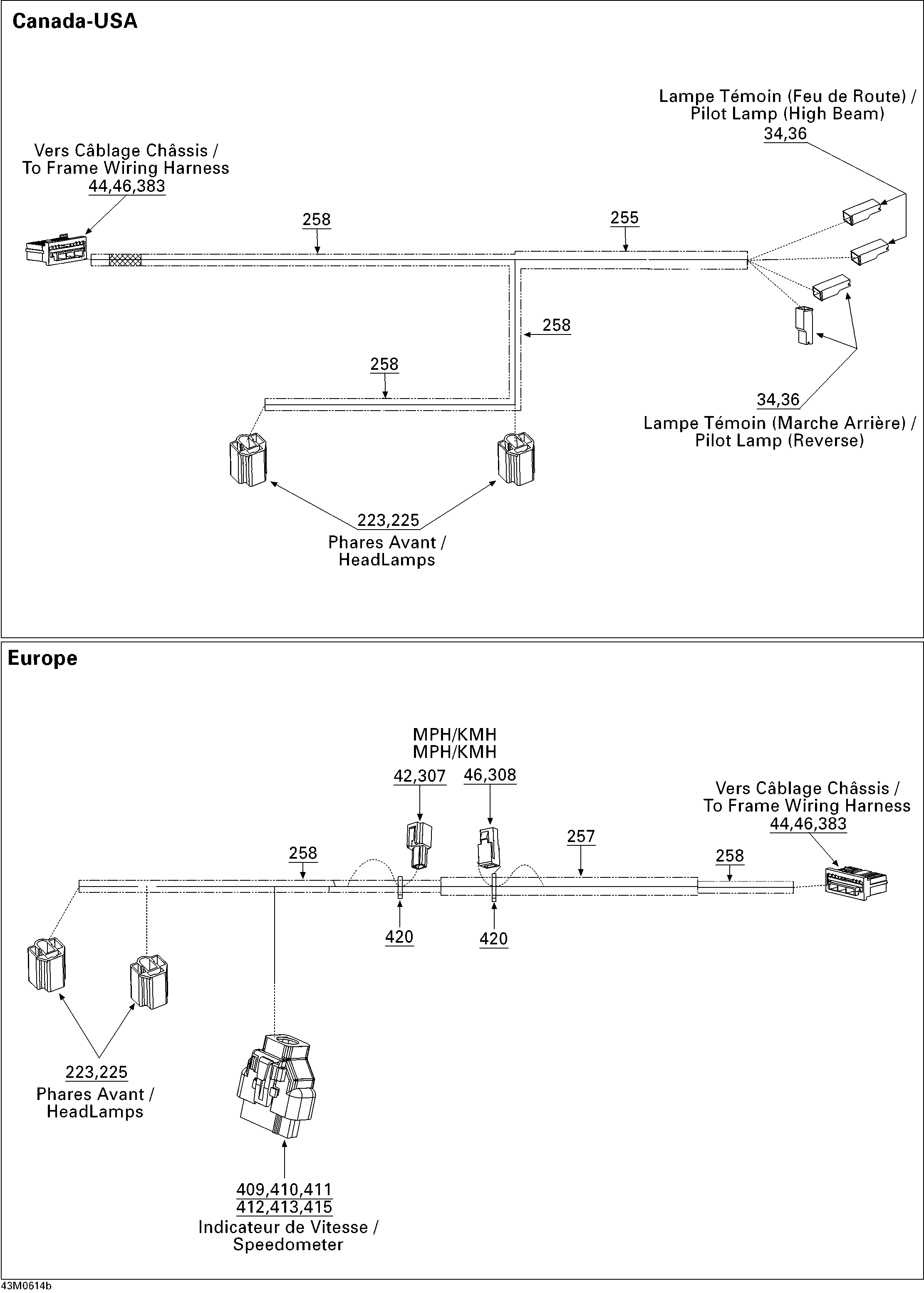

10- Electrical Harness Hood для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1515176291 Cab Wiring Harness. Canada-USA, Includes 1 to 383Cab Wiring Harness. Canada-USA, Includes 1 to 383
-
1515176217 Cab Wiring Harness. Europe, Includes 1 to 420Cab Wiring Harness. Europe, Includes 1 to 420
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
42515175273 Male Terminal. EuropeMale Terminal. Europe
-
44515175231 Female TerminalFemale Terminal
-
46515175282 Female TerminalFemale Terminal
-
223515175320 Female TerminalFemale Terminal
-
225409202700 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
255409901800 Tubing, 13 mmTubing, 13 mm
-
257409901600 Tubing, 19 mm. EuropeTubing, 19 mm. Europe
-
258415079900 Tubing, 10 mmTubing, 10 mm
-
307515175509 Male Terminal Housing, 1 Circuit. EuropeMale Terminal Housing, 1 Circuit. Europe
-
308515175510 Female Terminal Housing, 1 Circuit. EuropeFemale Terminal Housing, 1 Circuit. Europe
-
383515175719 Female Terminal Housing, 11 CircuitsFemale Terminal Housing, 11 Circuits
-
409515175812 Plug. EuropePlug. Europe
-
410515175801 Female Terminal Housing, 24 Circuits. EuropeFemale Terminal Housing, 24 Circuits. Europe
-
411515175802 Retainer. EuropeRetainer. Europe
-
412515175803 Wire Seal. EuropeWire Seal. Europe
-
413515175804 Block. EuropeBlock. Europe
-
415515175806 Female Terminal. EuropeFemale Terminal. Europe
-
420414115200 Tie-Rap 180 mm. EuropeTie-Rap 180 mm. Europe
