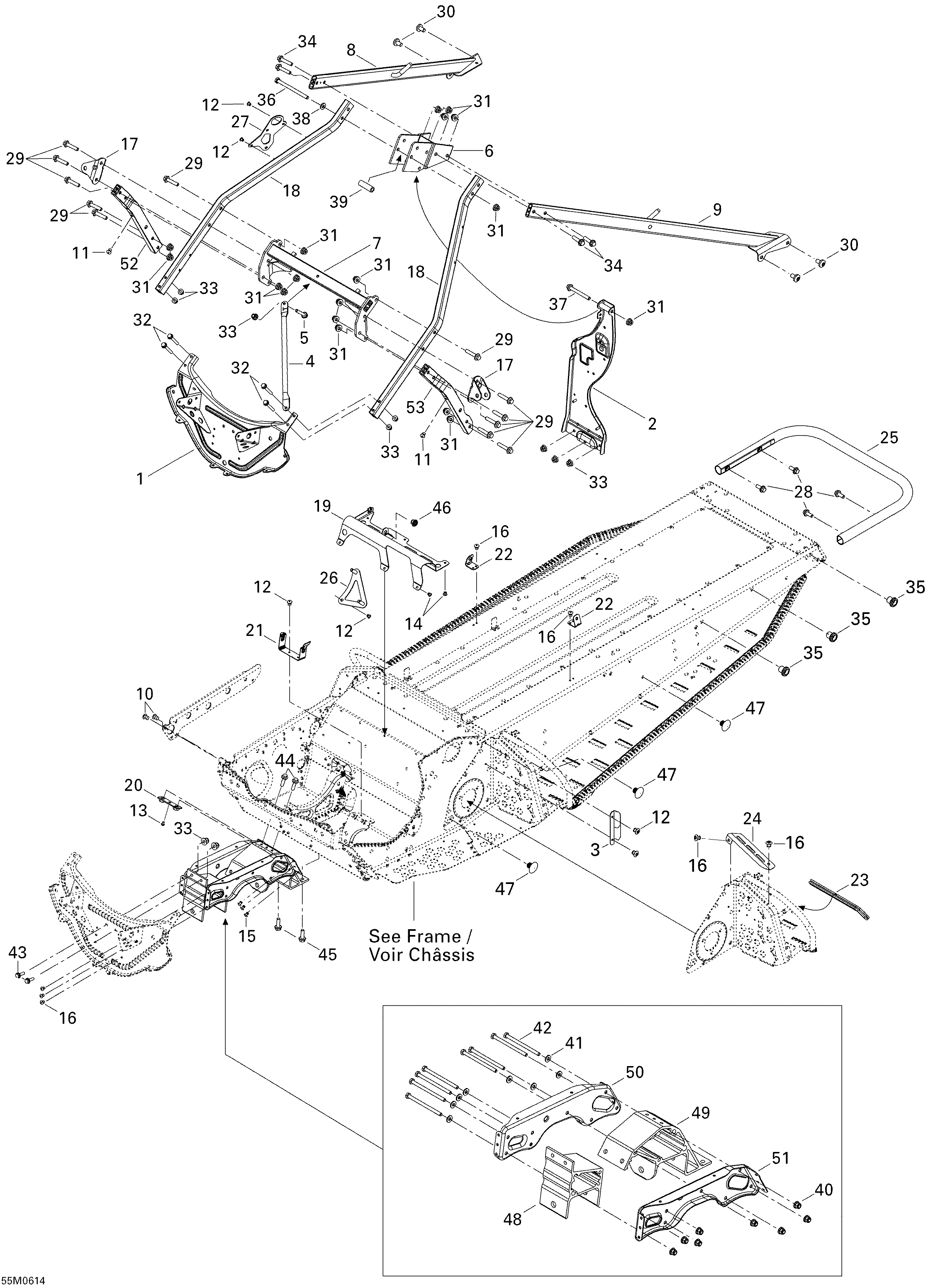

09- Frame and Components для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1518324216 Front PlateFront Plate
-
2518324209 Upper Column SupportUpper Column Support
-
3518317504 Cable ProtectorCable Protector
-
4518324988 BraceBrace
-
5207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
6518324196 Bracket BlockBracket Block
-
7518324193 Upper Cross MemberUpper Cross Member
-
8518324480 RH MemberRH Member
-
9518324481 LH MemberLH Member
-
10293150096 RivetRivet
-
11293150119 Rivet, Hemlock 6.5mmRivet, Hemlock 6.5mm
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390909100 Avex RivetAvex Rivet
-
16390909200 Avex RivetAvex Rivet
-
17518324202 Shock BracketShock Bracket
-
18518324212 Upper TubeUpper Tube
-
19518323532 Intake Air Admission SupportIntake Air Admission Support
-
20518324204 Holder PlateHolder Plate
-
21518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
22518324688 Trunk BracketTrunk Bracket
-
23271001530 Protection TrimProtection Trim
-
24518323105 Plate, BlackPlate, Black
-
25518323992 Rear BumperRear Bumper
-
26518324312 Trunk Bracket BlackTrunk Bracket Black
-
27518324315 PlatePlate
-
28236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
29207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
30250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
31233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
32207664544 Flanged Hex Screw, M6 X 45Flanged Hex Screw, M6 X 45
-
33233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
35415107300 InsertInsert
-
36230081044 Hex Screw M8 X 110Hex Screw M8 X 110
-
37207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
38503189157 WasherWasher
-
39506150500 Housing BushingHousing Bushing
-
40233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
41250200039 Flat WasherFlat Washer
-
42207069044 Hex Screw, M6 X 90Hex Screw, M6 X 90
-
43207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
44207562044 Flanged Hex Screw, M6 X 20 Scotch GripFlanged Hex Screw, M6 X 20 Scotch Grip
-
45250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
46293450232 InsertInsert
-
47518321954 Fastener PanelFastener Panel
-
48518324019 Front Attachment, Front SuspensionFront Attachment, Front Suspension
-
49518324020 Rear Attachment, Front SuspensionRear Attachment, Front Suspension
-
50518324014 RH Lateral ReinforcementRH Lateral Reinforcement
-
51518324017 LH Lateral ReinforcementLH Lateral Reinforcement
-
52518324214 RH Vertical TubeRH Vertical Tube
-
53518324215 LH Vertical TubeLH Vertical Tube
