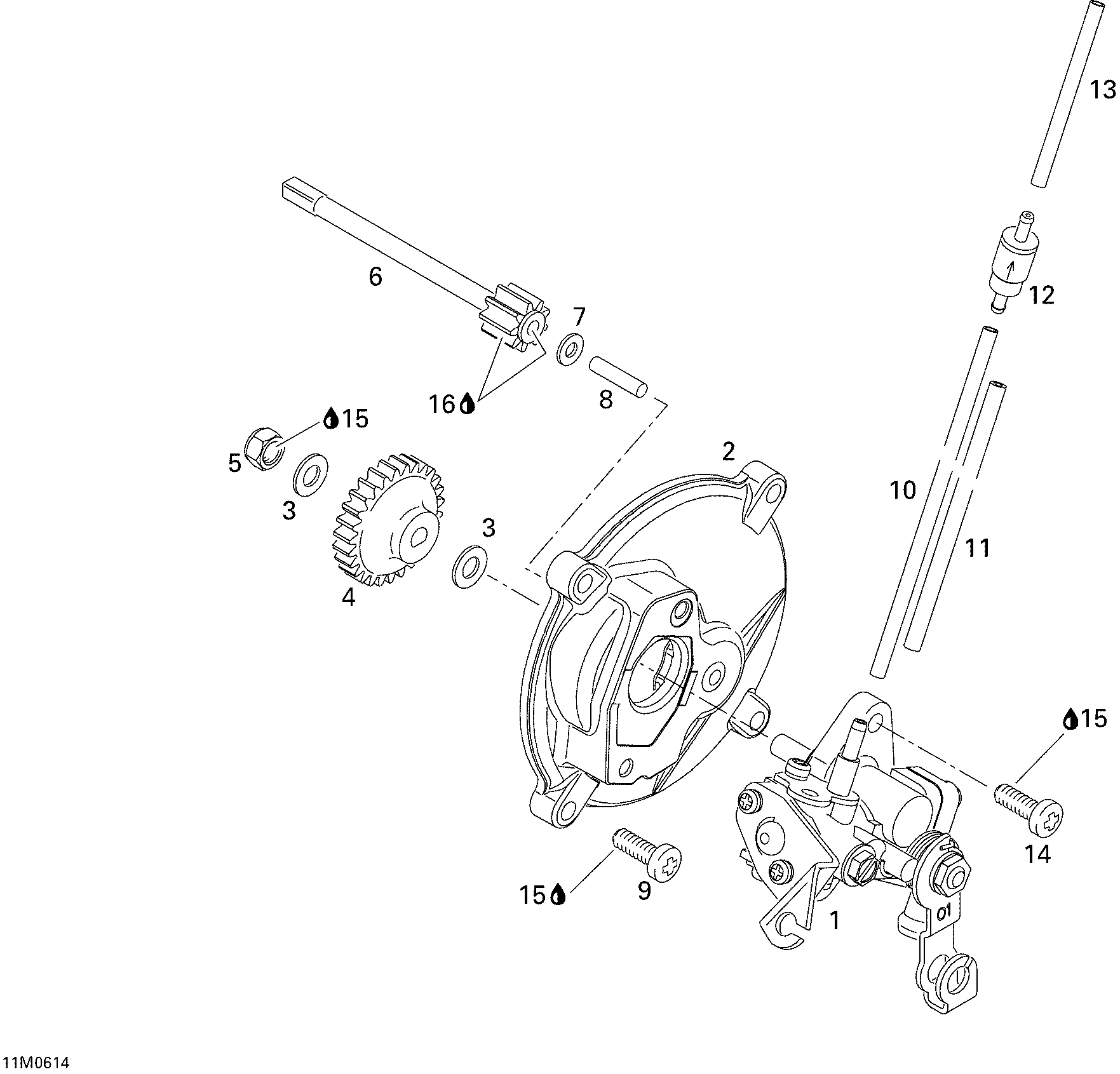

02- Oil Pump для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1420890252 Oil PumpOil Pump
-
2420910160 Pump Mounting FlangePump Mounting Flange
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear, 27 TeethOil Pump Gear, 27 Teeth
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420935975 Gear, 9 TeethGear, 9 Teeth
-
7420244073 Washer 4.3 mmWasher 4.3 mm
-
8420832260 Needle PinNeedle Pin
-
9420841976 ScrewScrew
-
10414413800 Oil LineOil Line
-
11276000048 Isolation Hose 260 mmIsolation Hose 260 mm
-
12404160200 ValveValve
-
13414413800 Oil LineOil Line
-
14420841971 ScrewScrew
-
15293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
16413707000 Molykote 111, 150 GMolykote 111, 150 G
