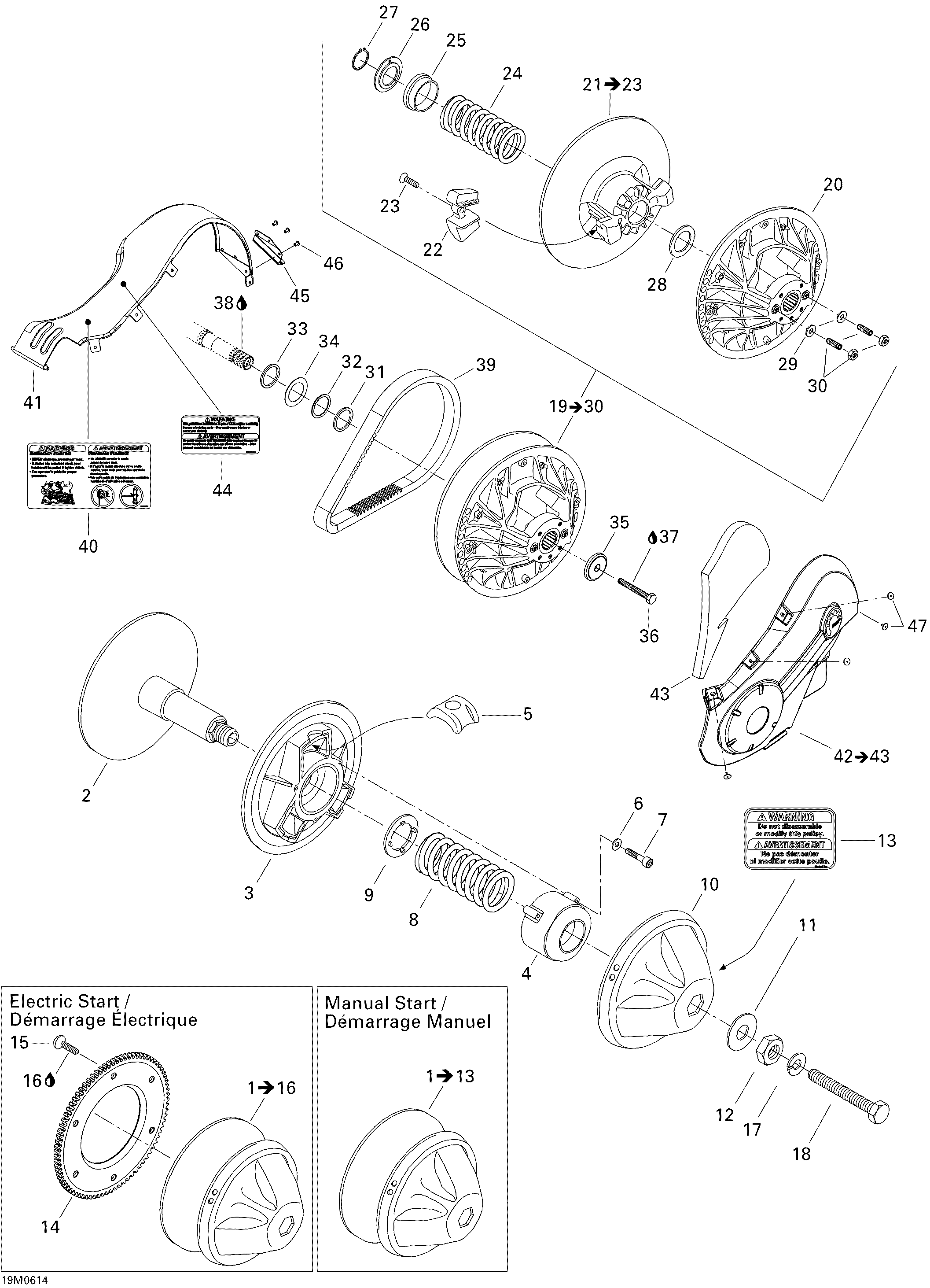

05- Pulley System для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
2415129124 Inner FlangeInner Flange
-
3417126692 Sliding FlangeSliding Flange
-
4415128602 Spring CoverSpring Cover
-
5415129126 UnitUnit
-
6420245370 WasherWasher
-
7415128606 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
8415129151 Spring, Violet-pink-pinkSpring, Violet-pink-pink
-
9417126694 Spring SeatSpring Seat
-
10415128609 CapCap
-
11415128610 WasherWasher
-
12417118300 NutNut
-
13516001726 Security LabelSecurity Label
-
14417300305 Ring Gear. Electric StartRing Gear. Electric Start
-
15236281684 Hex Screw M8 X 16. Electric StartHex Screw M8 X 16. Electric Start
-
16293800005 Loctite 271, 10 ml. Electric StartLoctite 271, 10 ml. Electric Start
-
17392002800 Lock Spring WasherLock Spring Washer
-
18417113800 BoltBolt
-
20415129046 Fixed FlangeFixed Flange
-
21415129047 Sliding Flange. Includes 21 to 23Sliding Flange. Includes 21 to 23
-
24415129048 Spring, Blue-white-orangeSpring, Blue-white-orange
-
25415129049 Lock RingLock Ring
-
26415129050 WasherWasher
-
27415129051 Stopper SpringStopper Spring
-
28415129052 Spring ProtectorSpring Protector
-
29420245370 WasherWasher
-
30415129076 Screw & Nut Assy.Screw & Nut Assy.
-
31417300252 SpacerSpacer
-
32417300265 SpacerSpacer
-
33417300252 SpacerSpacer
-
34504112000 ShimShim
-
35517302322 Strength WasherStrength Washer
-
36207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
37293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
38293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
39417300298 Drive BeltDrive Belt
-
40516002674 Emergency Starting LabelEmergency Starting Label
-
41417300276 Belt Guard Ass'yBelt Guard Ass'y
-
42417300301 Side Protector Ass'y. Includes 42 to 43Side Protector Ass'y. Includes 42 to 43
-
43417300246 FoamFoam
-
44516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
45417300216 Belt Guard BracketBelt Guard Bracket
-
46390909200 Avex RivetAvex Rivet
-
47293150103 Pop Rivet 3/16''Pop Rivet 3/16''
