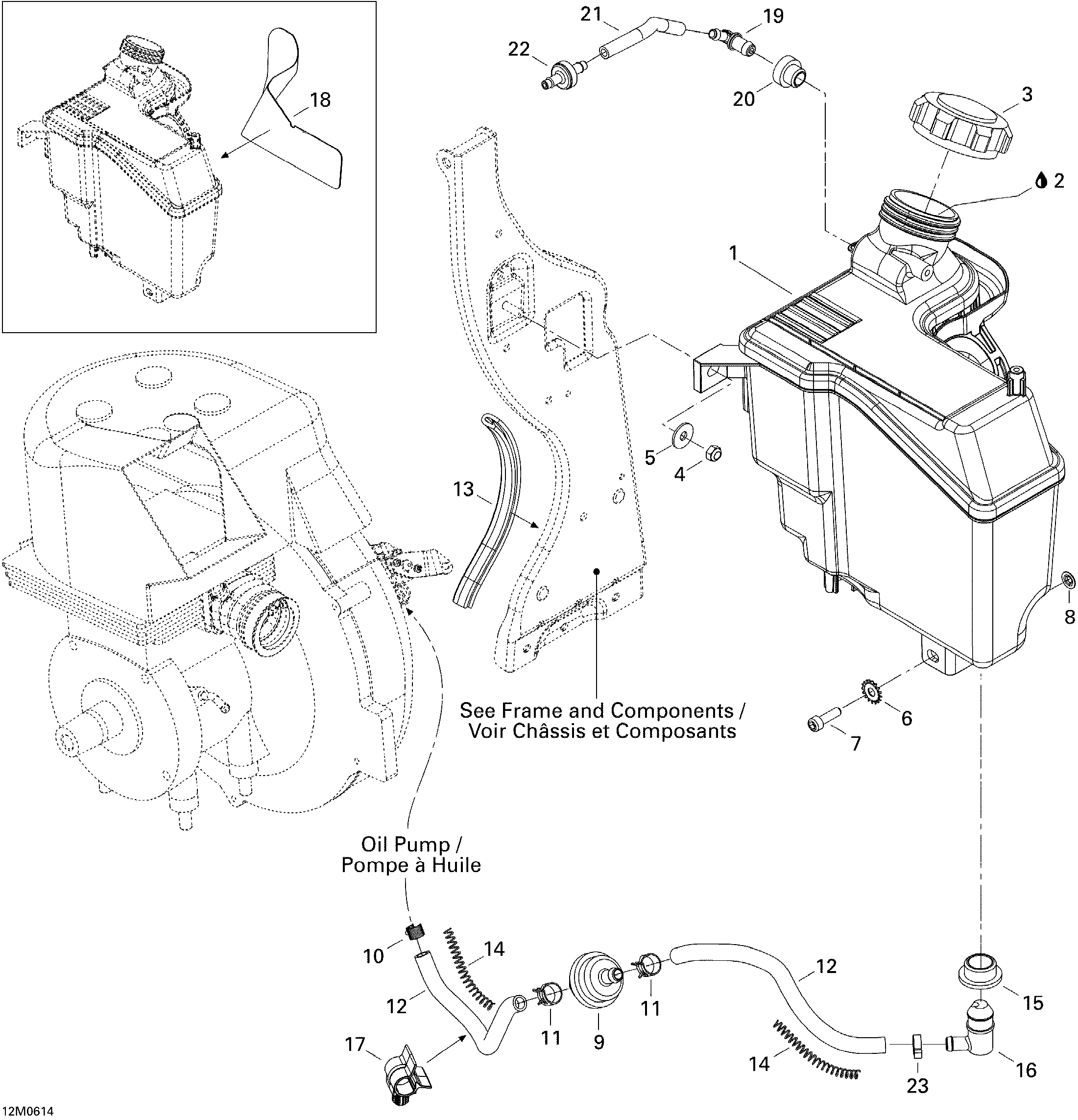

02- Oil System для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1519000073 Injection Oil TankInjection Oil Tank
-
2413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
2413803000 Injection Oil (3 X 4 Liters)Injection Oil (3 X 4 Liters)
-
2413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
3519000033 CapCap
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5391302000 Flat WasherFlat Washer
-
6250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
7205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
8732610072 Push NutPush Nut
-
9414536500 FilterFilter
-
10414420700 Universal Spring Clamp, 3/8''Universal Spring Clamp, 3/8''
-
11414415200 Spring ClampSpring Clamp
-
12415080700 LineLine
-
13415079900 Tubing, 10 mmTubing, 10 mm
-
14519000125 SpringSpring
-
15570023000 Insulating RingInsulating Ring
-
16519000124 Elbow Fitting 90°Elbow Fitting 90°
-
17275500528 Retainer HoseRetainer Hose
-
18519000054 Reflective SheetReflective Sheet
-
19414580700 Elbow Male ConnectorElbow Male Connector
-
20513032908 GrommetGrommet
-
21415080200 LineLine
-
22275500398 Check ValveCheck Valve
-
23293650042 Oetiker ClampOetiker Clamp
