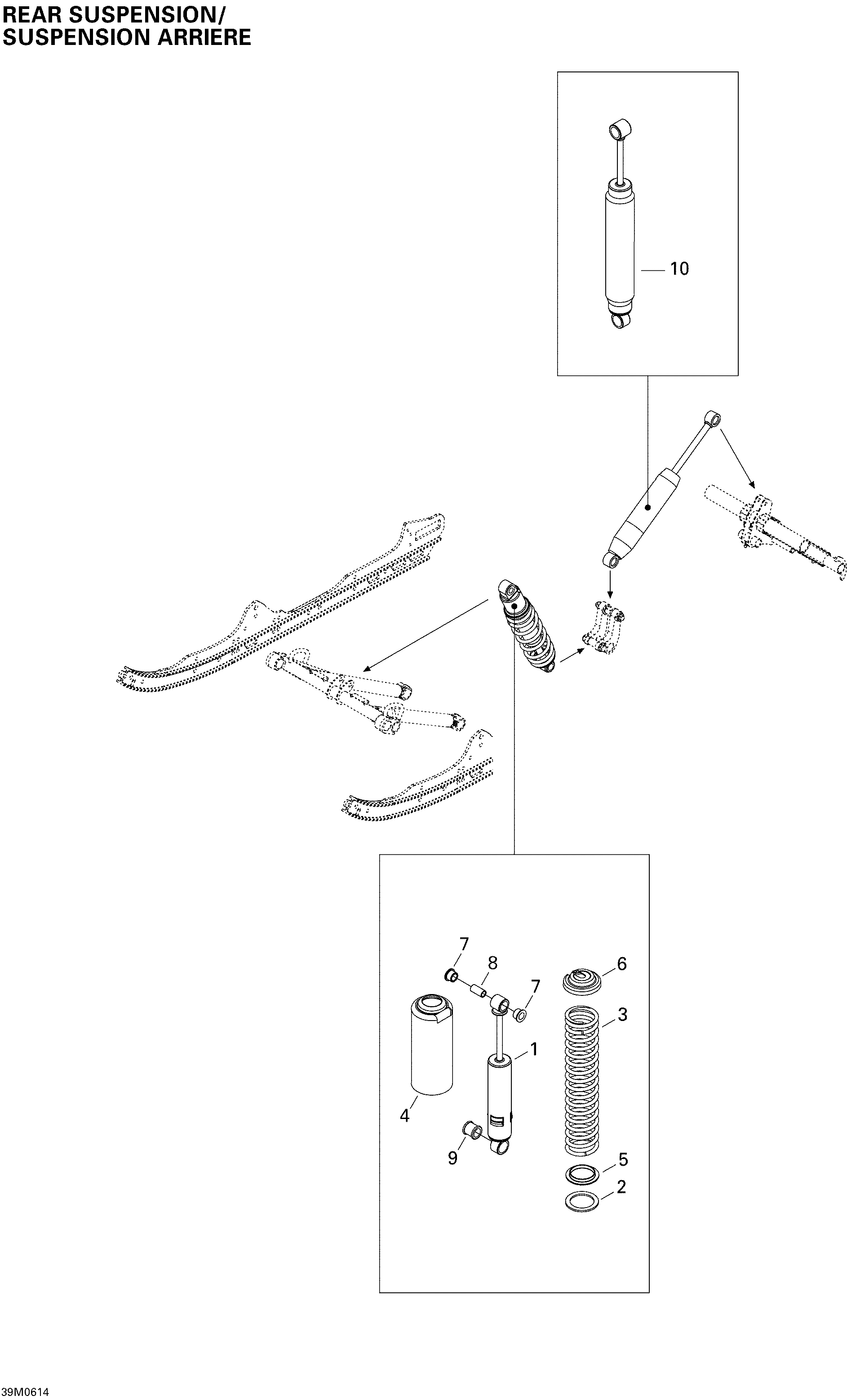

08- Rear Suspension Shocks для BRP Ski-Doo Freestyle 300F - 2006
-
№АртикулНазвание
-
1503190746 Center ShockCenter Shock
-
2503184400 WasherWasher
-
3503191347 SpringSpring
-
4503191126 ProtectorProtector
-
5505071954 Spring GuideSpring Guide
-
6503140600 Spring StopperSpring Stopper
-
7503189117 CushionCushion
-
8503189282 BushingBushing
-
9503189271 CushionCushion
-
10503190755 Rear ShockRear Shock
