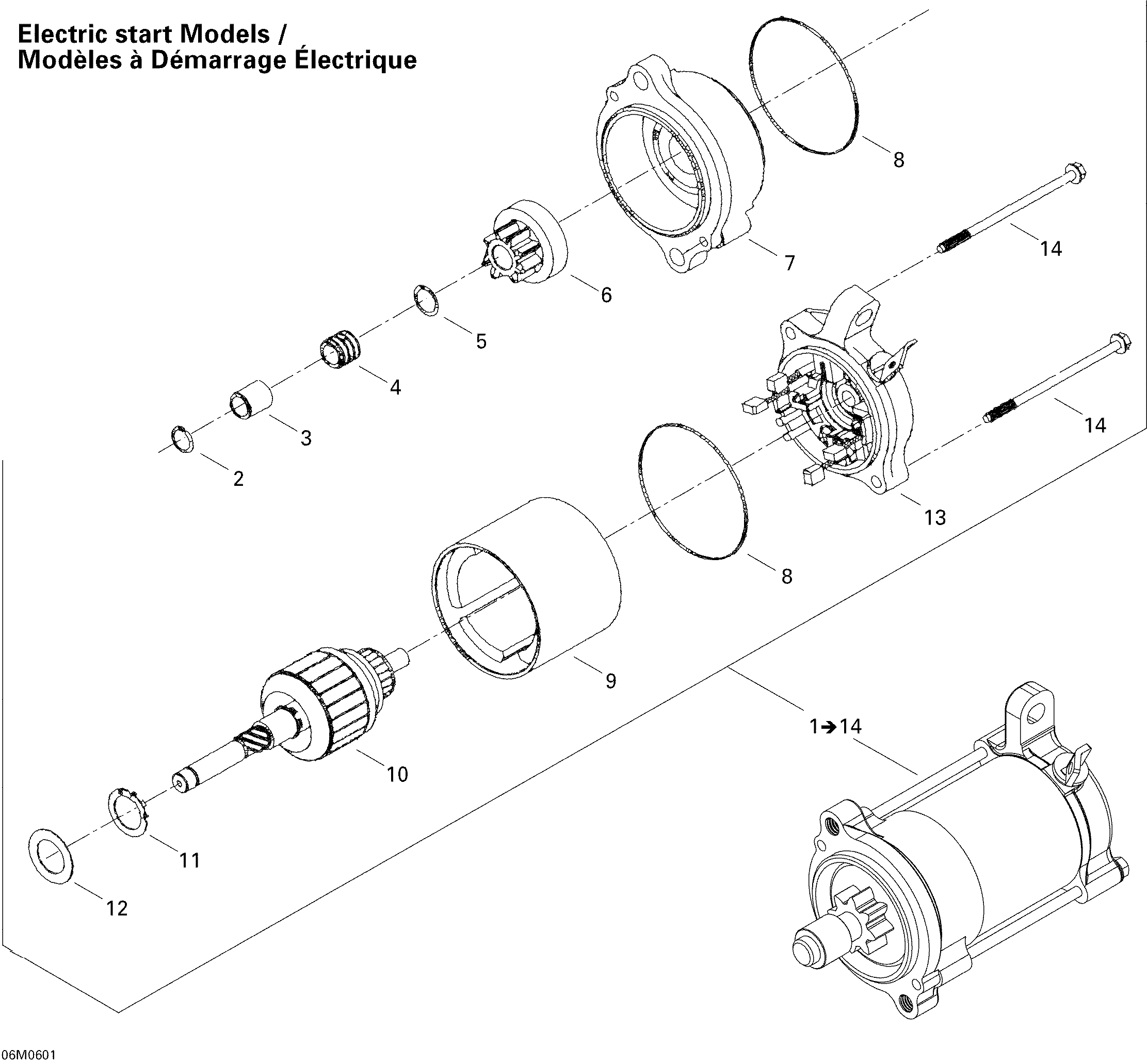

04- Electric Starter для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1515176094 Starter Ass'y. Includes 1 to 14Starter Ass'y. Includes 1 to 14
-
2410207700 Snap RingSnap Ring
-
3410207800 Stop BushingStop Bushing
-
4410207900 SpringSpring
-
5278001105 Washer PlateWasher Plate
-
6410922982 Starter ClutchStarter Clutch
-
7410922983 Starter HousingStarter Housing
-
8410922984 O-ringO-ring
-
9410922985 Starter HousingStarter Housing
-
10410922986 Armature Ass'yArmature Ass'y
-
11410922987 Armature CollarArmature Collar
-
13410922988 Starter HousingStarter Housing
-
14410922989 BoltBolt
