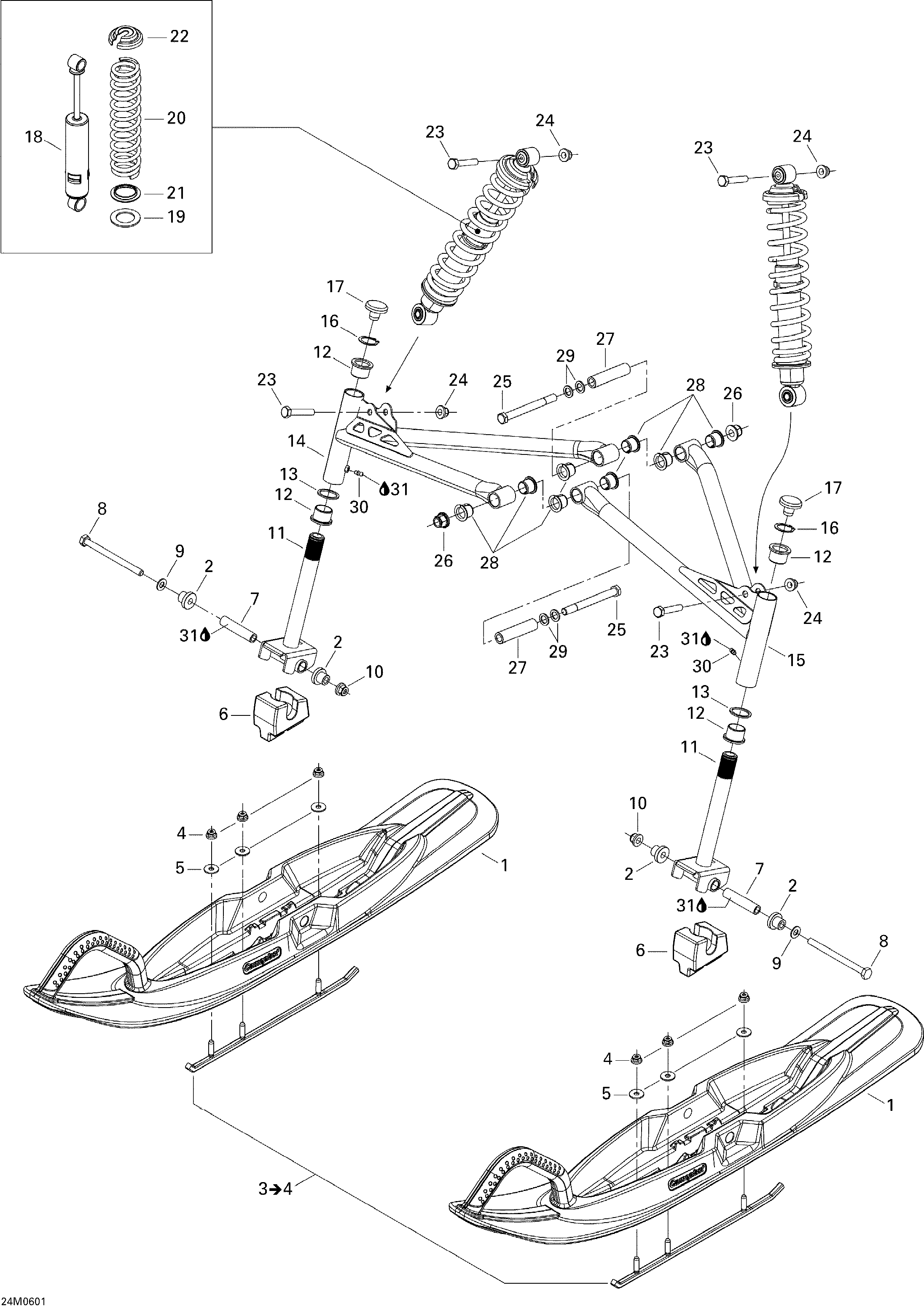

07- Front Suspension And Ski для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1505071718 Liner SkiLiner Ski
-
2505071960 CushionCushion
-
3860512100 Carbide Runner Kit. Includes 3 to 4Carbide Runner Kit. Includes 3 to 4
-
4233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
5234082410 Flat Washer M8Flat Washer M8
-
6505070978 Ski StopperSki Stopper
-
7506133300 SpacerSpacer
-
8230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
9234001410 Flat Washer 10 mmFlat Washer 10 mm
-
10233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
11506151234 Ski LegSki Leg
-
12505070003 CushionCushion
-
13505070004 WasherWasher
-
14505071523 RH Lower ArmRH Lower Arm
-
15505071529 LH Lower ArmLH Lower Arm
-
16371910400 CirclipCirclip
-
17572091300 CapCap
-
18505071485 Front ShockFront Shock
-
19503184400 WasherWasher
-
20505071461 SpringSpring
-
21505071954 Spring GuideSpring Guide
-
22503140600 Spring StopperSpring Stopper
-
23207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
24233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
25230022044 Hex Screw M12 X 120Hex Screw M12 X 120
-
26233221414 Elastic Flange Nut M12Elastic Flange Nut M12
-
27505071366 BushingBushing
-
28505071639 BushingBushing
-
29503189276 WasherWasher
-
30408200700 Grease FittingGrease Fitting
-
31219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
