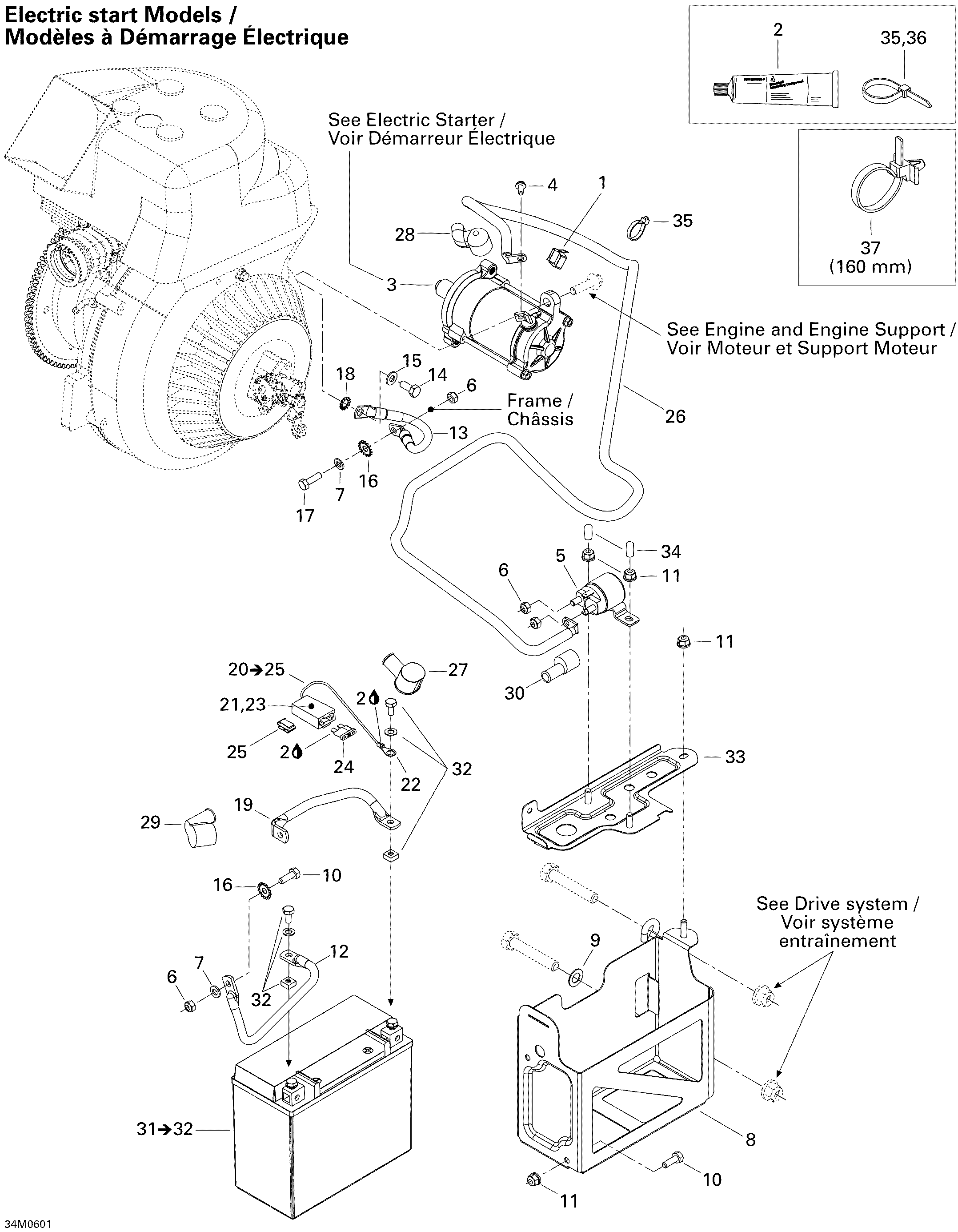

10- Battery And Starter для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1414227300 ClipClip
-
2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
3515176094 Starter Ass'yStarter Ass'y
-
4207551044 Flanged Hex Screw M5 X 10Flanged Hex Screw M5 X 10
-
5515176011 Starter RelayStarter Relay
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7234061410 Flat Washer M6Flat Washer M6
-
8515176230 Battery Support BlackBattery Support Black
-
9503175800 WasherWasher
-
10207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
11233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12515175749 Ground WireGround Wire
-
13515176318 Ground WireGround Wire
-
14207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
15234081410 Flat Washer 8 mmFlat Washer 8 mm
-
16250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
17207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
18234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
19515175904 Battery WireBattery Wire
-
20515175489 Battery Fuse Wire. Includes 20 to 25Battery Fuse Wire. Includes 20 to 25
-
21409004200 Female TerminalFemale Terminal
-
22278000992 Ring TerminalRing Terminal
-
23409004000 Fuse HolderFuse Holder
-
24410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
25409014200 ClipClip
-
26515176298 Battery WireBattery Wire
-
27570151000 Protection CapProtection Cap
-
28278000020 Protection CapProtection Cap
-
29570064200 Protection CapProtection Cap
-
30515175919 Protector CapProtector Cap
-
31410301203 Battery, 18 Amperes. Includes 31 to 32Battery, 18 Amperes. Includes 31 to 32
-
32295500849 Battery Fastener KitBattery Fastener Kit
-
33515175735 Battery StripBattery Strip
-
34515176141 CapCap
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37293750009 Tie Rap 160 mmTie Rap 160 mm
