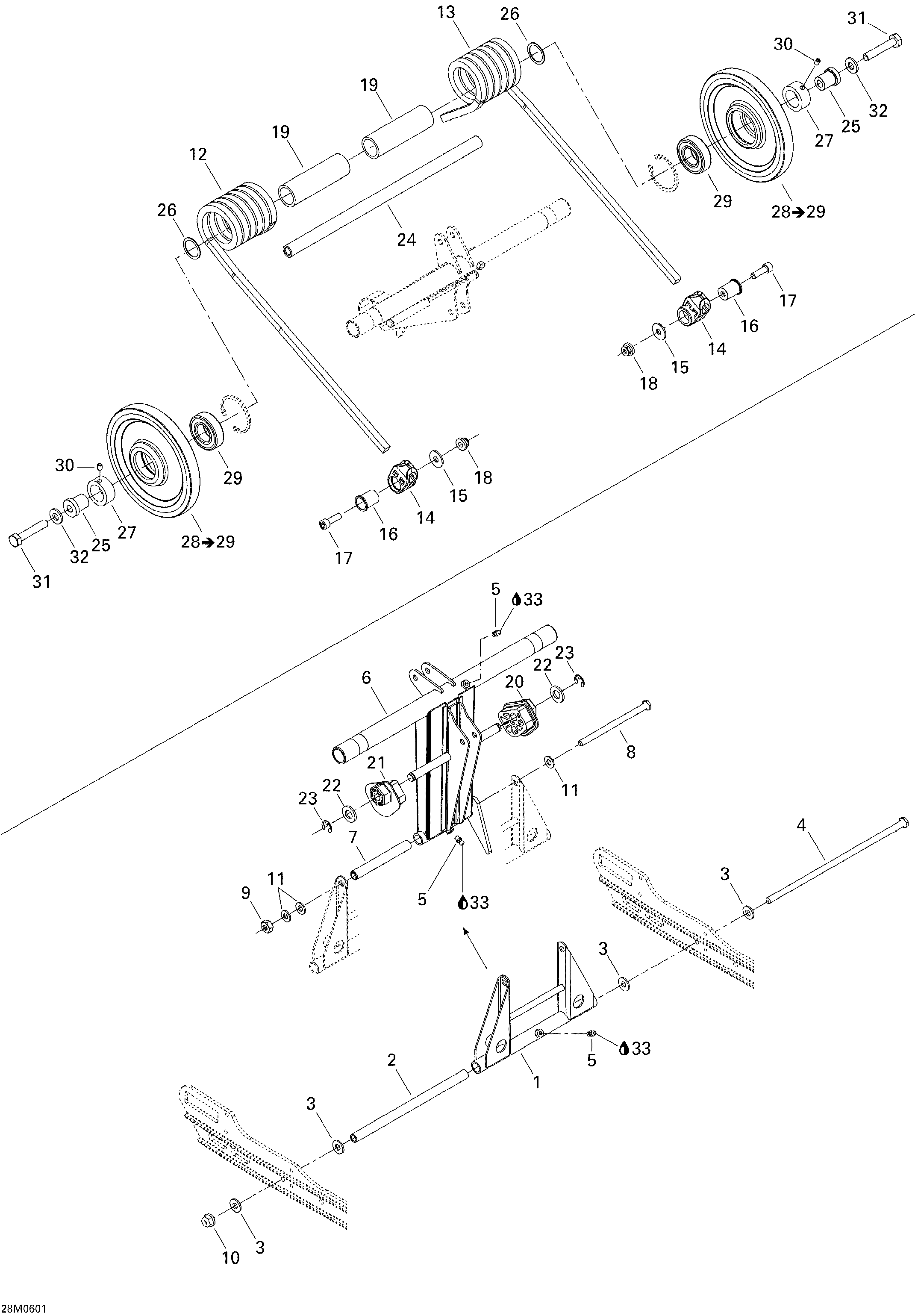

08- Rear Arm для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1503189793 Pivot ArmPivot Arm
-
2503189156 Pivot Arm AxlePivot Arm Axle
-
3503189157 WasherWasher
-
4732601198 Long Bolt M8Long Bolt M8
-
5408200700 Grease FittingGrease Fitting
-
6503191057 Rear ArmRear Arm
-
7503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
8732601197 Short Bolt M8Short Bolt M8
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11234081410 Flat Washer 8 mmFlat Washer 8 mm
-
12503190712 RH SpringRH Spring
-
12503190716 RH Spring. EuropeRH Spring. Europe
-
13503190714 LH SpringLH Spring
-
13503190718 LH Spring. EuropeLH Spring. Europe
-
14503190583 Spring SupportSpring Support
-
15234082410 Flat Washer M8Flat Washer M8
-
16503190754 Retainer CushionRetainer Cushion
-
17205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
18233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19503190333 BushingBushing
-
20503190023 LH Cam AdjusterLH Cam Adjuster
-
21503190022 RH Cam AdjusterRH Cam Adjuster
-
22234021410 Flat Washer 12 mmFlat Washer 12 mm
-
23293370013 E-CirclipE-Circlip
-
24503190387 ShaftShaft
-
25503190422 BushingBushing
-
26503190328 WasherWasher
-
27503168800 Retaining RingRetaining Ring
-
28503190816 Wheel 165 Ass'y. Includes 28 to 29Wheel 165 Ass'y. Includes 28 to 29
-
29503190795 Ball BearingBall Bearing
-
30206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
31207205544 Hex Screw M10 X 55, Scotch GripHex Screw M10 X 55, Scotch Grip
-
32732900049 WasherWasher
-
33219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
