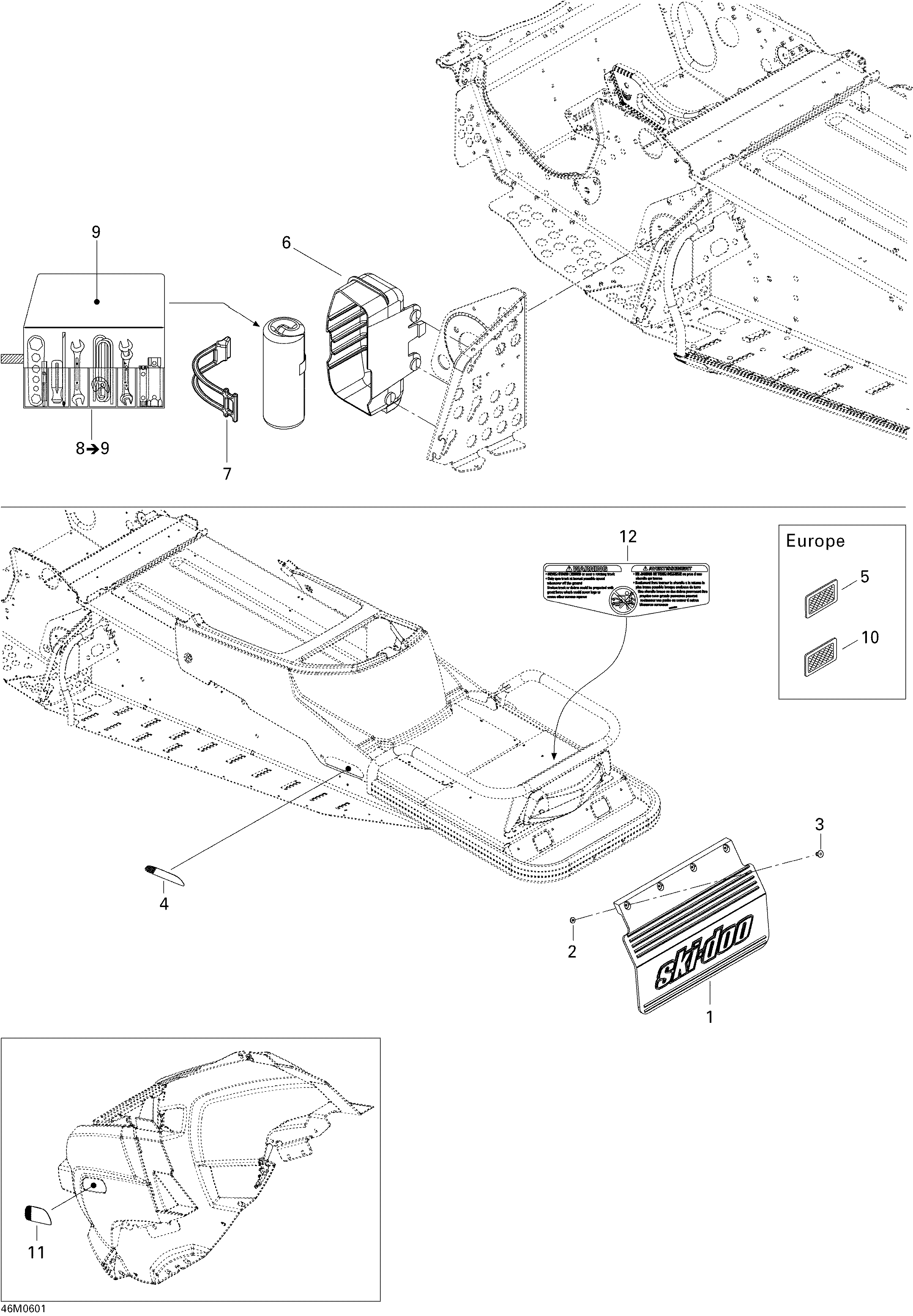

09- Utilities для BRP Ski-Doo Tundra 300F - 2006
-
№АртикулНазвание
-
1520000532 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3293150100 Pop Rivet, 3/16''Pop Rivet, 3/16''
-
4520000523 ReflectorReflector
-
4520000525 Reflector. EuropeReflector. Europe
-
5520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
6520000322 TrunkTrunk
-
7520000528 LatchLatch
-
8529035881 Tool Kit. Includes 8 to 9Tool Kit. Includes 8 to 9
-
9520000047 Tool BagTool Bag
-
10415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
11520000525 ReflectorReflector
-
12516003034 Track Security Warning LabelTrack Security Warning Label
